TH-FCM34-M - Post-Mountable Ø3.4 mm Clamp, M4 Tap

Fosco Connect Part No.: TH-FCM34-M

  • $ 45.00 or

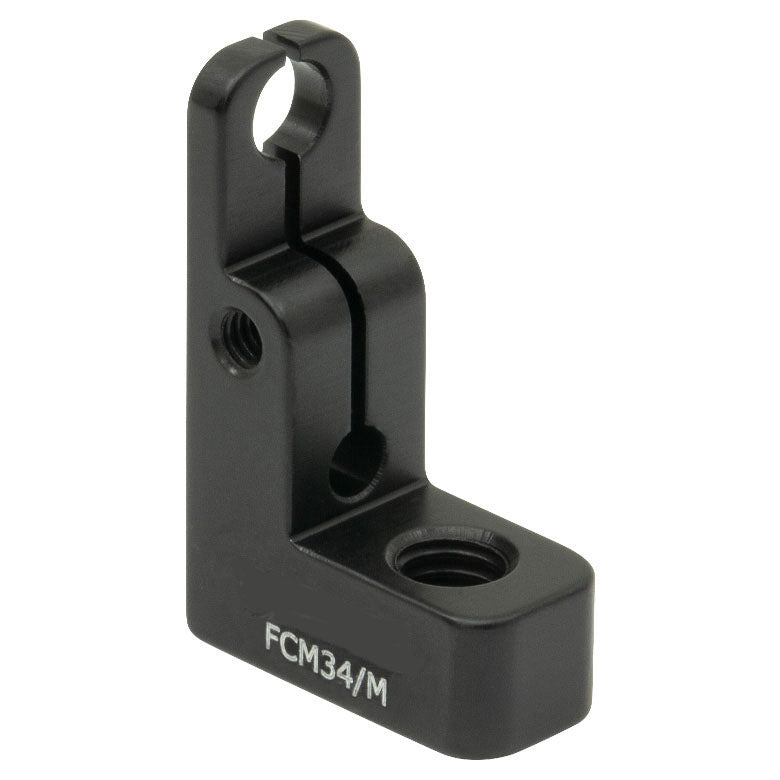

TH-FCM34-M - Post-Mountable Ø3.4 mm Clamp, M4 Tap

Product Specification Sheet

  • Compact Flexure Clamps for Ø1.25 mm, Ø2.5 mm, Ø3.2 mm, or Ø3.4 mm Ferrules
  • 8-32 (M4) Tapped Mounting Hole
  • Compatible with Ø 1/2" Optical Posts

These Post-Mountable Ferrule Clamps allow fiber connectors to be mounted securely and compactly within an experimental setup. See the table below for compatible ferrule diameters and fiber connectors for each clamp. The fiber ferrule is clamped into the flexure mount using a 5/64" (2 mm) hex key. An 8-32 (M4) tapped hole on the bottom of the mount provides compatibility with our Ø1/2" optical posts.

Item # Compatible Component Diameter Compatible Components
THFCM13M 1.25 mm (0.05") Ø1.25 mm Ferrules
THFCMM 2.5 mm (0.10") Ø2.5 mm Ferrules,
FC/PC, FC/APC, SC/PC, and ST®a/PC Connectors
THFCM32M 3.2 mm (0.13") SMA Connectors
THFCM34M 3.4 mm (0.14") GRIN Colimators
