TH-LT110P-B - Collimation Tube with Optic for Ø5.6 and Ø9 mm Laser Diodes, f = 6.24 mm, NA = 0.40, AR Coated: 650 - 1050 nm
TH-LT110P-B - Collimation Tube with Optic for Ø5.6 and Ø9 mm Laser Diodes, f = 6.24 mm, NA = 0.40, AR Coated: 650 - 1050 nm
- Lens Mount with Collimating Optic for our Laser Diode Sockets with Strain Relief Cables
- 13/32"-40 Threaded Retaining Ring Secures Ø5.6 mm or Ø9 mm Laser Diode

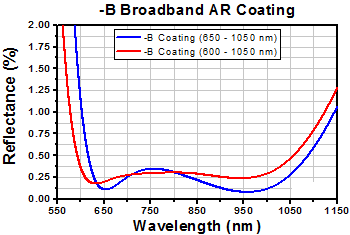

- Aspheric Collimation Optic that is AR Coated for 650 - 1050 nm

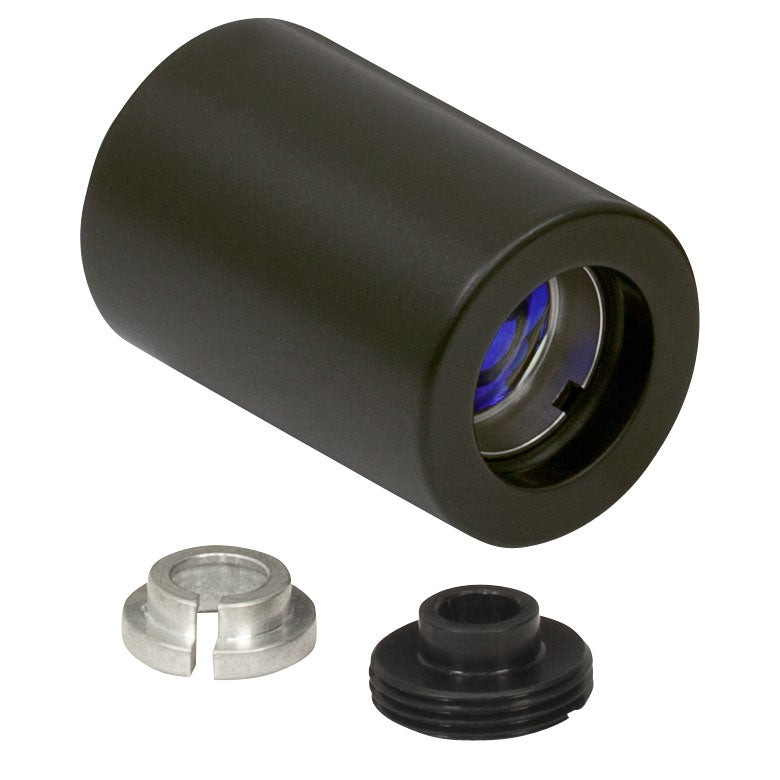

- Includes Main Tube, Optic, Retaining Ring, Rubber O-Ring, and Adapter for Ø5.6 mm Diode Packages
- AR Coating Range 650 - 1050 nm
- Effective Focal Length 6.24 mm
- Numerical Aperture 0.40
- Package Length 0.85" (22 mm)
