TH-LT220P-B - Collimation Tube with Optic for Ø5.6 and Ø9 mm Laser Diodes, f = 11.0 mm, NA = 0.26, AR Coated: 650 - 1050 nm
TH-LT220P-B - Collimation Tube with Optic for Ø5.6 and Ø9 mm Laser Diodes, f = 11.0 mm, NA = 0.26, AR Coated: 650 - 1050 nm
- Lens Mount with Collimating Optic for our Laser Diode Sockets with Strain Relief Cables
- 13/32"-40 Threaded Retaining Ring Secures Ø5.6 mm or Ø9 mm Laser Diode
- Aspheric Collimation Optic that is AR Coated for 650 - 1050 nm

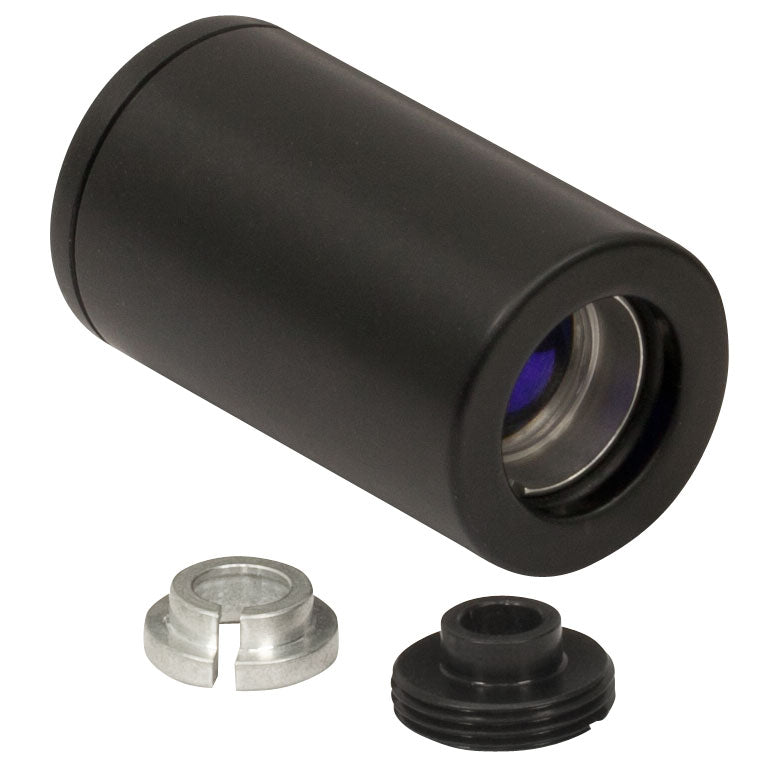

- Includes Main Tube, Optic, Retaining Ring, Rubber O-Ring, and Adapter for Ø5.6 mm Diode Packages

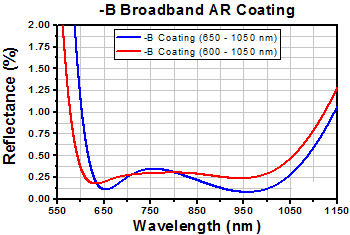

- AR Coating Range 650 - 1050 nm
- Effective Focal Length 11.0 mm
- Numerical Aperture 0.26
- Package Length 1.00" (25 mm)
