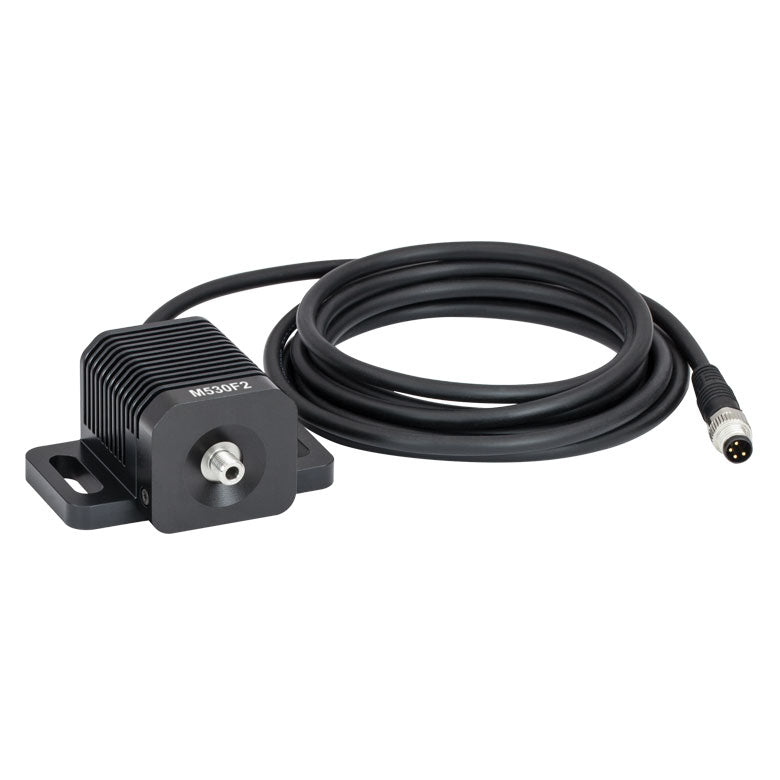

TH-M530F2 - 530 nm, 6.8 mW (Min) Fiber-Coupled LED, 1000 mA, SMA
TH-M530F2 - 530 nm, 6.8 mW (Min) Fiber-Coupled LED, 1000 mA, SMA
Wavelength 530nm
Typical Opsin C1V1, VChR1
Output Power 9.6 mW
Color Green
Typical Ø200 µm Core Fiber Output Power 3.2 mW
Minimum Ø400 µm Core Fiber Output Power 6.8 mW
Typical Ø400 µm Core Fiber Output Power 9.6 mW
Maximum Current (CW) 1000 mA
Forward Voltage 3.1 V
Bandwidth (FWHM) 30 nm
Typical Lifetime >50 000 h
