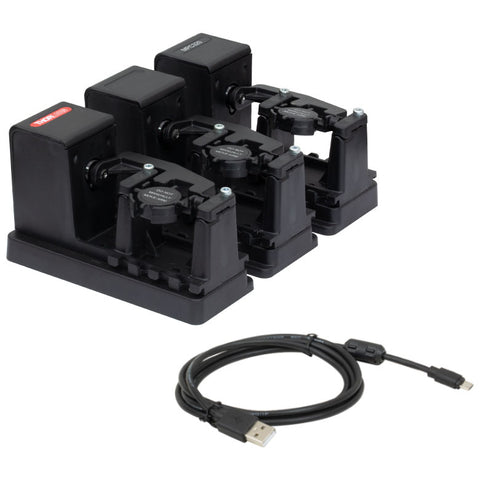

TH-MPC320 - Motorized Fiber Polarization Controller for Ø900 µm Jacket Fiber, 3 Paddles, Ø18 mm
TH-MPC320 - Motorized Fiber Polarization Controller for Ø900 µm Jacket Fiber, 3 Paddles, Ø18 mm
- Polarization Over Full Poincaré Sphere
- Motorized Paddle Rotation from 0° to 170°
- Compatible with Ø900 µm Jacketed Fiber
- Operate Remotely Using Kinesis® Software via USB
| Item # | TH-MPC220 | TH-MPC320 |
|---|---|---|
| Paddle Specifications | ||
| Number of Paddles | 2 | 3 |
| Loop Diameter (Ø900 µm Jacketed Fiber) | 18 mm | |
| Paddle Rotation | 0 to 170° | |
| Compatible Fiber | Ø900 µm Jacket Single Mode Fibers and Patch Cables | |
| Maximum Number of Loops per Paddle | 4 | |
| Minimum Fiber Length | 75 cm for 1 Loop per Paddle 110 cm for 4 Loops per Paddle |
95 cm for 1 Loop per Paddle 155 cm for 4 Loops per Paddle |
| Minimum Step Size | 0.12° | |
| Maximum Rotation Speed | 400°/sec | |
| Bidirectional Repeatability | 2° | |
| Unit Dimensions (L x W x H) | 85.2 mm x 115.7 mm x 61.0 mm (3.35" x 4.55" x 2.40") |
143.2 mm x 101.4 mm x 61.0 mm (5.64" x 3.99" x 2.40") |
| Footprint for Full Paddle Rotation (L x W x H) | 90.1 mm x 115.7 mm x 62.0 mm (3.55" x 3.99" x 2.44") |
145.3 mm x 101.4 mm x 62.0 mm (5.72" x 3.99" x 2.44") |
| Operating Temperature | -20° to +60°C | |
| Construction Material (Controller Body) | Black Acrylonitrile Butadiene Styrene (ABS) | |
| Motor Specifications | ||
| Motor Type | DC Motor | |
| Motor Drive Voltage | 5 V | |
| CPU Connection | Micro USB Type B (Cable Included) | |
