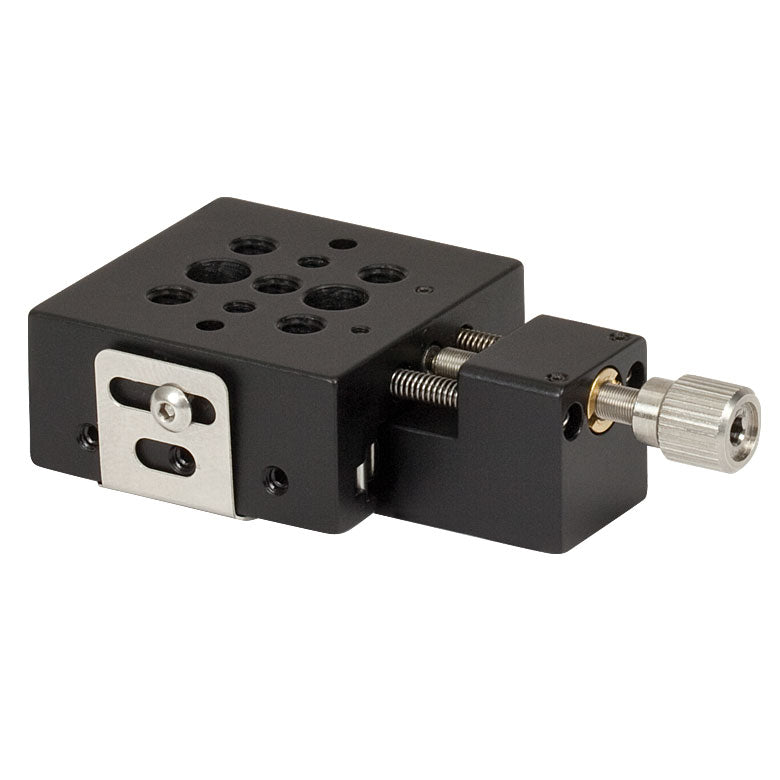

TH-MS1 - 1/4" Travel Single-Axis Translation Stage with End-Mounted Adjuster Screw, 8-32 Taps
TH-MS1 - 1/4" Travel Single-Axis Translation Stage with End-Mounted Adjuster Screw, 8-32 Taps
- End-Mounted Adjustment Screw
- Lockable

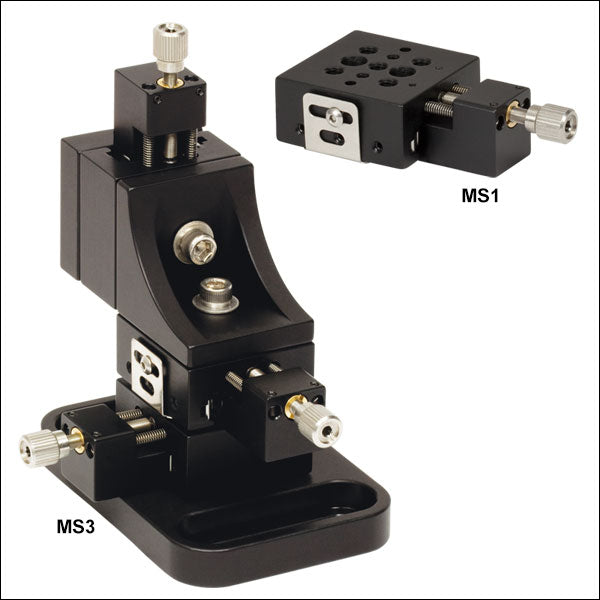

- XYZ Configurable
| Item # | TH-MS1 & TH-MS3 |
|---|---|
| Drive Type | M3 x 0.25 Fine-Adjustment Screw; Provides 250 µm/rev |
| Stage Height | 0.60" (15.2 mm) |
| Horizontal Load | 7 lbs (3.2 kg) (Max) |
| Vertical Load | 2.5 lbs (1.1 kg) (Max) |
| Maximum Stage Travel | 1/4" (6.4 mm) |
| Orthogonality | <2 mrad (with Alignment Pins) |
| Bearing Type | Ball Bearing |
| Material | Aluminum with Hardened Steel Dowel Pins |
