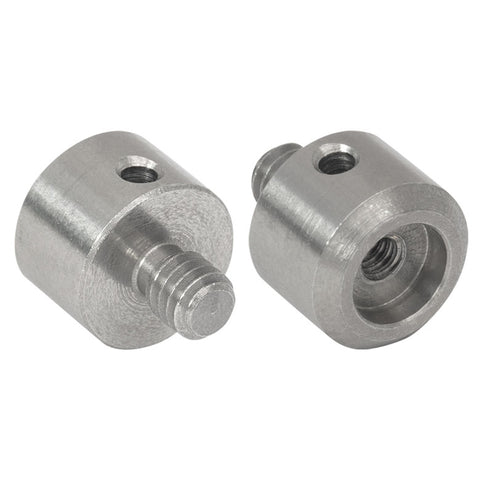

TH-MSA25 - Mini-Series Adapter with External 1/4"-20 Threads and Internal 4-40 Threads
TH-MSA25 - Mini-Series Adapter with External 1/4"-20 Threads and Internal 4-40 Threads
| Item # | Thread A (Internal) |
Thread B (External) |
Length C | Outer Diametera |
|---|---|---|---|---|
| Imperial Thread Adapters | ||||
| TH-MSA8 | 4-40 | 8-32 | 0.50" (12.7 mm) | 0.40" (10.2 mm) |
| TH-MSA25 | 4-40 | 1/4"-20 | 0.55" (14.0 mm) | 0.50" (12.7 mm) |
| TH-AS6E8E | 6-32 | 8-32 | 0.56" (14.2 mm) | 0.24" (6.0 mm) |
| TH-AS8E25Eb | 8-32 | 1/4"-20 | 0.68" (17.3 mm) | 0.40" (10.2 mm) |
| TH-AS25E8Eb | 1/4"-20 | 8-32 | 0.61" (15.4 mm) | 0.40" (10.2 mm) |
| Imperial/Metric Thread Adapters | ||||
| TH-AS8E4M | 8-32 | M4 x 0.7 | 0.56" (14.2 mm) | 0.25" (6.4 mm) |
| TH-AS8E6M | 8-32 | M6 x 1.0 | 0.68" (17.3 mm) | 0.40" (10.2 mm) |
| TH-AS25E4M | 1/4"-20 | M4 x 0.7 | 0.61" (15.4 mm) | 0.40" (10.2 mm) |
| TH-AS25E6M | 1/4"-20 | M6 x 1.0 | 0.63" (16.0 mm) | 0.38" (9.5 mm) |
| TH-AS4M8E | M4 x 0.7 | 8-32 | 0.56" (14.2 mm) | 0.25" (6.4 mm) |
| TH-AS4M25E | M4 x 0.7 | 1/4"-20 | 0.68" (17.3 mm) | 0.40" (10.2 mm) |
| TH-AS6M8E | M6 x 1.0 | 8-32 | 0.61" (15.4 mm) | 0.40" (10.2 mm) |
| TH-AS6M25E | M6 x 1.0 | 1/4"-20 | 0.63" (16.0 mm) | 0.38" (9.5 mm) |
| Metric Thread Adapters | ||||
| TH-MSA4/M | M3 x 0.5 | M4 x 0.7 | 0.50" (12.7 mm) | 0.40" (10.2 mm) |
| TH-MSA6/M | M3 x 0.5 | M6 x 1.0 | 0.55" (14.0 mm) | 0.50" (12.7 mm) |
| TH-AS4M6Mc | M4 x 0.7 | M6 x 1.0 | 0.68" (17.3 mm) | 0.40" (10.2 mm) |
| TH-AS6M4Mc | M6 x 1.0 | M4 x 0.7 | 0.61" (15.4 mm) | 0.40" (10.2 mm) |
