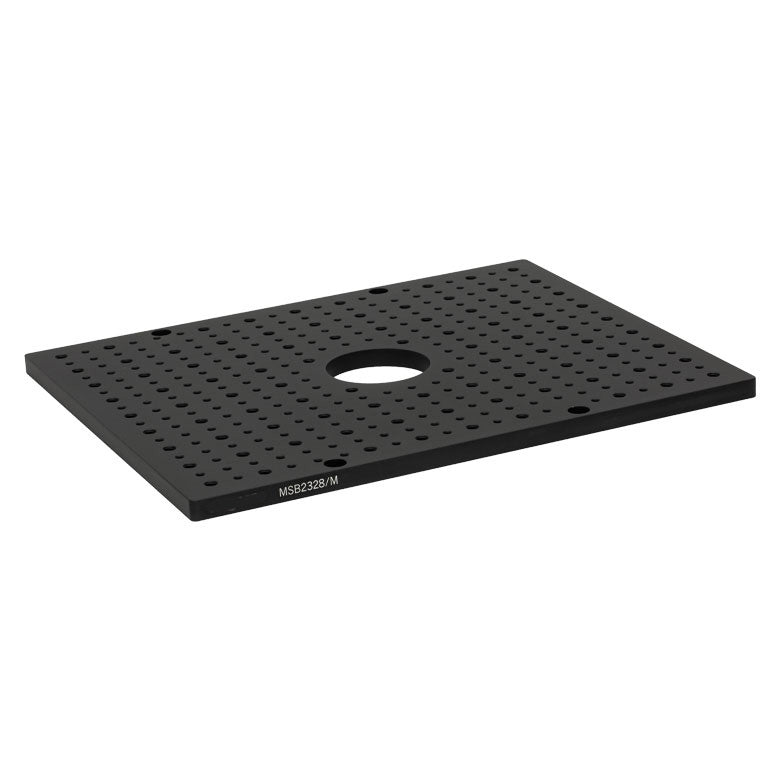

TH-MSB2328-M - Aluminum Breadboard for LCC7201B, 230 mm x 280 mm x 9.5 mm, Ø50 mm Access Hole, M4 and M6 Taps

Product Drawing

Breadboard Specifications

Top Surface Dimensions 230 mm x 280 mm

Breadboard Thickness 9.5 mm

Central Aperture Diameter 50.0 mm

Hole Threading and Spacing M4 Taps with 12.5 mm Spacing and M6 Taps with 25 mm Spacing^a

Distance from Edge to First Hole 15 mm on All Sides

Number of Counterbored Holes Four M5^b

Material Aluminum Plate

Finish Matte Black Anodized

Flatness ±0.010" (0.25 mm) over Entire Surface

• a Note that the 8-32 (M4) and 1/4"-20 (M6) grids overlap.
• b Aligned with Taps in LCC7201B Birefringence Imaging System
• Breadboards Provide Flexible Mounting Platform
• Adapter for Holding Recording Chambers and Slide Holder Inserts
• Slide Holder Insert for Holding Microscope Slides
