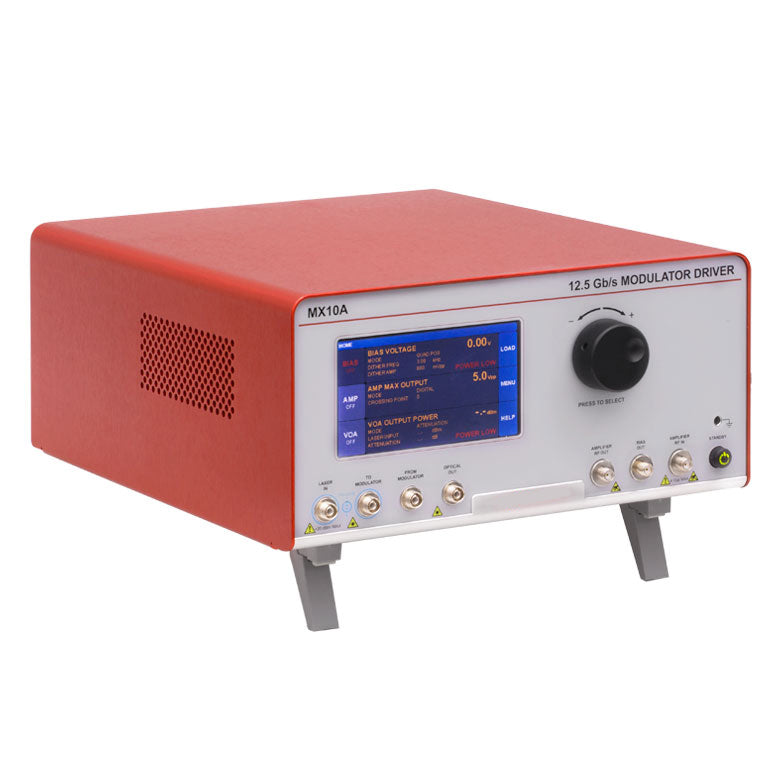

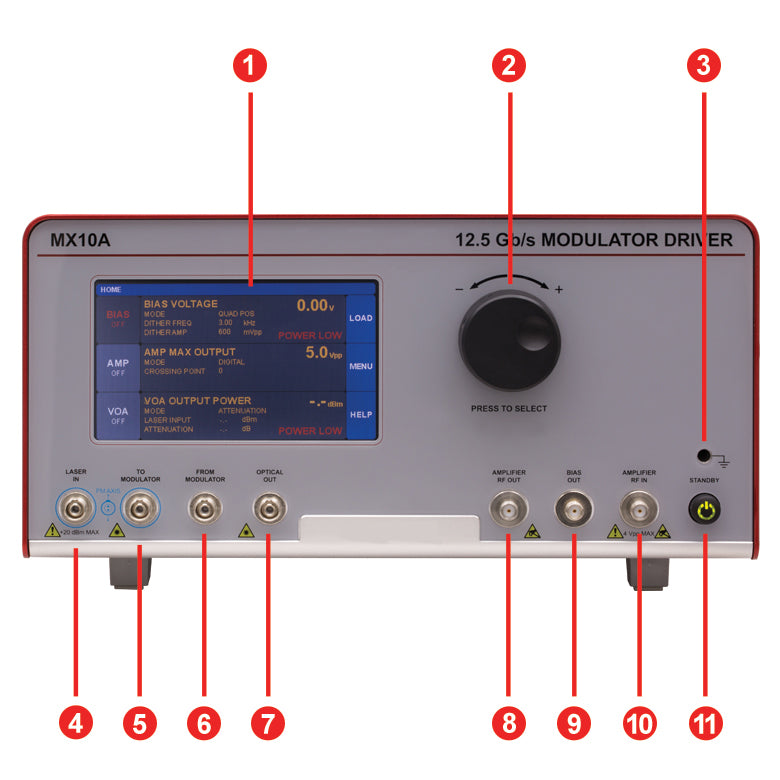

TH-MX10A - Benchtop Modulator Driver, 12.5 Gb/s Max
TH-MX10A - Benchtop Modulator Driver, 12.5 Gb/s Max

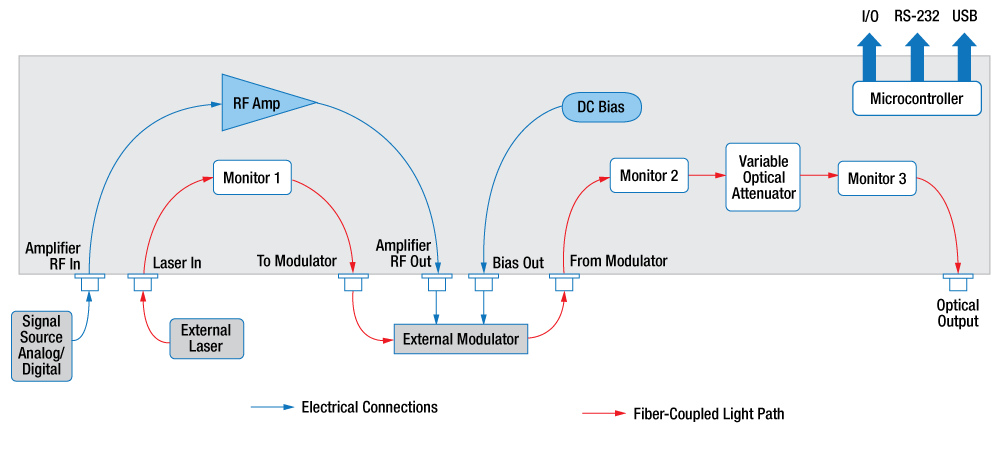

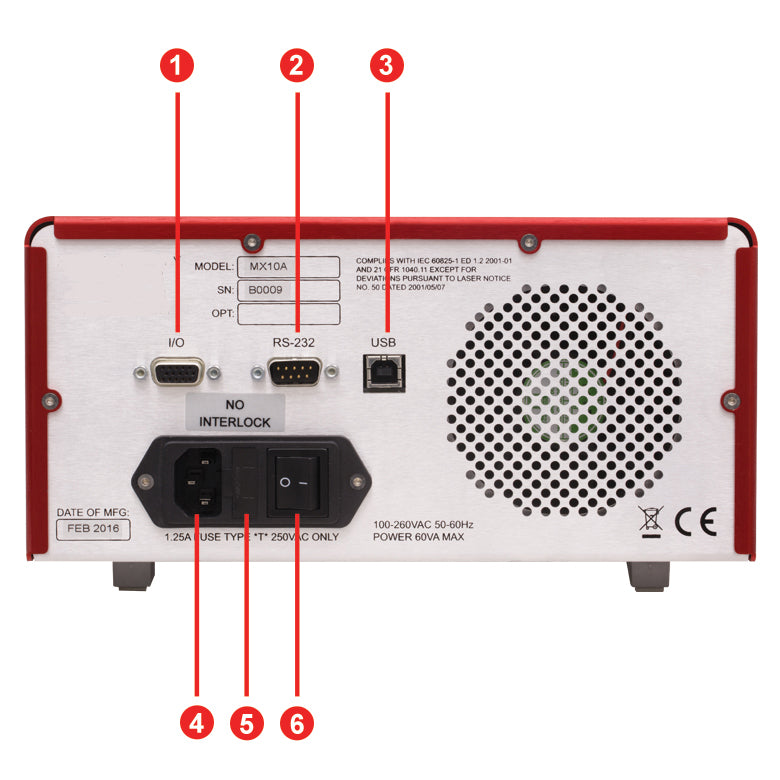

| System | |
| Optical Input Power | 20 dBm (Maximum) 22 dBm (Absolute Max.) |
| External Laser Wavelength Range | 1250 - 1610 nm |
| Power Calibration Points | 1310 nm, 1550 nm, and 1590 nm |
| Maximum Bit Rate (Digital Signal) | 12.5 Gb/s |
| Small Signal Bandwidtha | 7 GHz |
| Low Frequency Cutoff | 100 kHz |
| Amplifier RF Input (Linear Response)b | 100 mV (Maximum) |
| Amplifier RF Input (Digital Mode)c | 400 mV (Typical) 3.5 V (Maximum) 4 V (Absolute Max) |
| Maximum Amplifier DC Input | ±15 V |
| Maximum Bias Voltage to Modulator | ±10 V (≥50 Ω Input Impedance) |
| Internal Fiber | PM Ports: PM PANDA-Style Fiber SM Port: SMF-28-Compatible Fiber |
| Fiber Connectors | FC/PC, 2.0 mm Narrow Key |
| Electrical Connectors | SMA Female |
| Internal Amplifier | |
| Rise/Fall Timed | 35 ps |
| RF Amplifier Gain | 34 dB |
| RF Amplifier Maximum Output Swing | 3 V - 7 V (Adjustable) |
| Electrical Return Losse | -10 dB (Typical) |
| Internal Control | |
| Power Monitor Accuracy | ±0.5 dBm at Power Calibration Points |
| Power Monitor Resolution | 0.01 dBm |
| Power Monitor Insertion Loss (Typical) | 0.1 dB per Monitor |
| VOA Insertion Loss (Typical) | 0.4 dB |
| VOA Attenuation | 20 dB (Max) |
| VOA Response Time | 1 s |
| Power and Environmental Specifications | ||
|---|---|---|
| Parameter | Min | Max |
| Main AC Voltage | 100 VAC | 250 VAC |
| Power Consumption | - | 60 VA |
| Line Frequency | 50 Hz | 60 Hz |
| Operating Temperature | 10 °C | 40 °C |
| Storage Temperature | 0 °C | 50 °C |
| Humiditya | 5% Relative Humidity | 85% Relative Humidity |
