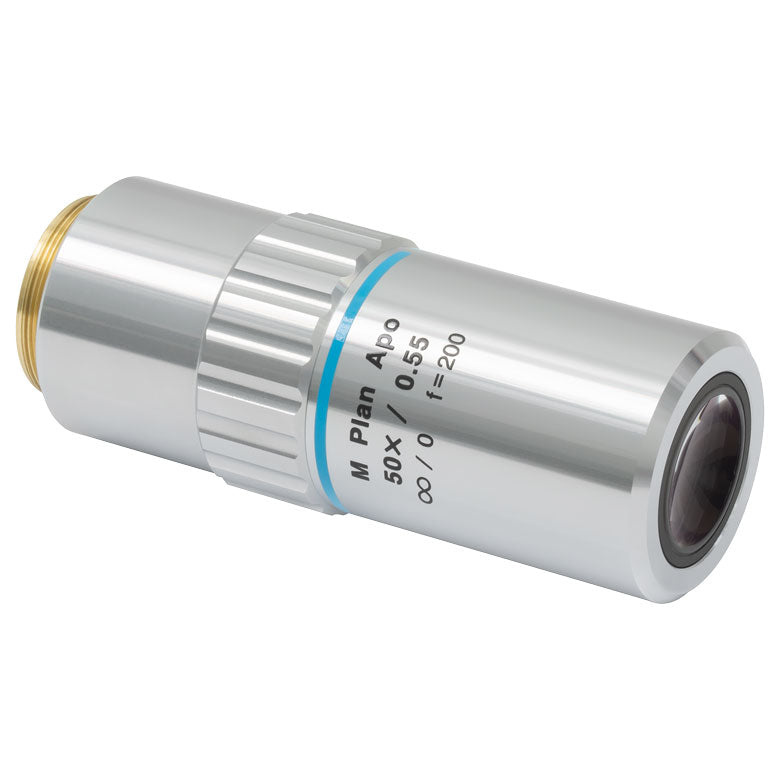

TH-MY50X-805 - 50X Mitutoyo Plan Apochromat Objective, 436 - 656 nm, 0.55 NA, 13 mm WD
TH-MY50X-805 - 50X Mitutoyo Plan Apochromat Objective, 436 - 656 nm, 0.55 NA, 13 mm WD
- Long Working Distance
- Infinity-Corrected Plan Apochromat Design
- M26 x 0.706 Threading
- Designed for a Tube Lens Focal Length of 200 mm
- 95 mm Parfocal Length

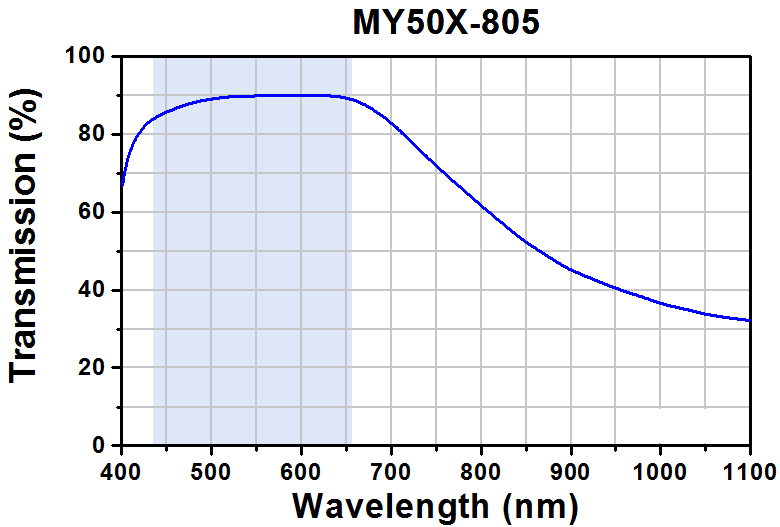

Wavelength Range 436 - 656 nm
Magnification 50X
Working Distance 13.0 mm
Effective Focal Length 4 mm
Numerical Aperture 0.55
Entrance Pupil Diameter 4.4 mm
Resolution 0.6 µm
Optical Field Number 24
Parfocal Length 95 mm
Cover Glass Thickness 0 mm
AR Coating Reflectance Proprietary
Objective Threading M26 x 0.706; 5 mm Depth
