TH-N25X-APO-MP - 25X Nikon CFI APO LWD Objective, 380 - 1050 nm, 1.10 NA, 2.0 mm WD

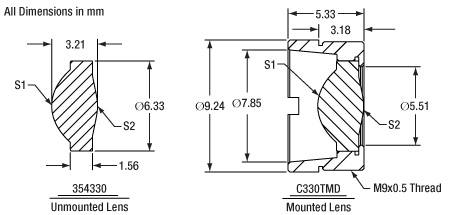

Product Drawing

• Adjustable Lens Mount with Collimating Optic for our LD Sockets with Strain Relief Cables (Sold Below)
• 13/32"-40 Threaded Retaining Ring Secures Ø5.6 mm or Ø9 mm Laser Diode
• Aspheric Collimation Optic with One of Three Broadband AR Coatings:
  • A Coating: 350 - 700 nm
  • B Coating: 600 - 1050 nm
  • C Coating: 1050 - 1700 nm
• Rotating Cap with Locking Ring Provides 2.5 mm (0.1") of Lens Travel for an Adjustable Focus
• Includes Main Tube with Mounted Optic, Retaining Ring, and Adapter Kit for Ø5.6 mm Diode Packages
• AR Coating Range 600 - 1050 nm

• Effective Focal Length 3.1 mm
• Numerical Aperture 0.68
• Minimum Package Length 0.87" (22 mm)
