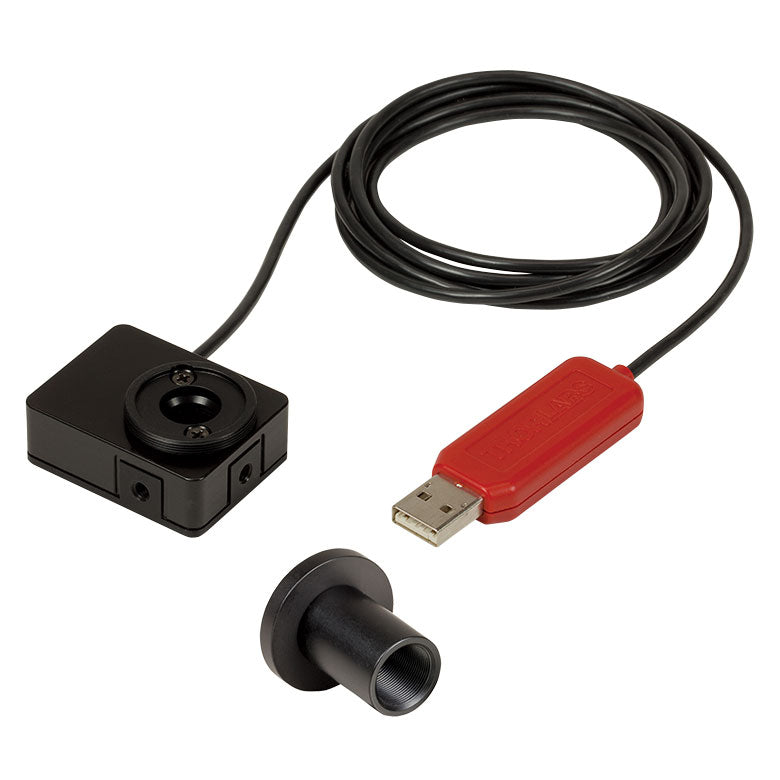

TH-PM16-401 - USB Power Meter, Thermal Sensor, 0.19 - 20 µm, 1 W Max
| Detector Type | Thermal Surface Absorber (Thermopile) with Background Compensation |
| Wavelength Range | 190 nm - 20 µm |
| Optical Power Range | 10 µW - 1 W (3 Wb) |
| Max Optical Power Density | 500 W/cm² (Avg.) |
| Aperture Size | Ø10 mm (Ø0.39") |
| Resolution | 1 µW |
| Sensor Coating | Black Broadband Coating |
|
Sensor Housing Dimensions |
(1.69" x 1.30" x 0.59") |
| Post Mounting | Universal 8-32 / M4 Taps (Post Not Included) |
| 30 mm Cage Mounting | - |
| Aperture Threads | - |
| Removable Heat Sink | - |
| Accessories | Externally SM1-Threaded Adapter Light Shield, with Internal SM05 Threading |
