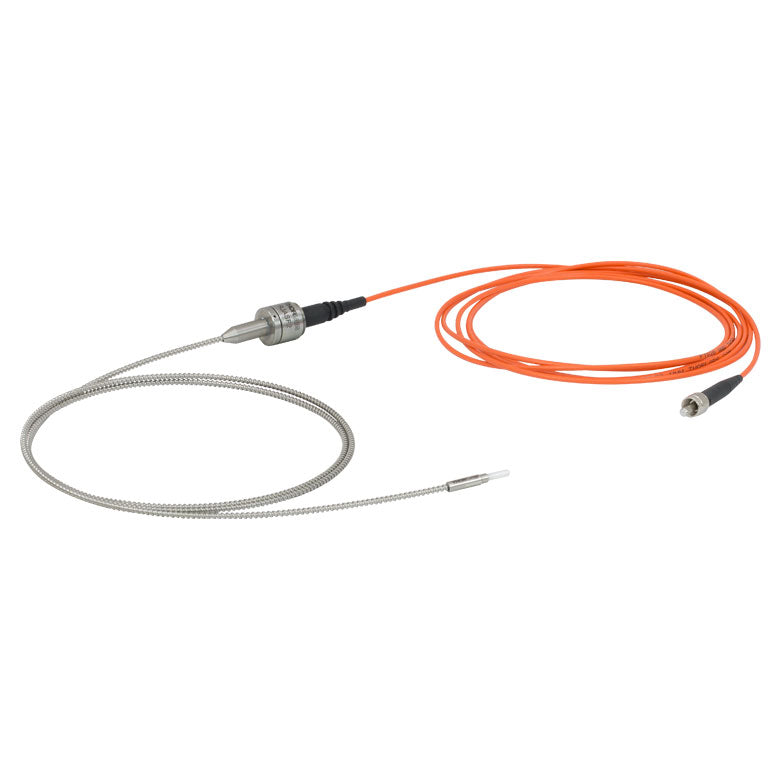

TH-RJASF2 - SMA to Ø2.5 mm Ferrule Rotary Joint Patch Cable, Ø200 µm Core, Armored, 3 m Long
TH-RJASF2 - SMA to Ø2.5 mm Ferrule Rotary Joint Patch Cable, Ø200 µm Core, Armored, 3 m Long
- Stainless Steel Tubing Ø2.3 mm Provides Maximum Protection from the Specimen
- Patch Cable Length: 3 m
- Fiber Type 0.39 NA, Ø200 µm Core Multimode Optical Fiber, Low OH for 400 - 2200 nm, TECS Clad

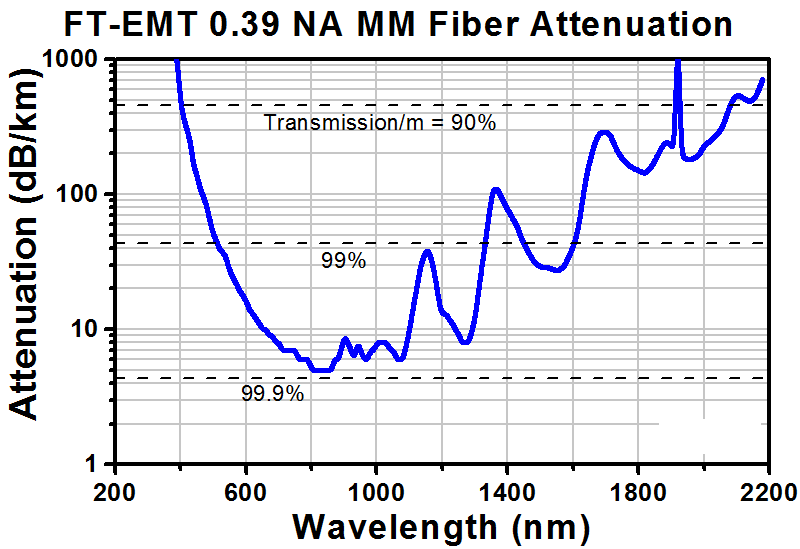

- Wavelength Range (Click for Plot) 400-2200 NM
- Core Diameter 200 µm ± 5 µm
- NA 0.39
- Transmission through Rotary Jointa >63% (<2.0 dB); ±8% (±0.4 dB) Variation During Rotation
- Cable Mass 365 g
- Ferrule Diameter 2.5 mm
- Ferrule Material Ceramic (Zirconia)
