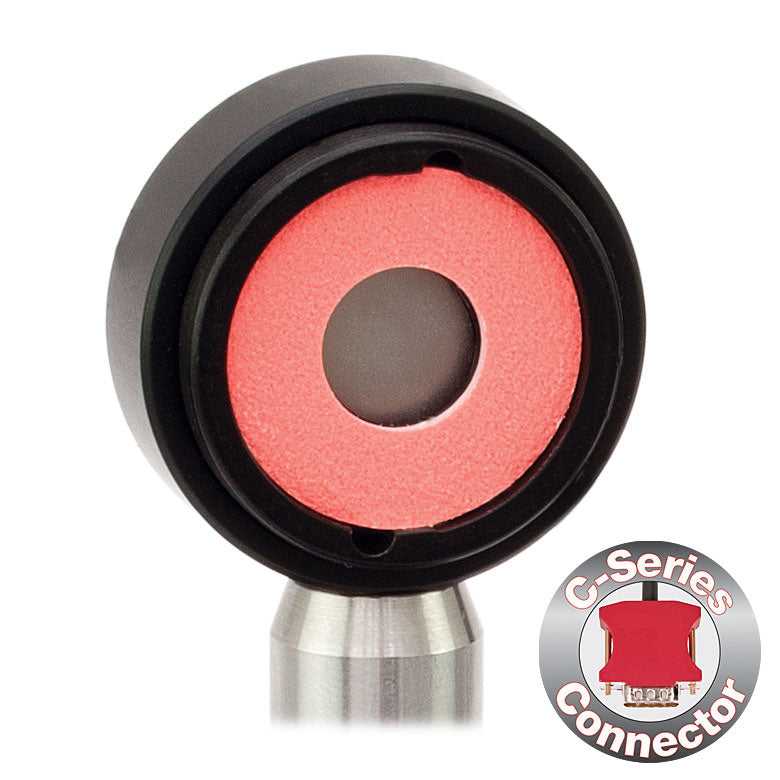

TH-S120C - Standard Photodiode Power Sensor, Si, 400 - 1100 nm, 50 mW

• For General Purpose Optical Power Measurements
• Integrated Viewing Target for Easy Sensor Alignment
• Ø9.5 mm Sensor Aperture
• Sensor, Protective Cap, and IR Target Included
• Aperture Size Ø9.5 mm
• Wavelength Range 400 - 1100 nm
• Power Range  50 nW - 50 mW

• Detector Type Si Photodiode
• Linearity ±0.5%
• Resolution^c 1 nW
• 981 - 1100 nm)Measurement Uncertainty^d ±3% (440 - 980 nm)
                                                                       ±5% (400 - 439 nm)
                                                                      ±7% (981 - 1100 nm)


• Coating/Diffuser Reflective ND (OD1.5)^f
• Head Temperature Measurement NTC Thermistor 4.7 kΩ
• Housing Dimensions Ø30.5 mm x 12.7 mm
• Active Detector Area 9.7 mm x 9.7 mm
• Cable Length 1.5 m
• Mounting Thread^f,g,h Universal 8-32 / M4 Tap, Post Not Included
• Aperture Thread External SM1 (1.035"-40)

Product Drawing
