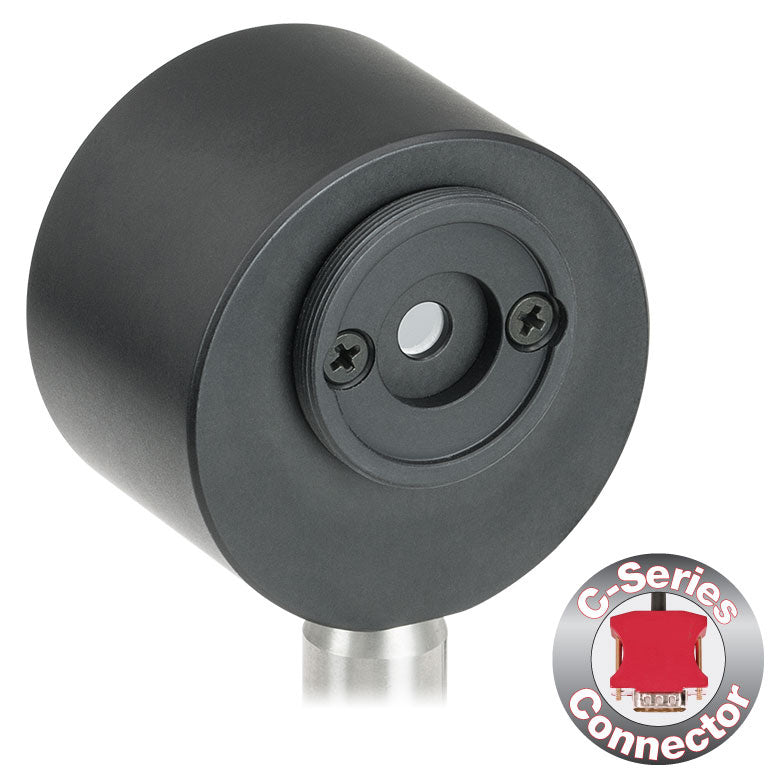

TH-S144C - Integrating Sphere Photodiode Power Sensor, InGaAs, 800 - 1700 nm, 500 mW

Aperture Size  Ø5 mm

Wavelength Range 800 - 1700 nm

Power Range 1 µW - 500 mW

Detector Type InGaAs Photodiode

Linearity ±0.5%

Resolution^b 1 nW

Measurement Uncertainty^c  ±5%

Integrating Sphere Material (Size) Zenith^® PTFE(Ø1")

Head Temperature Measurement NTC Thermistor 4.7 kΩ

Housing Dimensions Ø45 mm x 30.5 mm

Active Detector Area 3.6 mm x 3.6 mm

Cable Length 1.5 m

Mounting Thread Separate 8-32 and M4 Taps, Posts Not Included

Aperture Thread Included Adapter with SM1 (1.035"-40) External Thread

Product Drawing
