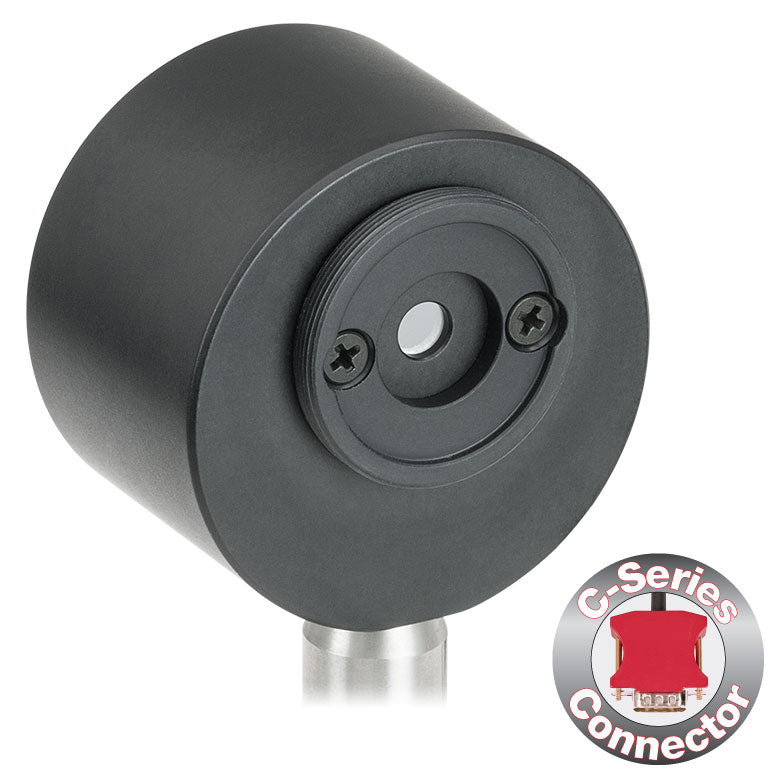

TH-S148C - Integrating Sphere Photodiode Power Sensor, Extended InGaAs, 1200 - 2500 nm, 1 W

Product Drawing

Aperture Size  Ø5 mm

Wavelength Range 1200 - 2500 nm

Power Range 1 µW - 1 W

Detector Type Extended InGaAs Photodiode

Linearity ±0.5%

Resolution^b  1 nW

Measurement Uncertainty^c ±5%

Integrating Sphere Material (Size) Zenith^® PTFE (Ø1")

Head Temperature Measurement NTC Thermistor 4.7 kΩ

Housing Dimensions Ø45 mm x 30.5 mm

Active Detector Area Ø1 mm

Cable Length 1.5 m

Mounting Thread Separate 8-32 and M4 Taps, Posts Not Included

Aperture Thread Included Adapter with SM1 (1.035"-40) External Thread
