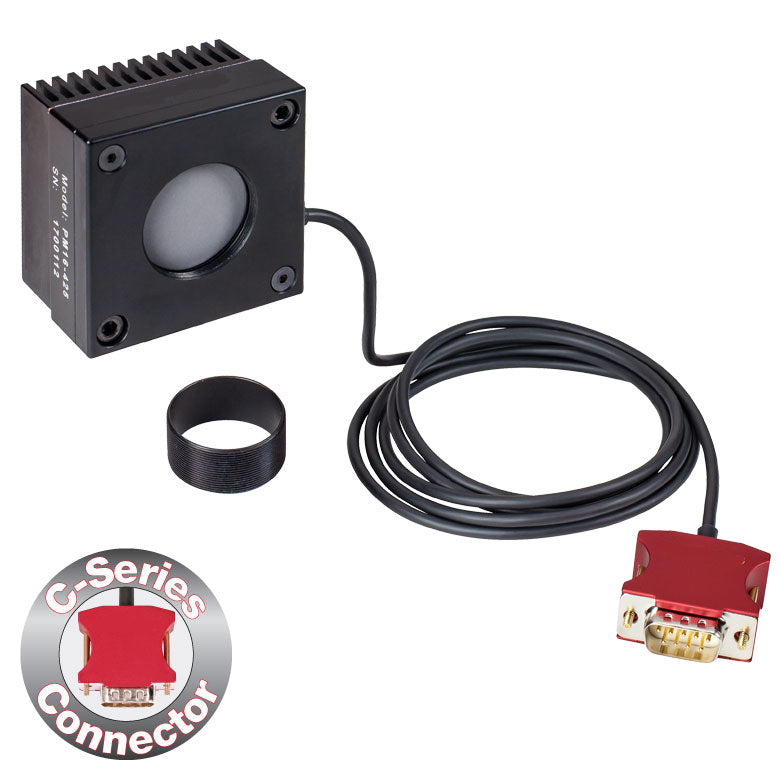

TH-S425C - Thermal Power Sensor Head, Surface Absorber, 0.19 - 20 µm, 10 W, Ø25.4 mm
TH-S425C - Thermal Power Sensor Head, Surface Absorber, 0.19 - 20 µm, 10 W, Ø25.4 mm
| Wavelength Range | 190 nm - 20 µm |
| Optical Power Range | 2 mW - 10 W (20 Wb) |
| Input Aperture Size | Ø25.4 mm |
|
Active Detector Area |
Ø27 mm |
| Max Optical Power Density |
1.5 kW/cm² (Avg.) |
| Detector Type | Thermal Surface Absorber (Thermopile) |
| Linearity | ±0.5% |
| Resolutionc | 100 µW |
| Measurement Uncertaintyd |
±3% @ 1064 nm ±5% @ 250 nm - 17 µm |
| Response Timee | 0.6 s |
| Cooling | |
| Housing Dimensions (Without Adapter) |
(2.00" x 2.00" x 1.38") |
| Temperature Sensor (In Sensor Head) |
NTC Thermistor |
| Cable Length | 1.5 m |
| Post Mounting | Universal 8-32 / M4 Taps (Post Not Included) |
| 30 mm Cage Mounting | - |
| Aperture Threads | Internal SM1 |
| Removable Heatsink | Yes |
| Accessories | Externally SM1-Threaded Adapter |
