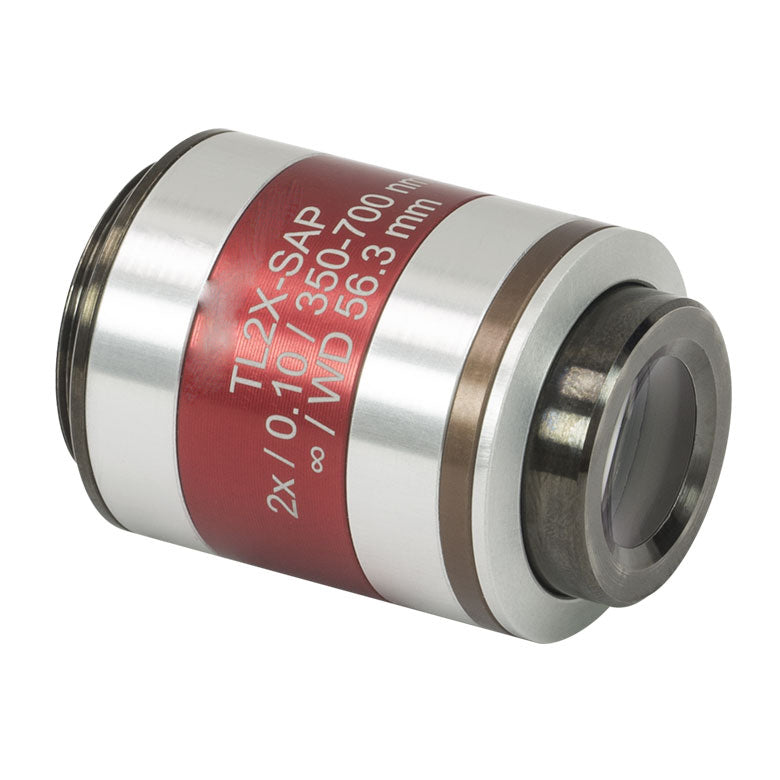

TH-TL2X-SAP - 2X Super Apochromatic Microscope Objective, 0.1 NA, 56.3 mm WD
TH-TL2X-SAP - 2X Super Apochromatic Microscope Objective, 0.1 NA, 56.3 mm WD
Wavelength Range 350 - 700 nm
Magnification When Used with a 200 mm Focal Length Tube Lens 2X
Working Distance With the Wave Plate Attached 56.3 mm
Effective Focal Length 100 mm
Numerical Aperture 0.1
Entrance Pupil Diameter 20 mm
Resolution 3.4 µm
Optical Field Number 22
Parfocal Length 95 mm
Cover Glass Thickness 0 - 5.0 mm
AR Coating Reflectance Ravg < 0.5% (350 - 700 nm)
Objective Threading M25 x 0.75; 3.2 mm Depth
- Infinity-Corrected Super Apochromatic Design
- Ideal for Imaging or Focusing Laser Light
- M25 x 0.75 or M32 x 0.75 Threading
- Designed for a Tube Lens Focal Length of 200 mm
