THL-ETV7 - Iridium Fusion Splicing Filament for the FSX2000PM and FFS Series

• Two Options Available:

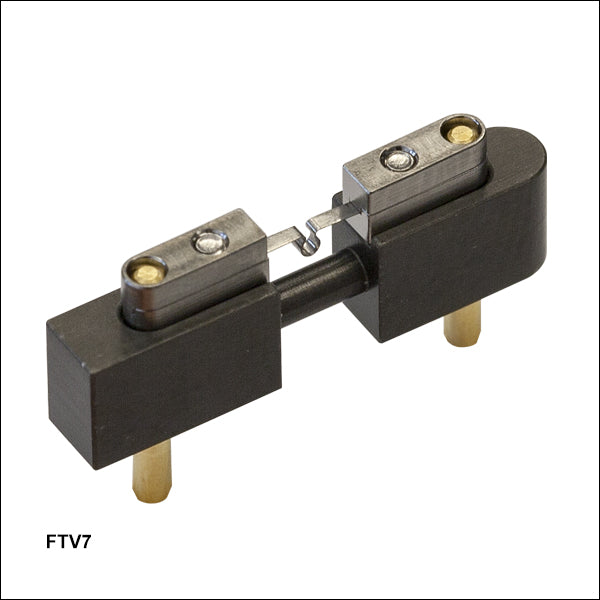

  • THL-FTV7 Tungsten Filament Ideal for Most Applications
  • THL-ETV7 Iridium Filament Ideal for Soft Glass Fibers
• Omega Shape Provides Uniform Concentric Heat Source

There are two available fusion splicing filaments for the all-in-one workstation. The THL-FTV7 tungsten filament is ideal for most splicing applications, while the THL-ETV7 iridium filament is ideal for soft glass fibers. The omega-shaped filament is housed in an included mount and is easily replaced by the end user. The omega shape provides a uniform concentric heat source for fusing the fiber tips and for an optional post-fusion fire polishing step. Filament lifetimes will depend upon the particular splicing parameters used but are typically about 40 minutes
