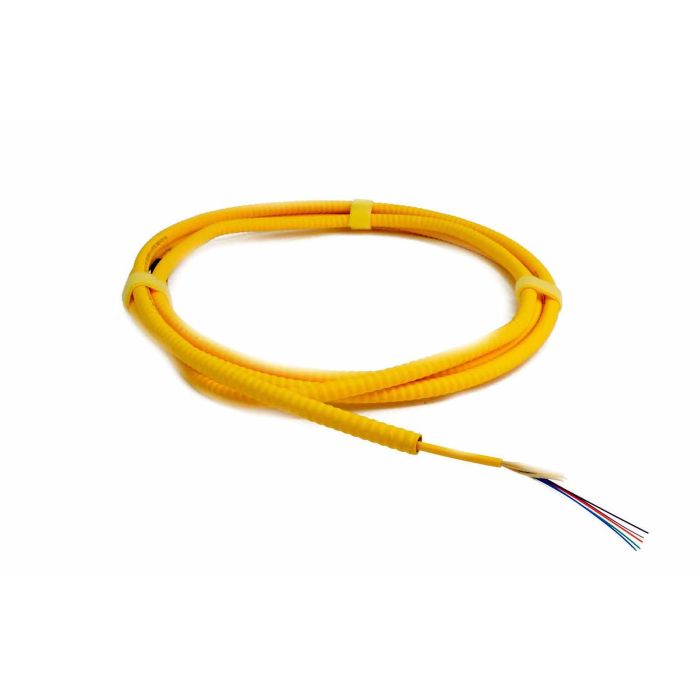

TLC Distribution Fiber Optic Cable with Aluminum Interlocking Armor, 6 Fiber, Singlemode, 9/125um, OS2, Plenum, Yellow | Plus Corning® SMF-28® Ultra Fiber, (per meter)
Overview
This distribution-style fiber optic cable features 6 optical fibers constructed with a 900um tight buffer. The cable is reinforced with aluminum interlocking armor to provide physical protection for the internal components. It is rated for plenum installations and utilizes Corning SMF-28 Ultra singlemode fiber (9/125um, OS2) as the transmission medium.
Key Features
- 900um Tight Buffered Fibers: Allows for direct connector termination without the requirement of additional breakout kits.
- Aluminum Interlocking Armor: Provides mechanical protection for the internal 6-fiber bundle in high-traffic or exposed indoor environments.
- Plenum-Rated Jacket: Designed to meet fire safety requirements for installation in air-handling spaces.
- Corning SMF-28 Ultra Singlemode Fiber: Utilizes standardized OS2 singlemode fiber for consistent signal transmission over long distances.
Technical Specifications
| Attribute | Detail |
|---|---|
| Fiber Count | 6 Fibers |
| Fiber Type | Singlemode (OS2) |
| Core/Cladding Diameter | 9/125um |
| Buffer Type | 900um Tight Buffer |
| Armor Type | Aluminum Interlocking Armor |
| Jacket Rating | Plenum |
| Jacket Color | Yellow |
