Viavi OCC-56C DWDM Optical Channel Checker

Fosco Connect Part No.: 227744

  • $ 7,750.00 or

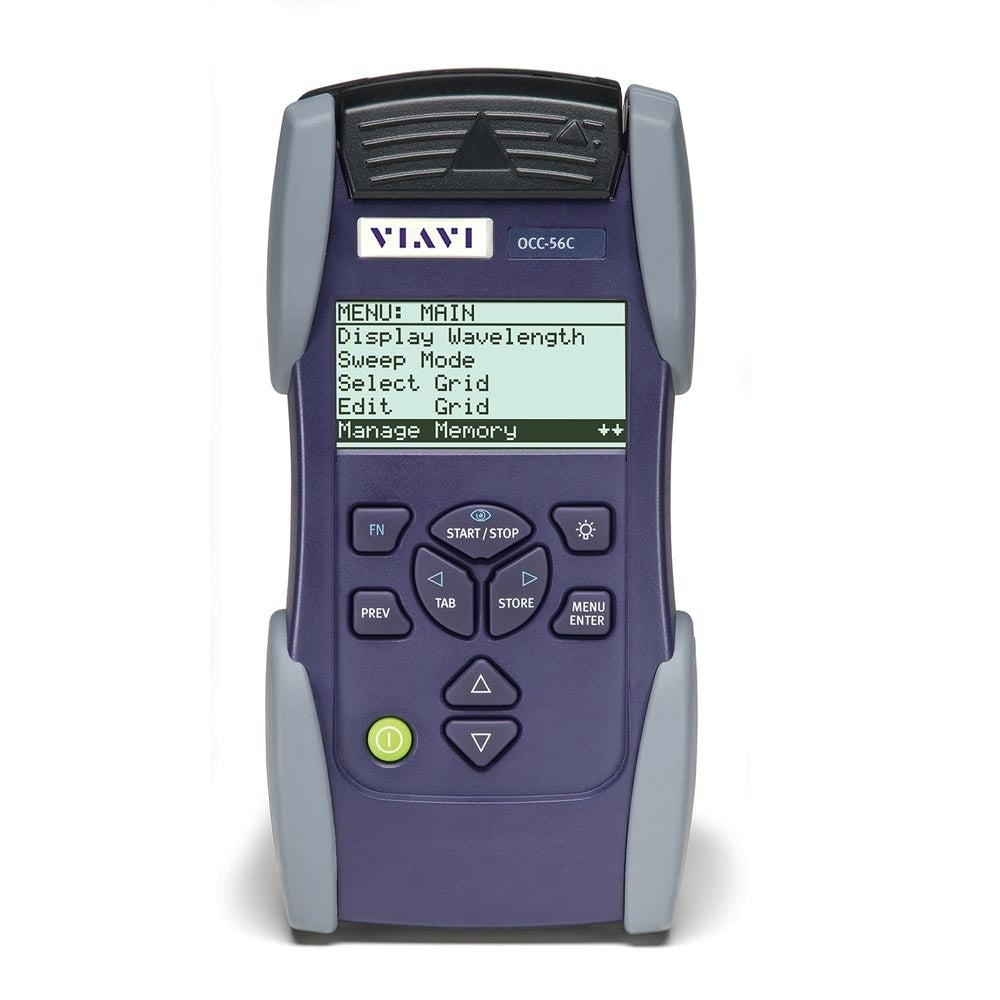

The Viavi Solutions SmartClass OCC-56C is a handheld, battery-operated dense wavelength division multiplexing (DWDM) channel checker that is ideal for field service groups tasked with the installation, maintenance, and upgrades of DWDM systems.

The SmartClass OCC-56C scans the DWDM system and automatically records all channels with the wavelength/frequency and the related power level. Information can be displayed in a graphical spectrum format or in a table of results so that users can easily check the performance of each and every channel. The SmartClass OCC-56C DWDM channel checker covers all ITU-T frequencies from 191.600 to 196.100 THz based on a 100 GHz grid.

  • Industry's smallest and lightest DWDM channel checker
  • Supports C-band applications
  • Outstanding battery life ensures highest flexibility y Graphical/tabular display mode
  • Supports 100 or 200 GHz channel spacing (according to ITU-T)
  • Save results via internal memory or external USB memory stick
  • Report generation software OFS-355

Download Product Specification
