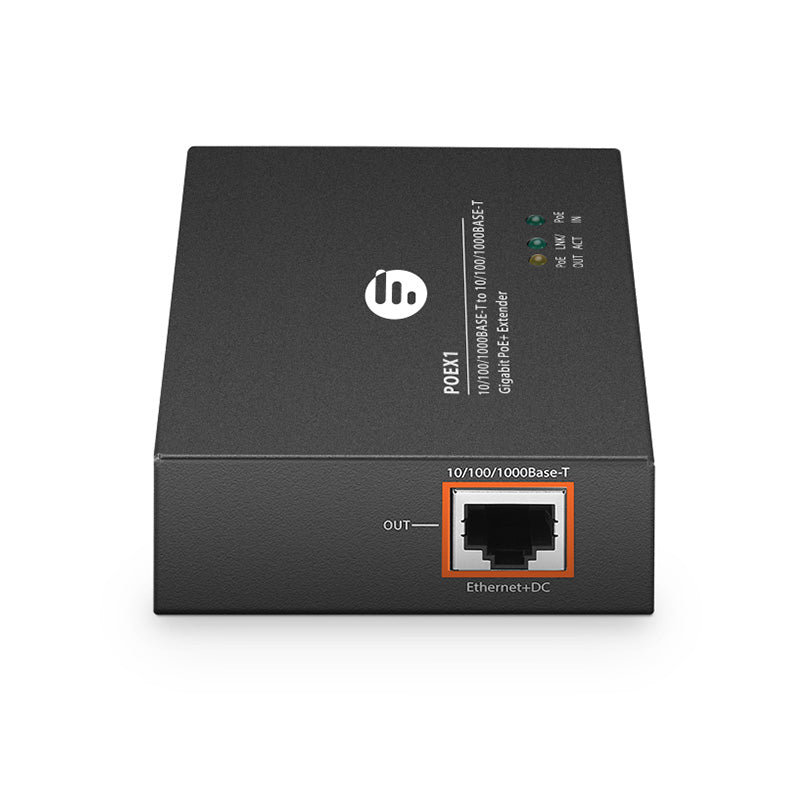

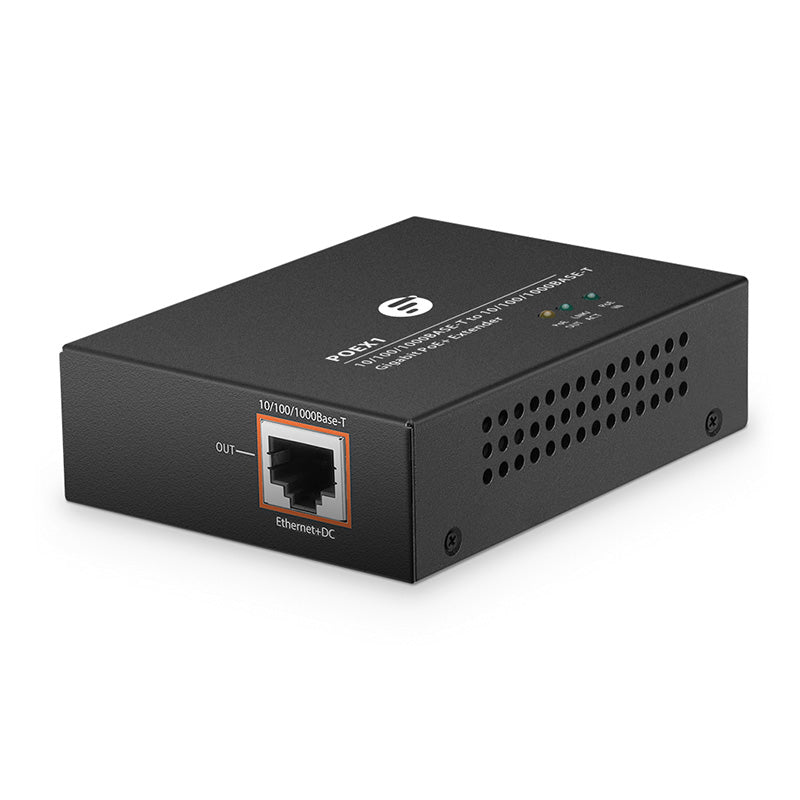

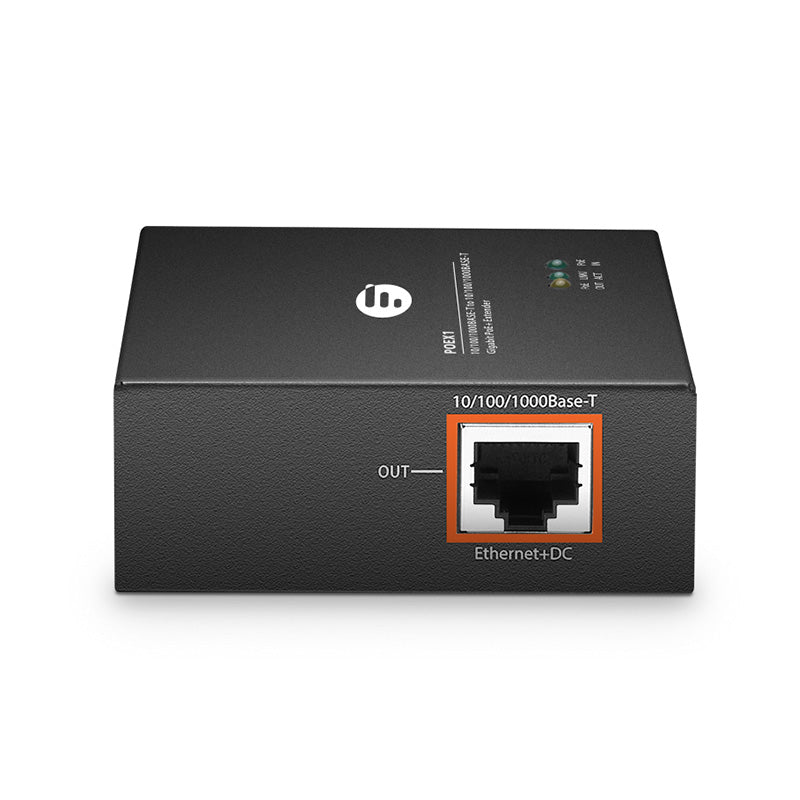

1-Port 10/100/1000M Gigabit PoE+ Extender, 1 x 802.3af/at PoE+ Input to 1 x 802.3af/at Output

POEX1 is a simple extender which extends both the Gigabit Ethernet Data and IEEE 802.3at/802.3af Power over Ethernet transmission distance over the standard 100m (328 ft.) Cat5/5e/6 UTP cable to 200m, 300m, 400m and the maximum 500m.

No matter how many PoE supported networking devices such as PoE IP cameras, PoE wireless access points and PoE IP phones are deployed, they are easily installed without the need of having an additional electrical outlet.

However, limited by the UTP cabling, only up to 100 meters (328 ft.) of cable is used. Thus, the POEX1 is designed as the extender to transmit both Gigabit Ethernet data and 802.3af/at PoE power over another distance of 100m.

Specifications

• Input RJ45 Ports: 10/100/1000 Mbps PoE+ Copper Port (RJ-45)

• Output RJ45 Ports: 10/100/1000 Mbps PoE+ Copper Port  (RJ-45)

• Input Voltage: 48V-56V DC

• Output Voltage: 44~52V DC

• PoE Power: Max. 30.8 Watts Input; Max. 26 Watts Output

• Network Cable: Cat5e (or above) UTP

• Power Consumption: 2.6 Watts (System Maximum)/PoE Output at Maximum 36 Watts

• Data Transmission Distance: Up to 100m; 500m with Daisy-chain Installation of 4 Units

• Switch Architecture: Store-and-Forward

• Switch Throughput: 10/100/1000 Mbps

• Operating Temperature: -10 to 60°C (14 to 140°F)

• Storage Temperature: -40 to 85°C (14 to 158°F)

• Operating Humidity: 5% to 95% (non-condensing)

• Storage Humidity: 5% to 95% (non-condensing)

• Dimensions (Hx Wx D): 37.01"x27.56"x10.24" (94x70x26mm)

• Installation: Wall or Din-rail Mounting
• Compliant with IEEE 802.3at PoE+ PSE and PD Standard

• Automatically Detects and Protects Equipment from Being Damaged by Incorrect Installation

• No External Power Cable Installation Required

• Forwards Both Ethernet Data and PoE Power to the Remote Device

• Wall-mountable, Plug-and-Play Installation

• Daisy-chain Installation Support
