98 Channel (14-62.5), DWDM Optical Channel Analyzer (OCA)
98 Channel (14-62.5), DWDM Optical Channel Analyzer (OCA)
98 Channel (14-62.5), DWDM Optical Channel Analyzer (OCA) with Video Inspection Port or PM
Features:
• Up To 98 Channels
• 50GHz or 100GHz Bar Graph or Table Mode
• 6GHz HiRes Line Graph Mode
• Auto Center/Pass/Fail Video Inspection Scope Option
• PM and VFL Options Also Available
• Pass/Fail Thresholds
• 12 Hour Li-ion Battery Pack
• Fast Real Time with <1/2 second Update
• Solid State Optics - No Moving Parts
• Auto Test Mode Zooms in on Active Channels
• Rugged Case w/Impact Resistant Boot
• 4” Touch Color Display
• Stores up to 1000 tests
• USB/PC Port
The OSR-80 Optical Spectrum Analyzer is one of the most rugged and affordable full featured Mini OSAs on the market.
This C-band hand held OSA is available in up to 98 channels with 50 and 100 GHz channel spacing with a 6GHz lin.
The OSR-80 is simple and fast to use with its touch screen operation and twice a second scan. It offers high end features such as power tilt monitoring for DWDM channel equalization.

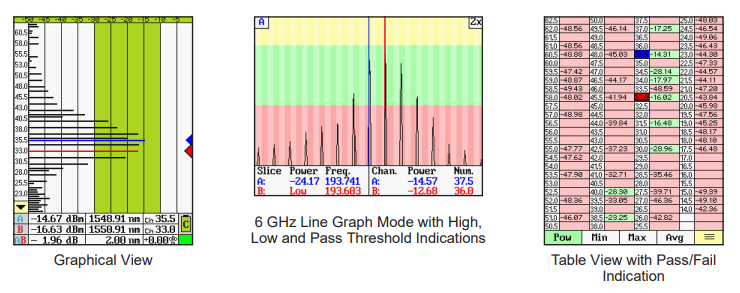

With a full set of selectable scale limits and thresholds, the FTE-8100 makes zeroing in on channel measurements easy. For flexibility, the channels are selected by channel number, wavelength or frequency. The information is displayed in graph, table or in 6GHz line graph mode, on the 4” bright color touch screen.
This unit allows users to set pass/fail thresholds and can store up to 1000 tests that can be downloaded via the USB PC port. Documentation is fast and easy with the included Cert-Soft certification software. The onboard help system assists new users in parameter setup and file manipulation.
The OSR-80 is available with an IEC61300-3-35 auto center/pass/fail video inspection scope, (probe sold separately) power meter or VFL options.

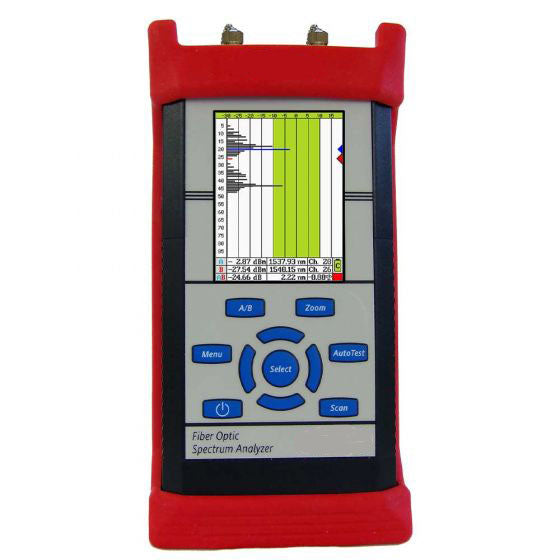

OSR-80 MINI OSA
OSA SPECIFICATIONS
Wavelength Range: Channels 14 - 62.5; 196.25THz - 191.4THz; 1527.6 -1566.31nm
Channel Spacing: 50GHz, 100GHz Graph Mode and 6GHz Slice, Line Graph Mode
Wavelength Accuracy: ±0.1nm
Channel Power Ranges: Low Range Port -50dBm to -10dBm,
High Range Port -30dBm to +10dBm
Absolute Accuracy: ±1 dB
Max Composite Power: +28 dBm
PDL: ±0.15dB
Optical Rejection Ratio: 40dBc (@50GHz)
Measurement Time: < 1/2 Second
Readout Resolution: 0.01dB
Return Loss: >40dB
GENERTAL SPECIFICATIONS
Optical Interface: SC/UPC or SC/APC
Graphical Display: bar graph, table view and 6GHz Line Graph
Display: 4 in. touch color TFT
Dimensions: 7.75” L x 4.5” W x 2.25” H (197mm L x 114mm W x 57mm H)
Weight: 1.6 lbs.
Battery: LI-ion 12 hrs. typ
Power: 100-240V input universal US, GB, EU, AU Mains, 15VDC Output
Operating Temperature: -10°C to 40°C
Storage Temperature: -20°C to 60°C
Accessories Included: Universal power supply with mains for US, UK, EU and AU. ships with SC/APC or SC/UPC as ordered, CertSoft Software Suite, USB cable, manual and rubber boot
VFL SPECIFICATIONS
Emitter Type: Laser
Wavelength: 650nm ± 5nm
Laser Safety Class: Class IIFDA21 CFR1040.10 & 1040.11 IEC 825-1: 1993
Connector Type: 2.5mm Universal
Output Power: 1mW Max.
OSR-80 MINI OSA
POWER METER SPECIFICATIONS
Detector Type: InGaAs
Connector Type: ST, FL, SC, 1.25mm and 2.5mm Interchangeable
Dynamic Range: +5 to -77dB (CATV - +25 to -57dB)
Calibrated Wavelengths: 850,1300,1310,1490,1550 and 1625nm
Power Measurement Uncertainty: ± 0.18 dB under reference conditions, ± 0.25 dB from 0 to -65 dBm, ± 0.35 dB from 0 to +5 dBm and from -65 to -77 dBm
Units of Measurement: dBm, dB
Resolution: .01 dB
ORDERING INFORMATION
Ordering Information
OSR-80C-A-VP: 98 Channel, C Band Hand Held Optical Spectrum Analyzer with SC/APC Adapters. Includes Video Inspection Port for use with the Video Inspection Probe (Sold Separately)
OSR-80C-A-PM: 98 Channel, C Band Hand Held Optical Spectrum Analyzer with SC/APC Adapters. Includes Broadband Power Meter
OSR-80C-A-VFL: 98 Channel, C Band Hand Held Optical Spectrum Analyzer with SC/APC Adapters. Includes Visual Fault Locator
OSR-80C-U-VP: 98 Channel, C Band Hand Held Optical Spectrum Analyzer with SC/UPC Adapters. Includes Video Inspection Port for use with the Video Inspection Probe (Sold Separately)
OSR-80C-U-PM: 98 Channel, C Band Hand Held Optical Spectrum Analyzer with SC/UPC Adapters. Includes Broadband Power Meter
OSR-80C-U-VFL: 98 Channel, C Band Hand Held Optical Spectrum Analyzer with SC/UPC Adapters. Includes Visual Fault Locator
VIS-300: Video Inspection Probe
