98 Channel (14-62.5), DWDM Tunable Laser Source with Video Inspection
98 Channel (14-62.5), DWDM Tunable Laser Source with Video Inspection
FEATURES
• Selectable Step Size Down to 50 GHz
• Selectable Start & Stop Channels
• Settable in Wavelength, Frequency or ITU Channel
• Settable Dwell Time
• Rugged Case with Impact Resistant Boot
• Bat ter y Operated or International Line Voltage
• Simple Operation with On-Board Help Mode
• Lowest Cost Hand Held Tunable Laser Source
• IEC61300 Auto Pass/Fail/Centering Fiber Inspector
• Visible Fault Locator
• Interchangeable Fiber Optic Connectors
• Up to 98 Channels on the ITU Grid
• 4” Color Touch Display
• 10 hr Battery Life
APPLICATIONS
• Support ROADM Network Test
• WDM, GFF, AWG, PLC, & ATM System Trouble Shooting
• Fiber Sensors Test
• PMD and PDL Measurement
• Fiber Optic Telcom and R&D Test Applications
• Impact Field Testing System
• Fiber Characterization in DWDM Networks
• Verify ROADM Channel Routing
This OST-80 Hand Held Tunable Laser Source (TLS) Is available with up to 98 Channels in the “C” Band. This Tunable Laser Source is manufactured in our rugged splash proof housing with a highly protective boot.
Our TLS displays in wavelength, frequency or ITU channel. It is a great match with our

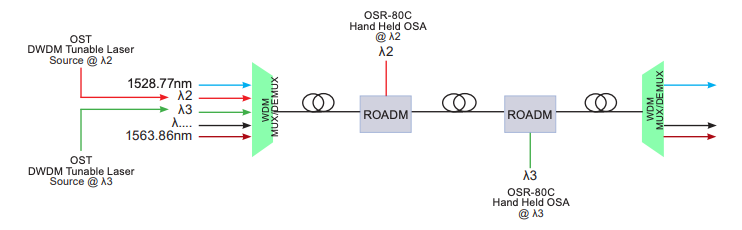

OSR-80C ( Hand Held Optical Spectrum Analyzer) for installation, commissioning and trouble shooting of DWDM networks.
The OST-80 offers a fast start up with minimal warm up required and provides very stable wavelength and power outputs. The OST-80 also incorporates an IEC61300 Auto Pass/Fail/Centering Fiber Optic Video Scope (probe sold separately) and a Visible Fault Locator. As with all of our advanced tests equipment series, the OST-80 is affordable, easy to use and rugged.
OST-80 DWDM TUNABLE LIGHT SOURCE
SPECIFICATIONS
Range: Fequency 191.4- 196.25 THz; Wavelengths 1527.61-1566.31nm; ITU Channels 14 - 62.5
Frequency Accuracy: 1.5 GHz
Line Width: 1 MHz
Side Mode Suppression Ration: 40 dB
Maximum Output Power: 13 dBm (Typ.)
Output Power Range: 6 dB
Power Setting Resolution: 0.01 dB
Power Variation over Wavelength Range: ± 0.5 dB
Minimum Channel Spacing: 50 GHz (0.4nm)
Fiber Type: 9/125 µm
Relative Intensity Noise: -140 dB/Hz
Graphical Display: 4 in Color Touch Screen
Dimensions: 8.75” L x 4.25” W x 2.125” H (222mm L x 108mm W x 554m H)
Weight: 1.75 lbs
Battery: Li-ion 10 hr typ.
Power: 100-240 universal
US, GB, EU, AU Mains
Environmental: Operation 0°C to + 40°C
Accessories Included: Universal power supply with mains for US, UK, CE and AU. Interchangeable FC and SC adaptors, Windows Compatible Software, USB Cable, Manual and Rubber Boot
ORDERING INFORMATION
OST-80-C: OST-80 C-Band Tunable Laser Source
VIS-300: Video Probe for use with Fiber Optic Video Scope
