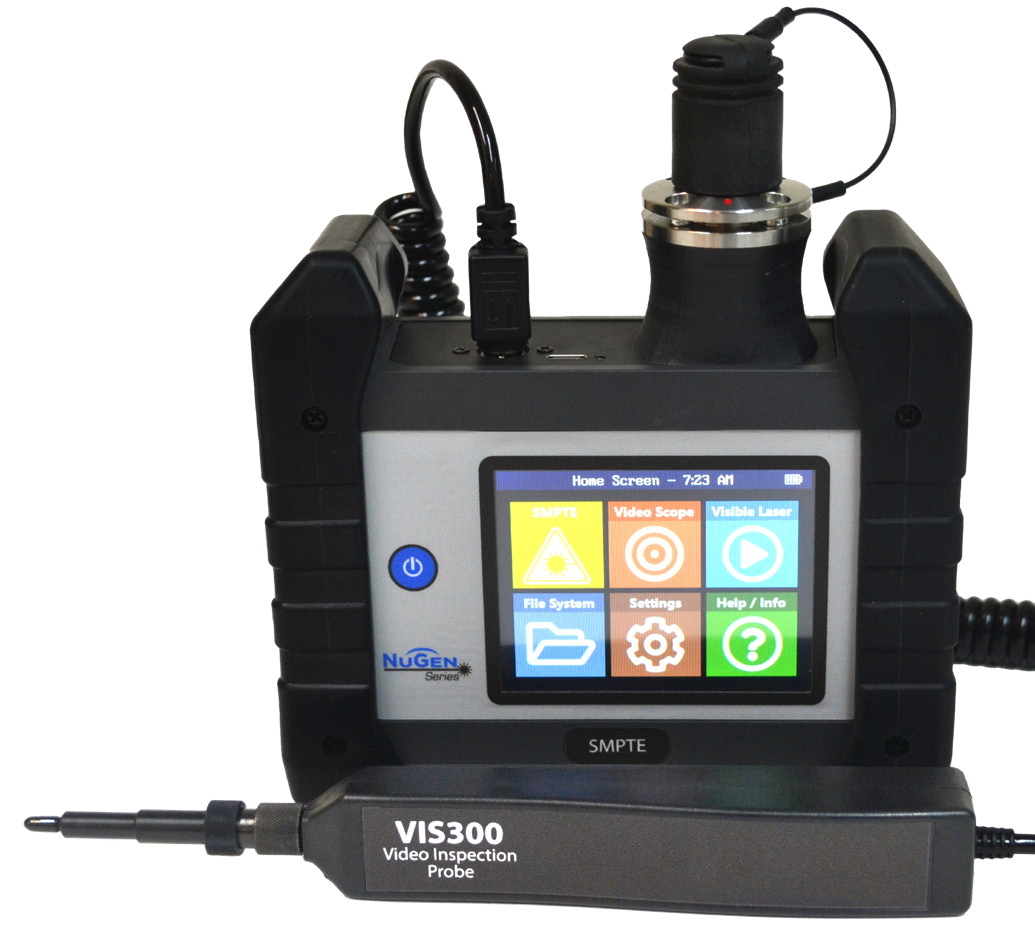

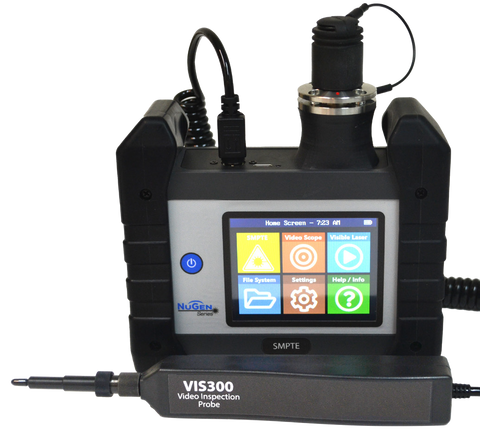

The NUGEN V2 SMPTE Cable Test Set is the next-generation solution for verifying the performance and reliability of SMPTE hybrid cable assemblies in demanding broadcast environments. Designed with both durability and simplicity in mind, it consists of a rugged Control Unit and a compact Remote Unit that work together to ensure your optical and electrical connections are functioning flawlessly.

With its intuitive touch-screen interface, the Control Unit allows operators to instantly view optical power loss and copper wiring integrity. Whether diagnosing a faulty optical path or pinpointing electrical issues such as shorts, opens, or cross-wiring, the NUGEN V2 provides quick, accurate results that minimize downtime.

For maximum reliability, the system includes an integrated Visible Fault Locator (VFL) to highlight fiber defects and an optional VIS300SMPTE Video Inspection Probe for automated connector inspection. Test data can be saved directly to the instrument and easily downloaded to a PC for comprehensive reporting.

Built to withstand harsh working conditions, the NUGEN V2 offers portability, rugged design, and long battery life — making it an indispensable tool for broadcast engineers and field technicians.

Download Product Spec Sheet

Key Features & Benefits

• All-in-One Testing – Measures optical fiber transmission loss and verifies copper conductor wiring.

• Intuitive Touch-Screen – Fast, straightforward operation with clear on-screen results.

• Fault Diagnostics – Identifies broken, shorted, or cross-wired conductors and poor optical connections.

• Connector Integrity – Optional VIS300SMPTE probe provides automated video inspection to reduce contamination-related loss.

• Built for the Field – Rugged, lightweight housing with up to 10 hours of battery life.

• Data Management – Save test results onboard and export to PC with included software.

• Integrated VFL – Quickly locate optical fiber defects with the built-in visible fault locator.

Technical Specifications

Power Meter (Receiver)

• Detector: InGaAs photo-diode

• Wavelengths: 1310 nm / 1550 nm

• Resolution: 0.01 dB

• Measurement Range: 60 dB

• Accuracy: ±0.2 dB

Light Source

• Wavelengths: 1310 nm / 1550 nm

• Output Power (9/125 µm): –1 dBm (typical)

• Spectral Width (FWHM): 5 nm (typical)

• Visible Fault Locator (VFL): 650 nm

Control Unit

• Power Requirement: USB 5V, 2A

• Battery: Li-Poly, 10 hrs typical life (@25°C), 4 hrs recharge

• Operating Temperature: –10°C to +40°C

• Storage Temperature: –20°C to +60°C

• Display: 4" Color TFT touch screen

• Dimensions: 5.25” L x 6.125” W x 2.5” H (133 x 156 x 64 mm)

• Weight: 1.5 lbs. (0.7 kg)

Remote Unit

• Passive loopback housed in rugged aluminum enclosure

• SMPTE hybrid fixed socket connector

Included Accessories

• 5V, 3.4A USB wall charger with cable

• Two stylus pens

• Connect PC software

• User manual
