EXFO FiberBasix Power Meter InGaAs Detector FC & SC Adapter
EXFO FiberBasix Power Meter InGaAs Detector FC & SC Adapter
Power meter with InGaAs detector

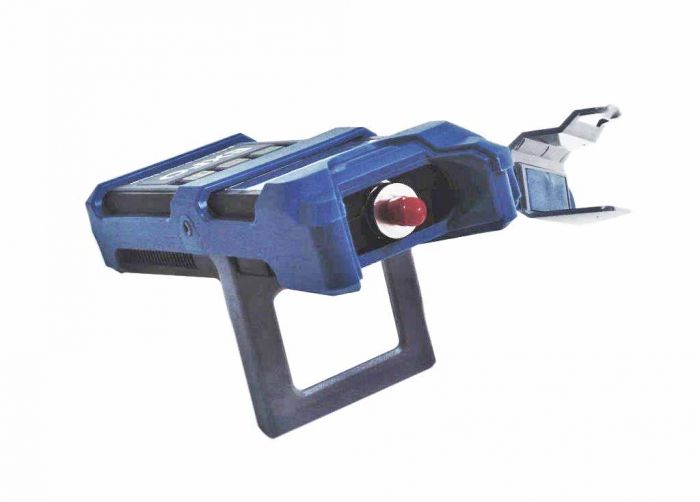

- GP-2124: Rubber Protective Boot
- Five calibrated wavelengths
- dB, dBm, and Watt measurement
- CE mark
- PMA-54 SC connector adapter

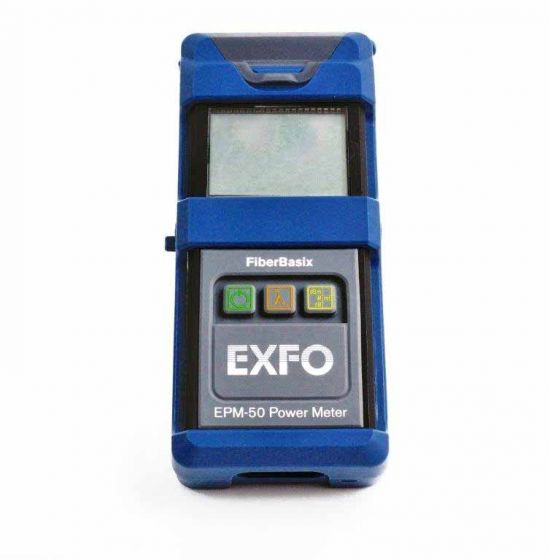

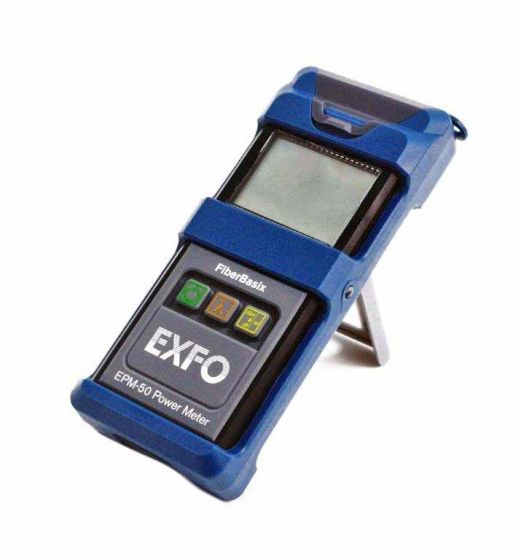

The EPM-50 Power Meter provides highly accurate power measurements, as well as reference value setting capabilities. It offers power autonomy of 300 hours, for reliable, long-lasting performance in the field.
SPECIFICATIONS
MODEL: EPM-53
Power meter port: InGaAs
Power range b (dBm): 10 to –60
Number of calibrated wavelengths: 5
Power uncertainty: ±5 %
Resolution (dB): 0.01
Display units: dB/dBm/W
Tone detection (Hz): 270, 1 k, 2 k
Battery life (hours): >300
Warranty (year): 1
GENERAL SPECIFICATIONS
Size (H x W x D): 189 mm x 78 mm x 37 mm (7 7/16 in x 3 1/16 in x 1 7/16 in)
Weight: 0.4 kg (0.9 lb)
Temperature operating: —10 °C to 50 °C (14 °F to 122 °F)
Temperature storage: —40 °C to 70 °C (–40 °F to 158 °F)
Relative humidity: 0 % to 95 % non-condensing
STANDARD ACCESSORIES
Soft pouch, PMA-22 FC connector adapter, quick reference sticker in five languages, Certificate of Calibration, Certificate of Compliance, three AA batteries
OPTIONAL ACCESSORIES
PMA-22 (FC connector adapter for EPM-50 power meter) Manual (user guide)
PMA-32 (ST connector adapter for EPM-50 power meter) GP-10-081 (soft pouch)
PMA-54 (SC connector adapter for EPM-50 power meter) GP-2124 (rubber boot)
ORDERING INFORMATION
ELS-50-XX-LSA-89-RB
ELS-50-23BL = 1310/1550 nm laser (9/125 µm)
ELS-50-235BL = 1310/1490/1550 nm laser (9/125 µm)
ELS-50-12C = 850/1300 nm LED (50/125 µm)
Example: ELS-50-12C-LSA-89-RB
EPM-5X-PMA-22-XX
EPM-53 = InGaAs detector
EPM-53X = High-power InGaAs detector
00 = Without rubber boot protector
RB = With rubber boot protector
PMA-22 = FC adapter for power meter
Example: EPM-53X-PMA-22-RB
TEST KIT ORDERING INFORMATION
FBK-51 LAN Test Kit
› EPM-53-RB Power Meter, InGaAs detector, universal 2.5 mm push-pull adapter and FC adapter, rubber boot, soft pouch
› ELS-50-12C-RB Light Source, 850/1300 nm LED (one port), FC adapter, rubber boot, soft pouch
› Carrying case (GP-10-061)
› Extra power meter adapters: one PMA-54 (SC) and one PMA-32 (ST)
› Extra light source adapters: one LSA-91 (SC) and one LSA-90 (ST)
FBK-52 Outside Plant Test Kit
› EPM-53-RB Power Meter, InGaAs detector, Universal 2.5 mm push-pull adapter and FC adapter, rubber boot, soft pouch
› ELS-50-23BL-RB Light Source, 1310/1550 nm laser (one port), FC adapter, rubber boot, soft pouch
› Carrying case (GP-10-061)
› Extra power meter adapters: one PMA-54 (SC) and one PMA-32 (ST)
› Extra light source adapters: one LSA-91 (SC) and one LSA-90 (ST)
FBK-53 Contractor Kit
› EPM-53-RB Power Meter, InGaAs detector, universal 2.5 mm push-pull adapter and FC adapter, rubber boot, soft pouch
› ELS-50-12C-RB Light Source, 850/1300 nm LED (one port), FC adapter, rubber boot
› ELS-50-23BL-RB Light Source, 1310/1550 nm laser (one port), FC adapter, rubber boot, soft pouch
› Carrying case (GP-10-061)
› Extra power meter adapters: one PMA-54 (SC) and one PMA-32 (ST)
› Extra light source adapters: two LSA-91 (SC) and two LSA-90 (ST)
FBK-54 FTTH Test Kit
› EPM-53X-RB Power Meter, High-power InGaAs detector, universal 2.5 mm push-pull adapter and FC adapter, rubber boot, soft pouch
› ELS-50-235BL-RB Light Source, 1310/1490/1550 nm laser (one port), FC adapter, rubber boot, soft pouch
› Carrying case (GP-10-061)
› Extra power meter adapters: one PMA-54 (SC) and one PMA-32 (ST)
› Extra light source adapters: one LSA-91 (SC) and one LSA-90 (ST)
FBK-55 CATV Test Kit
› EPM-53X-RB Power Meter, high-power InGaAs detector, universal 2.5 mm push-pull adapter and FC adapter, rubber boot, soft pouch
› ELS-50-23BL-RB Light Source, 1310/1550 nm laser (1 port), FC adapter, rubber boot, soft pouch
› Carrying case (GP-10-061)
› Extra power meter adapters: one PMA-54 (SC) and one PMA-32 (ST)
› Extra light source adapters: one LSA-91 (SC) and one LSA-90 (ST)
