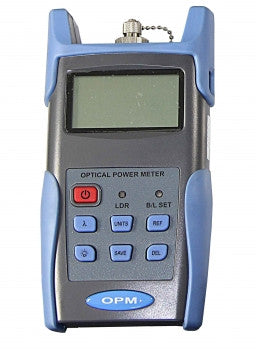

F1-8513HR-3A Handheld Optical Power Meter is a newly designed fiber optic tester, which aims at the installation, engineering acceptance and maintenance of fiber network.

Combined with handheld optical light source, it offers a quick and accurate testingsolution on both SM and MM fibers.

Features

. 2 types of backlight modes, manual or outside light intensity, which indicated by LED light red or blue color.

. Intelligent backlight

. Reference power level can be set up and stored

. User self-calibrating function

. Auto-off function

. Up to 240hrs battery life

Specifications

Calibration Wavelength(nm) :800~1700

Detector type :InGaAs

Detector Size: 0.3mm

Measurement Range(dBm):-70+10

Uncertainty (dB): +_0.2(5%)

linearity (dB):0.01

Display resolution(dB):0.03

Frequency ID Hz:270 330 1K 2K

Wave ID nm:850,980,1300,1310,1490,1550,1625

Resolution(dB):Linear 0.1% or Non-linear 0.01dBm

Communication Port:USB

Connector:FC/PC

Alkaline battery:3AAA 1.5V or Li battery (9V)

Power Adapter(V):8.4

Battery Operating time (h):240 without backlight

Operation Temperature(^oC):-10(^oC) +60

Storage Temperature(^oC) :-25(^oC)+70

Dimension(mm) :172*82*33

Weight(g):310

Standard Packages:

Optical Power Meter, 3pcs 1.5V Batteries,Power Adapter, User Manual, Cotton Stick and Soft Carrying Case.
