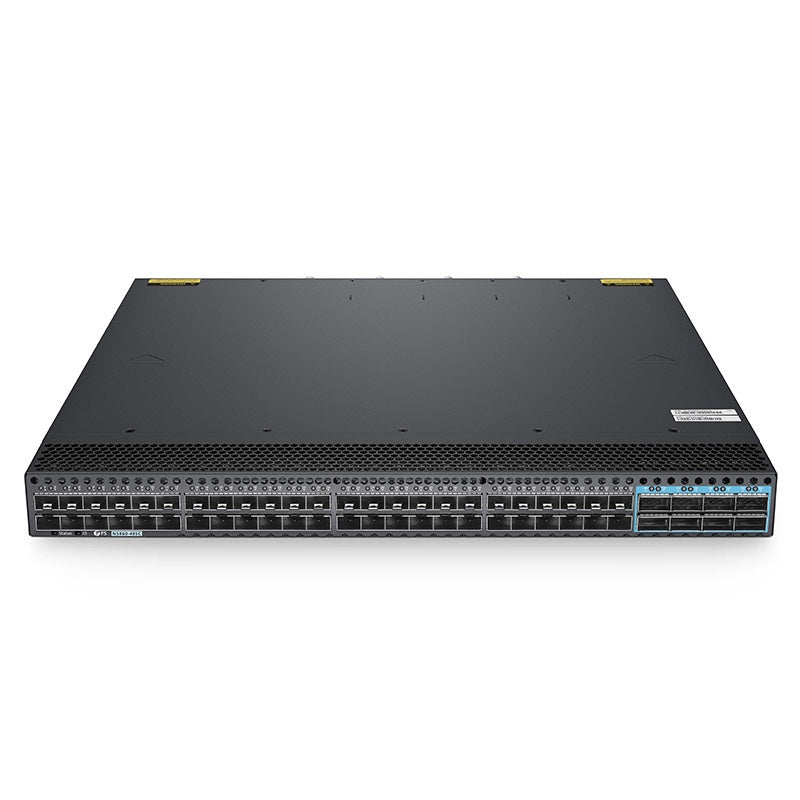

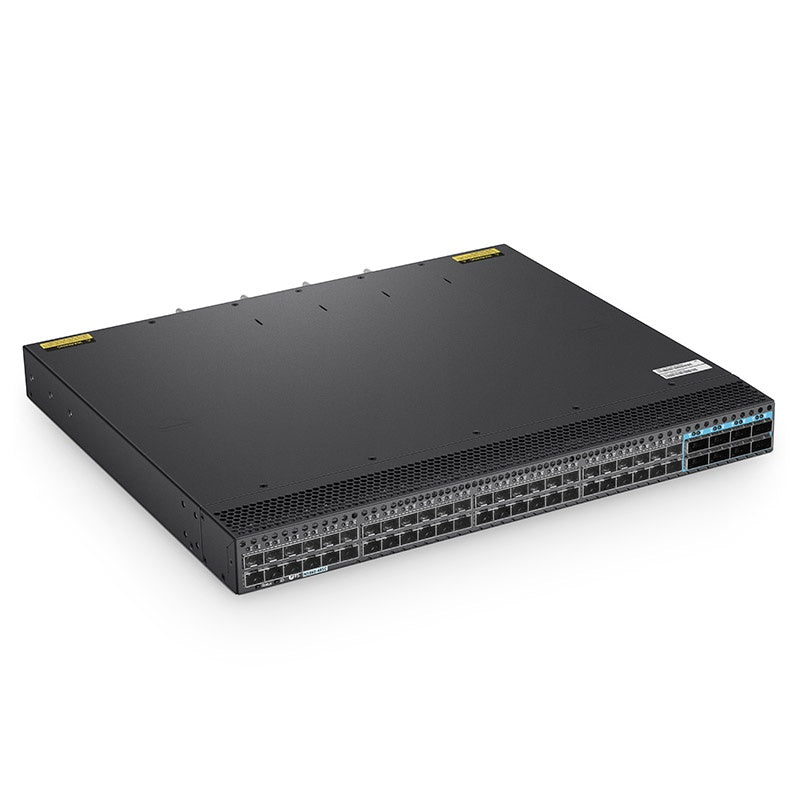

FS-N5860-48SC, 48-Port Ethernet L3 Data Center Switch, 48 x 10Gb SFP+, with 8 x 100Gb QSFP28, Support MLAG/Stacking, Broadcom Chip, Dual AC PSUs

FS-N5860-48SC is a high density switch in a compact 1U form factor with full line rate 48 1/10GbE and 8 40/100GbE ports.

It adopts Broadcom chips to deliver 1.28 Tbps switching capacity and 1920 Mpps forwarding rate.

It is packed with redundant hot-swappable power supplies and smart fans for network reliability.

Comprehensive Layer 2 and Layer 3 capabilities with support for stacking, MLAG, and EVPN-VXLAN make it ideal for data centers of all sizes and cloud computing services.

Specifications

• Ports: 48x 10G SFP+, 8x 100G QSFP28

• Switching Capacity: 1.28 Tbps

• Switch Chip: Broadcom BCM56873 Trident 3

• Forwarding Rate: 1920 Mpps

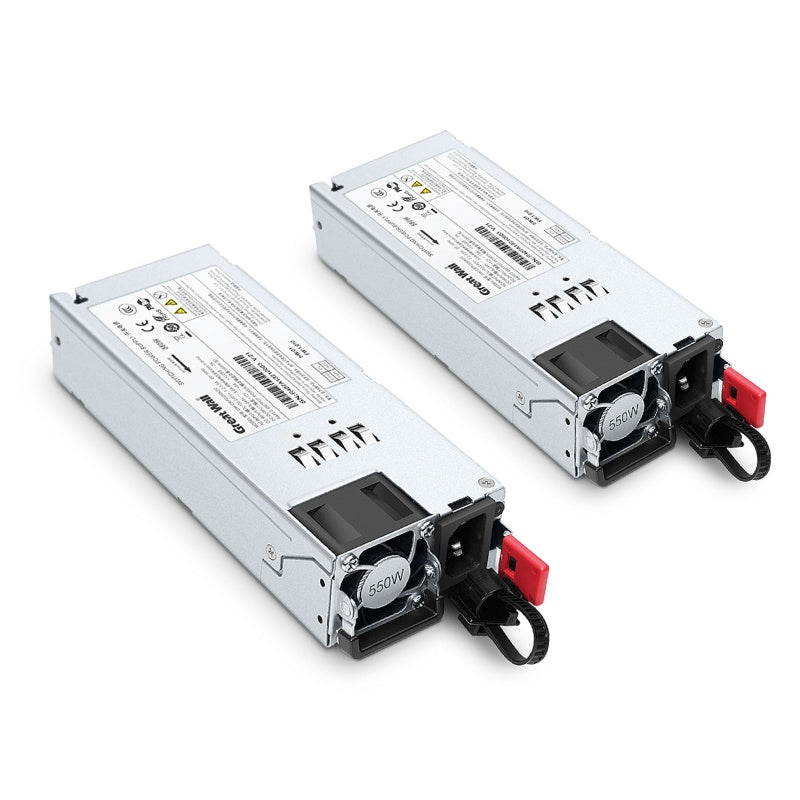

• Power Supplies: 2 (1+1 Redundancy) Hot-swappable, AC

• Packet Buffer: 32MB

• Fans: 4x Hot-swappable Fans, Front-to-Back

• Jumbo Frame: 9,216

• Dimensions (HxWxD): 1.73"x 17.4"x 15.2" (44x 442x 387mm)

• MTBF: 330,000 hours

• Latency: <1μs

• MAC Address: 96K

• Input Voltage: 90-264VAC, 50-60Hz

• IPv4/IPv6 Routes: 128,000/64,000

• Input Current: 3.6A

• Number of VLANs: 4K

• Max. Power Consumption: <300W

• SDRAM: 4GB

• Operating Temperature: 0 to 45ºC (32 to 113°F)

• Flash Memory: 8GB (EMMC)
• Switching Capacity: 1.28 Tbps
• Power Supplies: 2 (1+1 Redundancy) Hot-swappable, AC
• Fans: 4 (3+1 Redundancy), Front-to-Back
• Max. Power Consumption: <300W
• MLAG: Yes
• Stacking: Yes
• VXLAN/EVPN: Yes

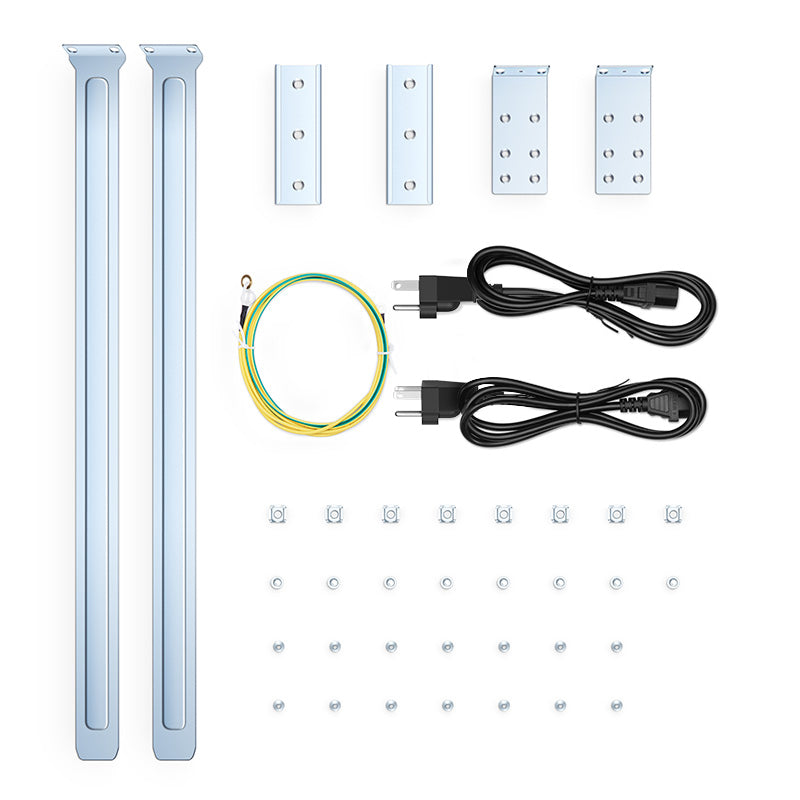

Please Note: Matching the American standard power cord as default. If you need other standard power cords, please note in the order.

Product Highlights

• Broadcom BCM56873 Trident 3 chip, 1.28 Tbps Troughput

• Support MLAG/Stacking, BGP, EVPN-VXLAN, RoCEv2, REUP, GR, BFD

• Support ACL, RADIUS, TACACS+, DHCP Snooping, etc. for Security

• Support SPAN/RSPAN/ERSPAN and INT for Visibility

• Support Ansible, OpenFlow, NETCONF, etc. automate manual tasks

• Support SNMP v1/v2c/v3, CLI, Telnet, SSH

• 1+1 Hot-swappable AC Power Supplies, 3+1 Smart Fans
• Ports: 48x 10G SFP+; 8x 100G QSFP28

Software Spotlights

High Availability And Multi-Service Support

• Support MLAG/Stacking
• Support Virtual Router Redundancy Protocol (VRRP)
• Support GR perfect restart, BFD fast forwarding detection and other mechanisms
• Support IPv4/IPv6 Dual Protocol Stack
• Support Unicast Routing and IS-IS
• Support Hot swap without affecting normal operation of other devices
• Support GVRP(similar to VTP) and QinQ
• Support QOS, PBR and Port Mirroring (SPAN)

Error-Free Network Configuration

• Support EVPN-VXLAN
• Support BGP4/BGP4+
• Support Ansible, OpenFlow, NETCONF, etc. Configuration and Automation Tools
• Support RoCEv2 (RDMA over Converged Ethernet Version 2), PFC, ECN, and DCBX
• Realized lossless Ethernet low-latency forwarding based on RDMA (Remote Direct Memory Access)
• Support DHCP snooping
• Support hardware-based IPv6 ACLs
• Support port-port latency

Secure And Simplified Access for Users And IoT

• Support SNMP (SNMPv1,v2c,v3), RMON, gRPC
• Support the Secure Shell (SSH) and SNMPv3
• Support the source IP-based Telnet device access control
• Support In-band Network Telemetry (INT)
• Support Network Foundation Protection Policy (NFPP)
• Support hardware CPU protection mechanism
• Support Zero Touch Provisioning (ZTP)

Connectivity Solutions

High-Performance Computing DC Network Solution
The security devices form a resource pool, and various services in the data center are drained on demand, fully protecting traffic security and ensuring efficient use of resources.

Flexible Interface Speeds for Multi-scenario Deployment
1/10/25G for servers, 40/100G uplinks for spine switches.

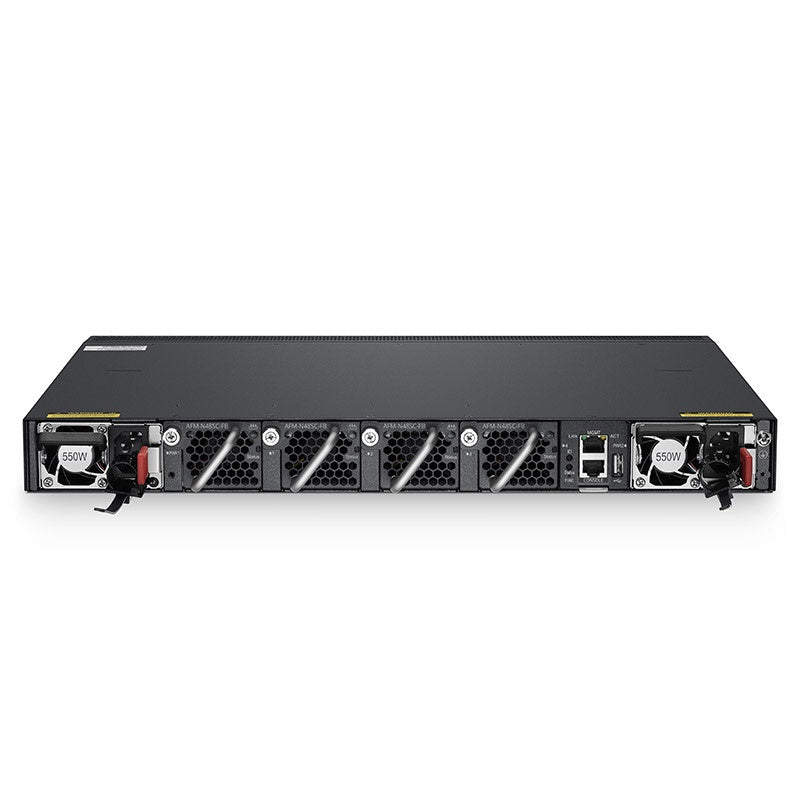

Dual Redundant Power Supplies and Smart Fans
Ship with dual power supplies and smart fans by default, provide high availability and longevity.

A Feature-Complete Switching Platform
Support comprehensive networking features across L2/L3, availability, security, and management to elevate network performance and streamline management.

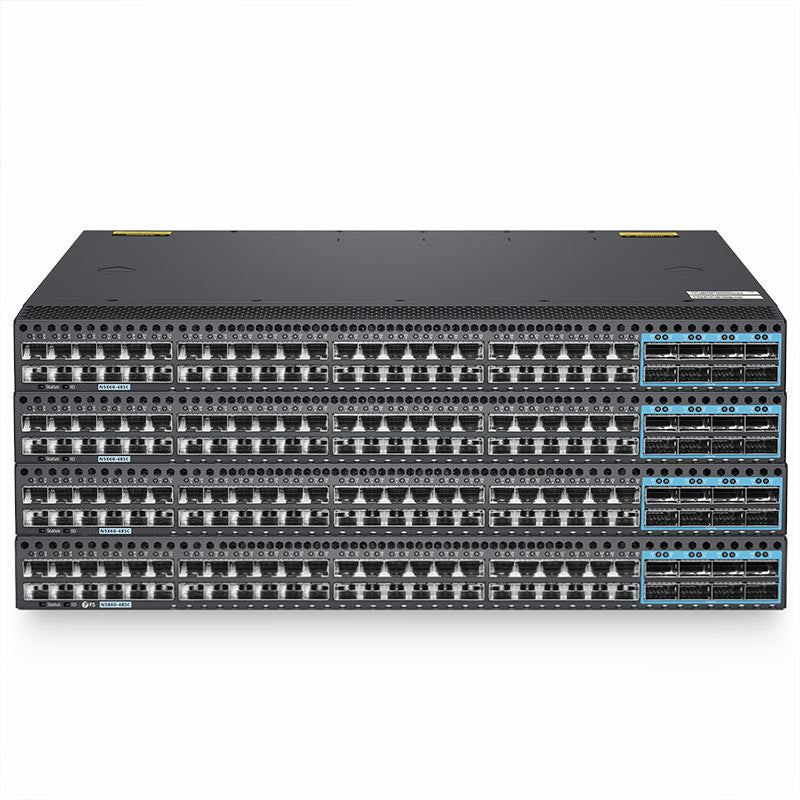

Stacking Simplifies Network Configuration
Stacking virtualization technology virtualizes multiple physical devices into a logical device, simplifying network configuration and structure, eliminating loops, and improving reliability.

Accelerate Provisioning from Days to Minutes
Simplify duplicate network configuration by automation helpers like NETCONF, Python, Zero Configuration, Ansible, gRPC, OpenFlow, greatly save daily operation costs and time.
