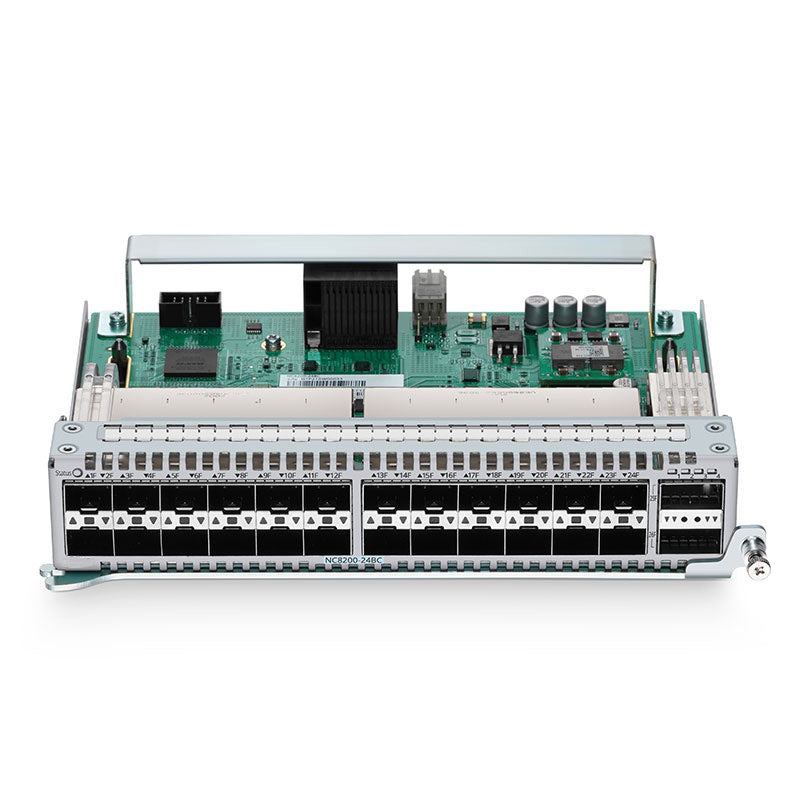

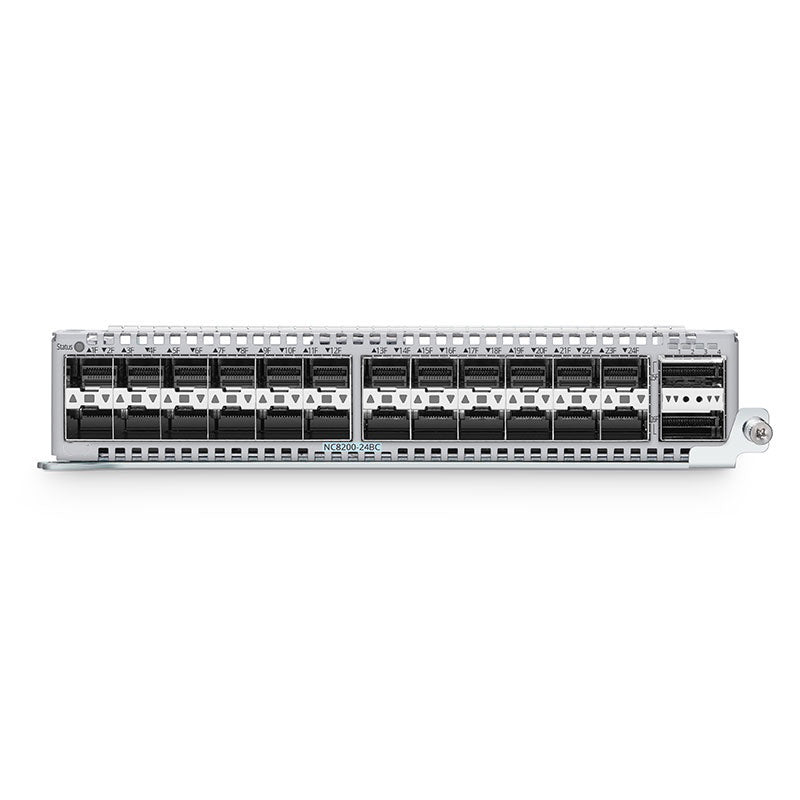

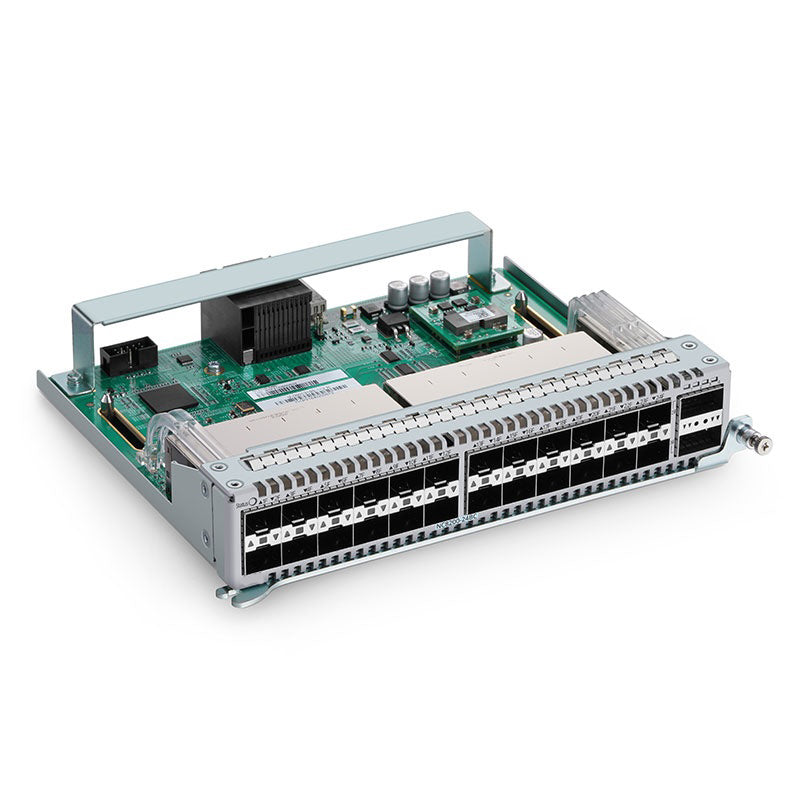

FS-NC8200-24BC, 24-Port 25Gb SFP28 Line Card, with 2 x 100Gb QSFP28 for Data Center Chassis Switch FS-NC8200-4TD

The FS-NC8200-24BC Ethernet line card supports 24x 25G SFP28 ports and 2x 100G QSFP28, offering line-rate forwarding from all ports.

The SFP28 ports are backward compatible with SFP+ modules. The QSFP28 ports are backward compatible with QSFP+ modules.

Specifications

• Ports: 24x 25G SFP28, 2x 100G QSFP28

• Matching Switch Chassis: FS-NC8200-4TD

• Hot Swapping: Not supported

• Max. Power Consumption: <96W

• Dimensions (HxWxD): 1.61''x 7.87''x 8.15'' (41x 200x 207mm)

• Weight: 1.32 lbs (0.6kg)

• Operating Temperature: 0 to 45°C (32 to 113°F)

• Storage Temperature: -40 to 70°C (-40 to 158°F)

• Operating Humidity: 10% to 90% (Non-condensing)

• Rack units: 1 RU
• Line Cards: FS-NC8200-24BC
• Switch Speeds: 24x 25G, 2x 100G
• MLAG: YES
• Stacking: YES
• VXLAN: YES
• EVPN: YES
• OSPFv2/v3: YES
• BGP4/BGP4+: YES
• NETCONF: YES
• Python, gRPC: YES
• PFC (802.1Qbb): YES
• ECN: YES
• GR: YES

Product Highlights

• Flexible 10/25/40/100GbE Interface Speeds, Support Stacking

• Achieve Reliable Links With 25G NVIDIA Mellanox NIC

• CE, Reach, RoHS, FCC, WEEE Certified


Connectivity Solutions

Data Center Content Delivery Network Solution
Replacing the border routers of CDN egress network with switches can ensure bandwidth quality, reduce traffic operation costs, and improve bandwidth operational efficiency.

Data Center Interconnect (DCI) Layer 2 Network Solution
Deploying VxLAN through DCI equipment provides Layer 2 interconnectivity between data centers across regions, enabling flexible deployment and migration of business across regions.

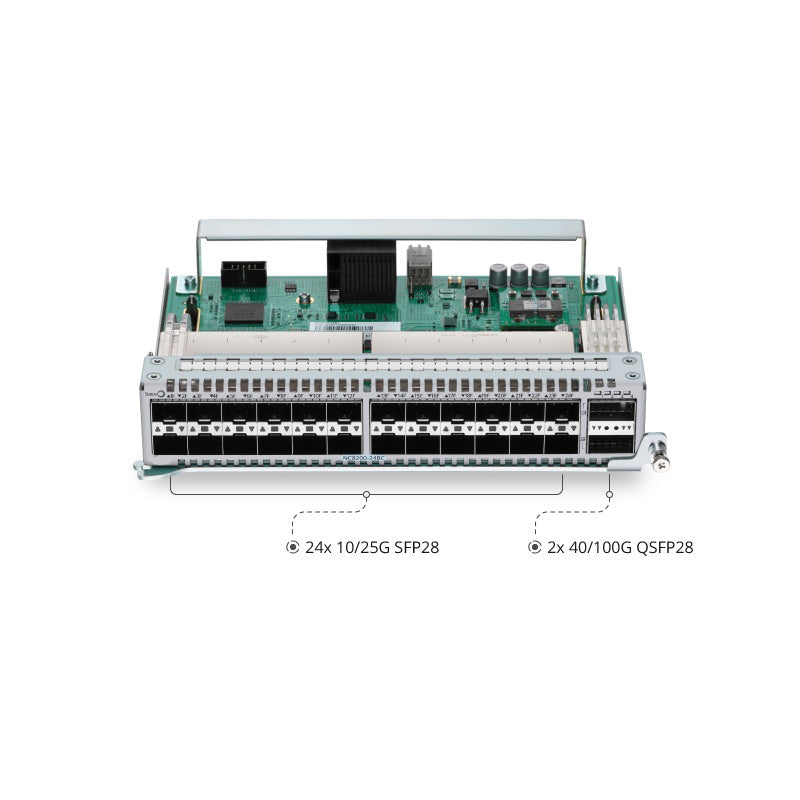

High-density 24-port 25G Line Card with 2-port 100Gb QSFP28
Fixed-configuration line card with 26 rate-selectable ports. 25G ports can operate at 10-Gbps, or 25-Gbps. 100G ports can operate at 10-Gbps, 25-Gbps, 40-Gbps, or 100-Gbps speeds.

Port Combination with Switch Chassis
FS-NC8200-24BC can offer a maximum of 96x 25G and 8x 100G ports within the FS-NC8200-4TD switch chassis that supports three types of line cards: FS-NC8200-8C, FS-NC8200-16Q and FS-NC8200-24BC.

Procedure to Install the Line Card
The entire installation process can be completed in one minute without any tools.

Stacking Simplifies Network Configuration
Stacking virtualization technology virtualizes multiple physical devices into a logical device, simplifying network configuration and structure, eliminating loops, and improving reliability.
