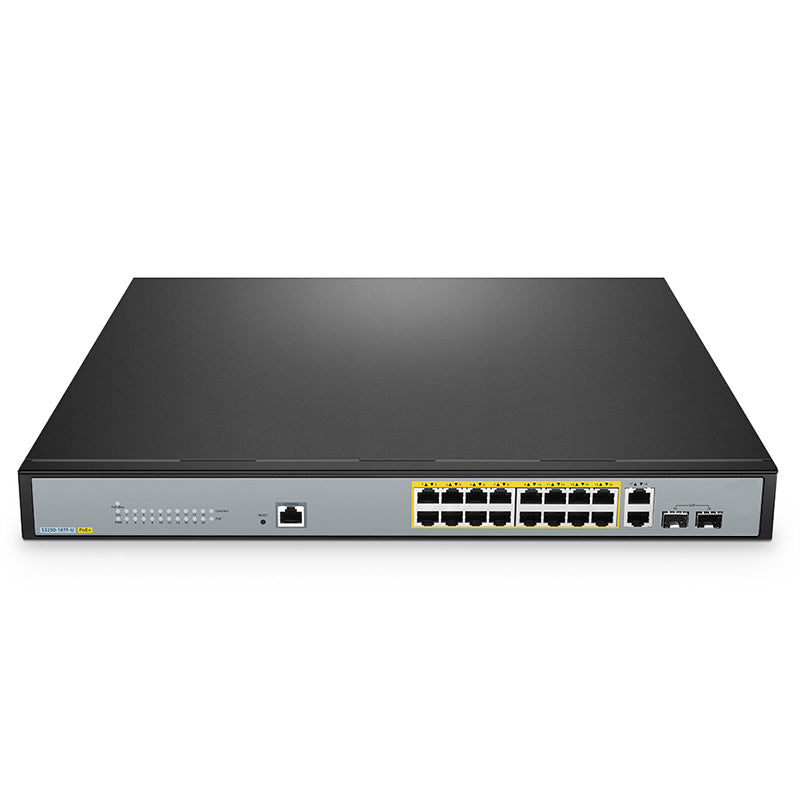

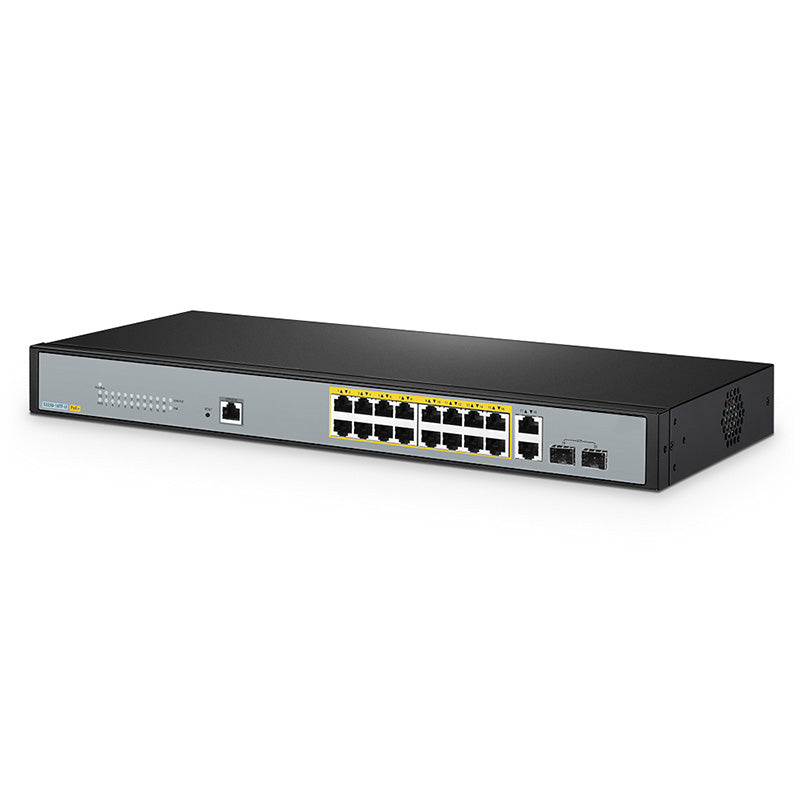

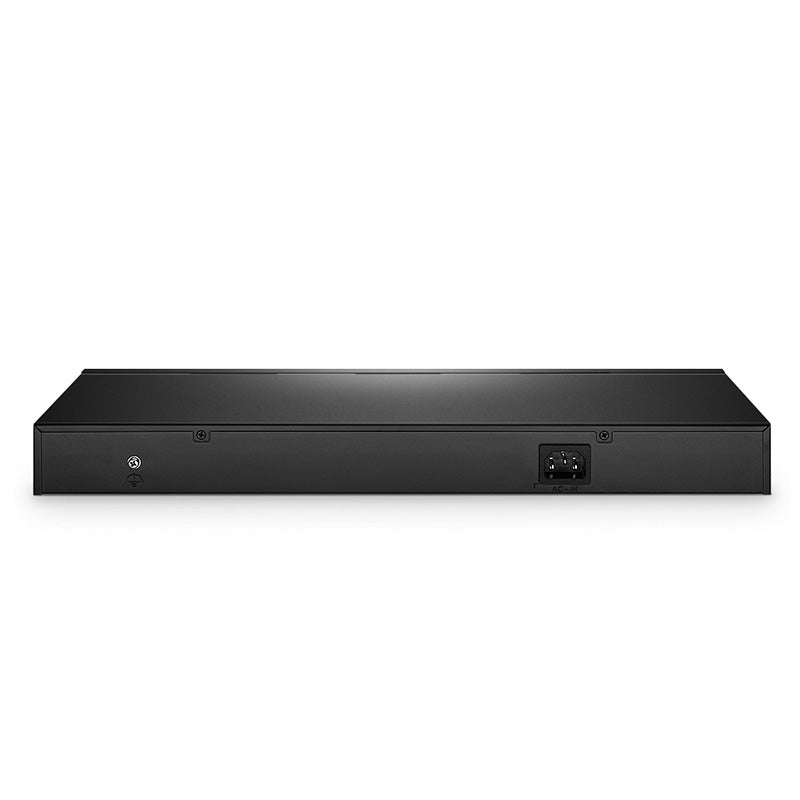

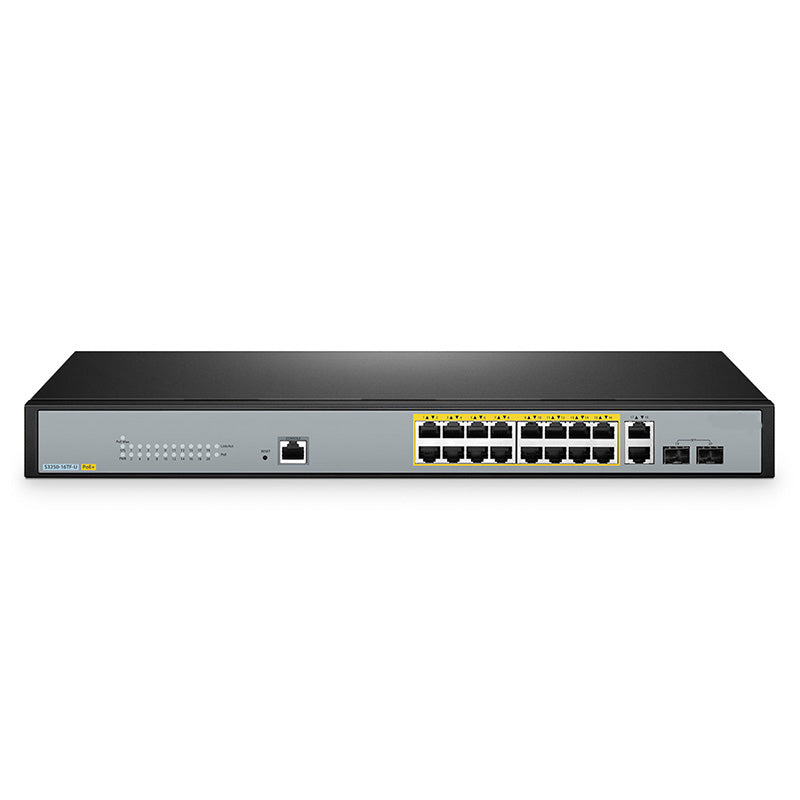

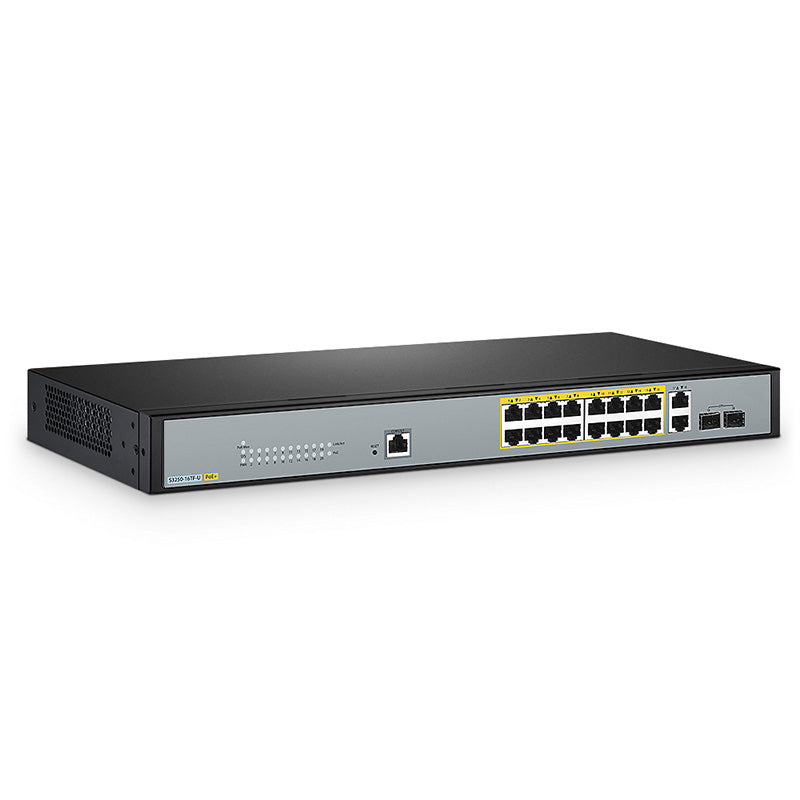

FS-S3250-16TF-U, 16-Port Gigabit Ethernet L2+ PoE++ Switch, 16 x PoE+ Ports @230W, with 2 x 1Gb RJ45, 2 x 1Gb SFP Uplinks

FS-S3250-16TF-U 16-port managed PoE+ switch is equipped 2x 10/100/1000MBASE-T PoE++ ports, 14x 10/100/1000MBASE-T PoE+ ports, with 2x 1Gb RJ45, 2x 1Gb SFP Uplinks.

2 ports support both IEEE 802.3af/at/bt (up to 90W per port) and 14 ports support both IEEE 802.3af/at (up to 30W per port) for powering attached IP phones, wireless access points, or other standards-compliant PoE, PoE+ and PoE++ end network devices.

In addition, the 2x 1G SFP ports, can provide high-speed uplink and server/storage/high-performance workstation connectivity.

With high switching performance and reliability, the product features a large cache and low transmission delay, which supports access to Ultra HD video.

Specifications

• Ports: 18x 10/100/1000BASE-T RJ45 | 2x 1G SFP

• Total Number of IPv4 Routes: 16

• Switching Capacity: 56 Gbps

• MAC Address: 16K

• Forwarding Rate: 29.76 Mpps

• Number of VLANs: 4094

• RAM: 2 Gb

• Input Range: 100-240V, 50/60Hz

• Flash Memory: 128 Mb

• Packet Buffer: 12Mbit

• Jumbo Frame: 10K

• Airflow: Left-to-Right

• Max. Power Consumption: 12W (265W with PoE)

• Operating Temperature: 0 to 45ºC (32 to 113°F)

• Fan Number: 1

• Operating Humidity: 10-90% (Non-condensing)

• PoE Standard: IEEE 802.3af/at/bt

• Mounting Options: Desktop/Rackmount

• Dimensions (HxWxD): 1.73''x17.32"x 7.01"(44x440x178mm)

• PoE Budget: 230W
• Up to 16 PoE+ Ports, Total Budget 230W

• 250m Long-Distance Power Supply

• PoE Watchdog for Remotely IP-Cam Reboot

• Support DHCP, VLAN, LACP, ACL, IMS cloud etc.

• Advanced Network Monitoring Using SFlow

• Support CLI/WEB/SNMP/SSH for Flexible Operation

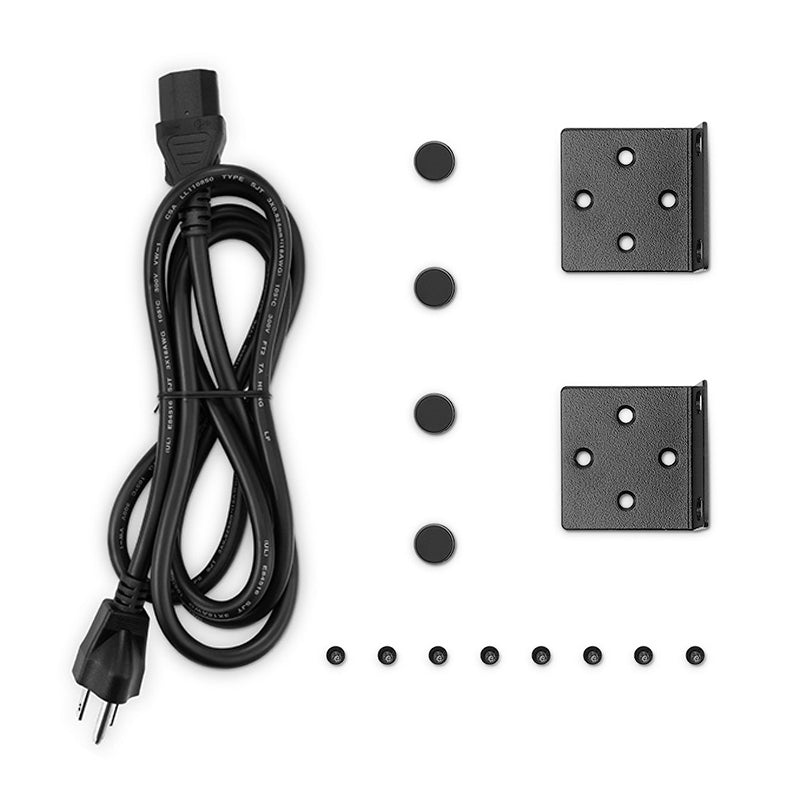

Please Note: Matching the American standard power cord as default. If you need other standard power cords, please note in the order.

Software Spotlights

High Availability and Multi-Service Support

• Support IEEE 802.3af/at/bt PoE
• Support 4K static VLAN
• Support static/LACP link aggregation
• Support IGMP Snooping
• Support static route, RIP, OSPF

Error-Free Network Configuration

• Support STP/RSTP/MSTP
• Support SNMP v1/v2c/v3
• Support Syslog, Web-based management, Telnet, SSH
• Support LLDP (802.1ab)
• Support TFTP-patterned file upload/download management

Secure and Simplified Access for Users and IoT

• Support IEEE 802.1x and Radius
• Support DHCP snooping
• Support ACL
• Support SP, WRR
• Support storm/multicast/unicast limit

Connectivity Solutions

Gigabit Port Configuration
2× 10/100/1000 Mbps PoE++ ports provide up to 90W per port, and 14 PoE+ ports provide up to 30W per port, together with 2 x 1Gb SFP slots for high-speed optical connections.

DHCP Accelerates Network Deployment
DHCP dynamically allocates IP addresses, simplifies IP address management, it saves more management time and costs and is more secure.

SNMP Simplifies Management and Monitors Failures
SNMP provides unified interfaces and protocols to manage devices in different physical spaces to improve management efficiency.
