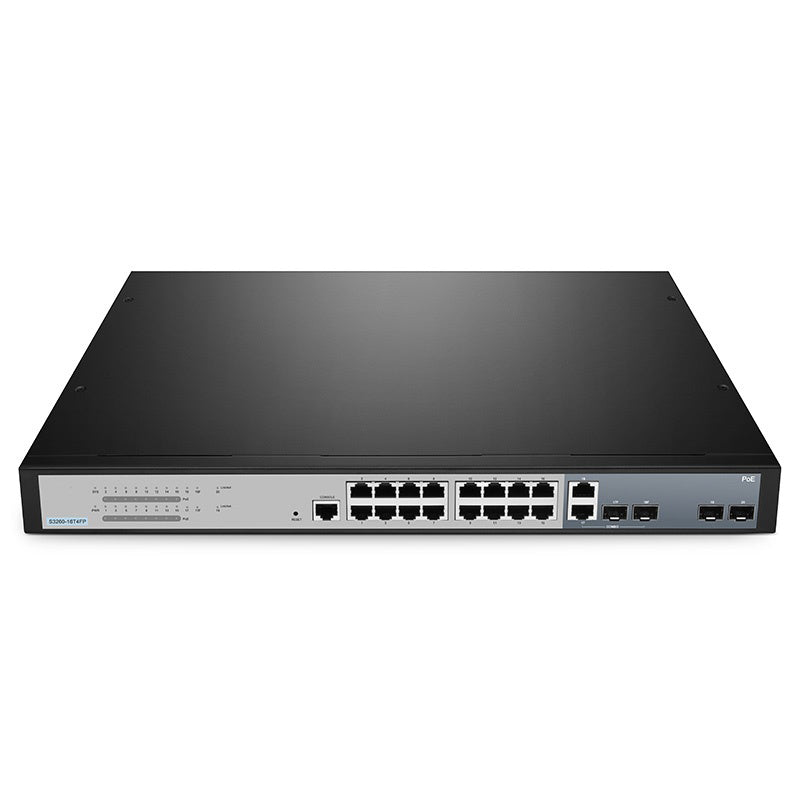

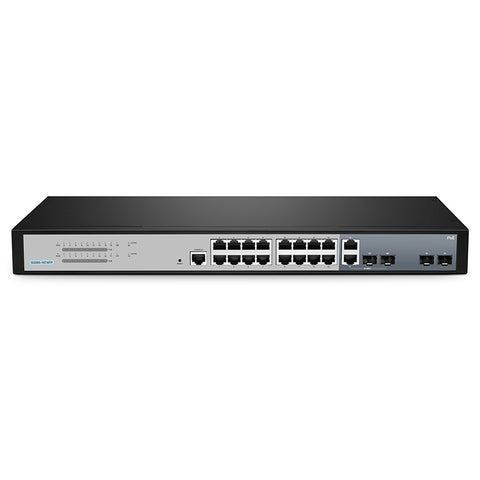

FS-S3260-16T4FP, 16-Port Gigabit Ethernet L2+ PoE+ Switch, 16 x PoE+ Ports @250W, with 2 x 1Gb SFP Uplinks and 2 x Combo SFP Ports, Support IEEE 802.3af/at

16-Port Managed PoE+ Switch is equipped with 16x 10/100/1000BASE-T ports, 2x RJ45/SFP combo ports and 2x SFP uplinks, 16x RJ45 ports support both IEEE 802.3af PoE and IEEE 802.3at PoE+ (up to 30W per port) for powering attached IP phones, wireless access points, or other standards-compliant PoE and PoE+ end network devices. 2x SFP uplink ports are provided to support connections to higher layer devices. 2x RJ45/SFP combo ports meet the different network expansion needs.

This access switch delivers a compact, cost-effective solution for carrier's IP MAN, campus and small business networks. Based on the high-performance hardware and FSOS platform, it supports functions such as ACL, QinQ and QoS. It also simplifies device and network management with both a Command-Line Interface (CLI) and a web UI. With its ability to enhance network security, reliability, and operational efficiency, this switch is an ideal choice for small organizations.

Product Highlights

• Up to 16 PoE+ Ports, Total Budget 250W

• Support ERPS, QoS, OSPF, L2 Multicast Functions, etc.

• Support ACL, AAA, 802.1X, RADIUS, TACACS+ for Security

• Support WEB/CLI/SNMP/SSH for Flexible Operation

• 1 Power Supply and 2 Built-in Fans

Specifications

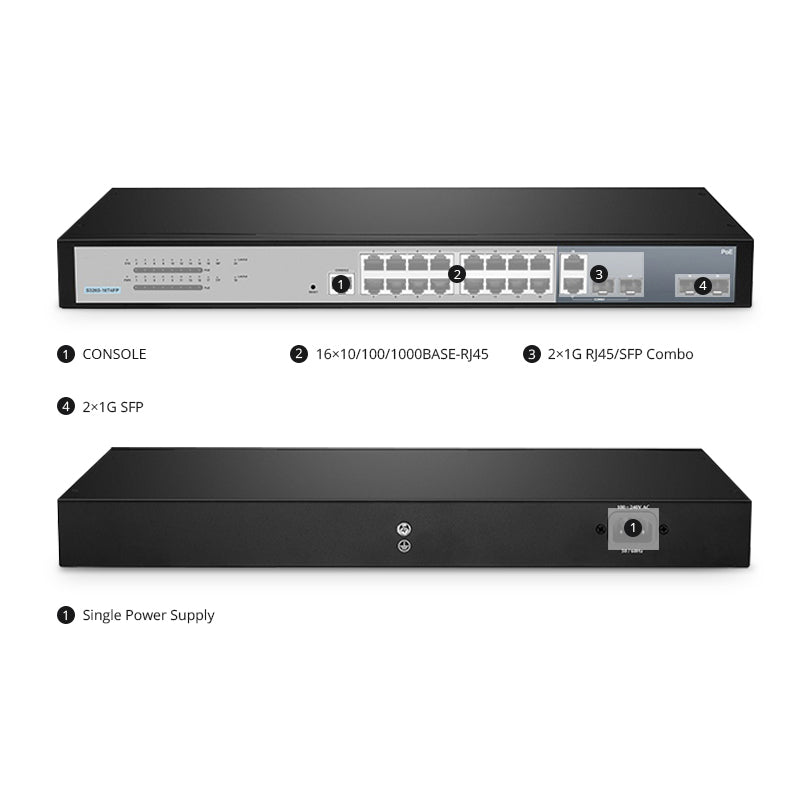

• Ports: 16x 10/100/1000BASE-T RJ45 | 2x 1G SFP, 2x 1G RJ45/SFP Combo

• RAM: 128MB

• Switching Capacity: 40 Gbps

• Jumbo Frame: 9,216

• Forwarding Rate: 30 Mpps

• MAC Address: 8K

• Flash Memory: 16MB (NOR)

• Input Voltage: 100-240VAC, 50-60Hz

• PoE Budget: 250W

• Output Voltage: 48VDC

• Packet Buffer: 0.5MB

• Max. Power Consumption: 31W (250W with PoE)

• Dimensions (HxWxD): 1.73''x17.32''x8.27'' (44x440x210mm)

• PoE Standard: IEEE 802.3af/at

• Power Supply: 1 Built-in

• Operating Temperature: 0 to 50ºC (32 to 122°F)

• Fan Number: 2 Built-in Fans

• Storage Temperature: -20 to 70℃ (-4 to 158°F)

• Airflow: Left-to-Right

• Mounting Methods: Desktop/Rackmount

Software Spotlights

High Availability and Multi-Service Support

• Support 4K Active VLAN, voice VLAN
• Support static/LACP link aggregation
• Support BPDU Guard/filtering/transparent
• Support Root Guard and Loopback detection
• Support FTP, TFTP and SFTP
• Support IGMP Snooping

Error-Free Network Configuration

• Support Web management
• Support SNMP v1, v2c, v3
• Support dual images (SPAN, RSPAN), multiple configuration file
• Support firmware auto upgrade RMON
• Support MIB-II, NTP, Ping, Traceroute, and ZTP (Zero Touch Provisioning)
• Support LLDP (802.1ab)
• Support sFlow

Secure and Simplified Access for Users and IoT

• Support IEEE 802.1x, Radius and TACACS+ perfect security authentication mechanisms
• Support storm/multicast/unicast limit
• Support perfect ring detection mechanism
• Support IP Source Guard, DoS Protection, Anti-attack from DDoS
• Support L2/L3/L4 ACL flow identification and filtration
• Support IPv4/IPv6/MAC/ARP ACL

Connectivity Solutions

Gigabit Port Configuration
16× PoE+ 10/100/1000 Mbps RJ45 ports provide up to 30W per port and total PoE power budget of 250W, together with 4× Gigabit SFP slots for high-speed optical connections.

Smart PoE+ Support
Compliant with IEEE 802.3af/at PoE standards, it can automatically detect and provide the required power for your PoE devices, which can deliver up to 15.4W and 30W power per port.

ERPS (Ethernet Ring Protection Switching) Enables Failover Protection in Sub-50ms
ERPS implements loop blocking and link recovery faster than STP on the main device, and can effectively add redundancy and up-time protection to any network.

OSPF (Open Shortest Path First) for Simplified Network Management
OSPF simplifies topologies by splitting autonomous systems into areas, automatically calculates and renews the shortest path, and transmits link status information, reducing labor hours.

Voice VLAN Gives Priority to Guaranteeing VoIP Quality
Voice VLAN improves voice traffic transmission priority and guarantee voice quality by assigning voice traffic to a dedicated VLAN without competing with other traffic.

Multiple Management Methods for Easy Network Maintenance
Supporting SNMP, CLI, WEB, SSH, and other methods to deliver a streamlined experience for the device's convenient maintenance and network management without additional cost.
