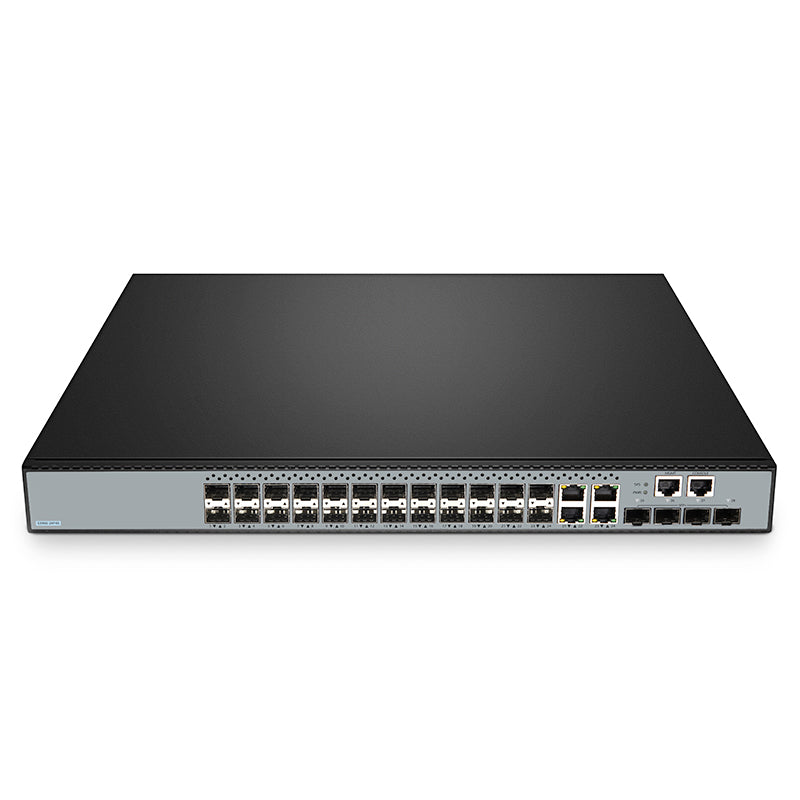

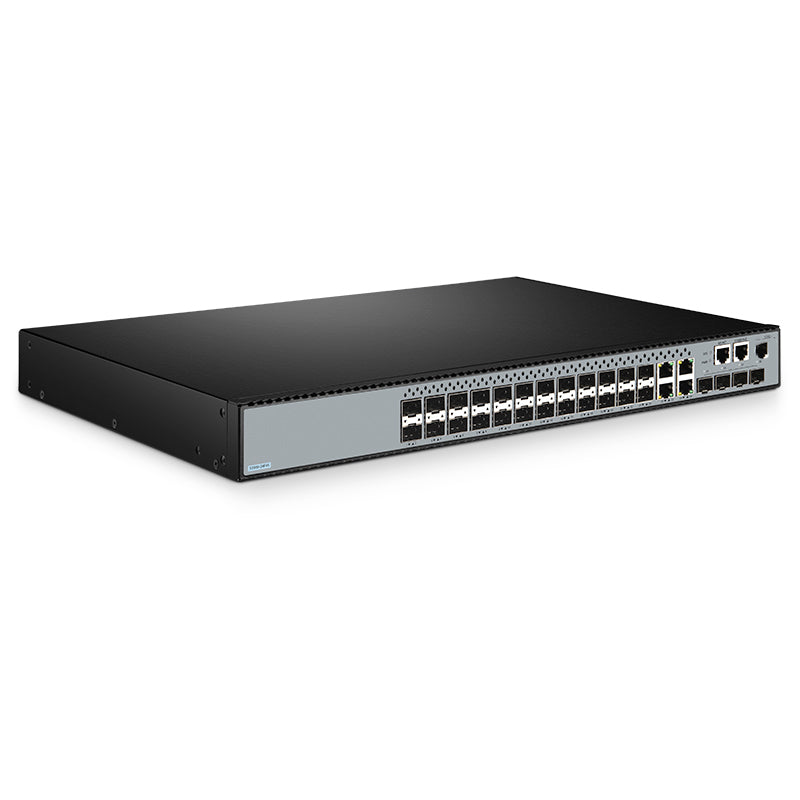

FS-S3900-24F4S, 20-Port Gigabit Ethernet L2+ Switch, 20 x 1Gb SFP, 4 x Gigabit RJ45/SFP Combo, with 4 x 10Gb SFP+ Uplinks, Stackable Switch, Broadcom Chip

The S3900-24F4S 20-port Ethernet L2+ stackable switch has 20x 1Gb SFP, 4x Gigabit Combo, with 4x 10Gb SFP+ Uplinks.

This switch adopts the most cutting-edge Broadcom chip and can provide 128 Gbps switching capacity and 95 Mpps forwarding rate. With 1 and 10 Gb connections and advanced QoS to the edge of the network, while supporting simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI.

The S3900 series is an ideal Gigabit access and aggregation switch, designed for small and medium-sized enterprises, enterprises, mid-market and branch networks, which can reduce the total cost of ownership.

Product Highlights

• Broadcom BCM56151 Chip, Support Up to 6 Units Stacking

• 1+1 Redundant Power Supplies, Smart Fans

• Support QoS, LACP, ACL, VLANs, DHCP, ERPS, etc.

• Support SSH, ACL, AAA, 802.1X, RADIUS, TACACS+, etc. for Security

• Support CLI/WEB/SNMP/SSH for Flexible Operation

Specifications

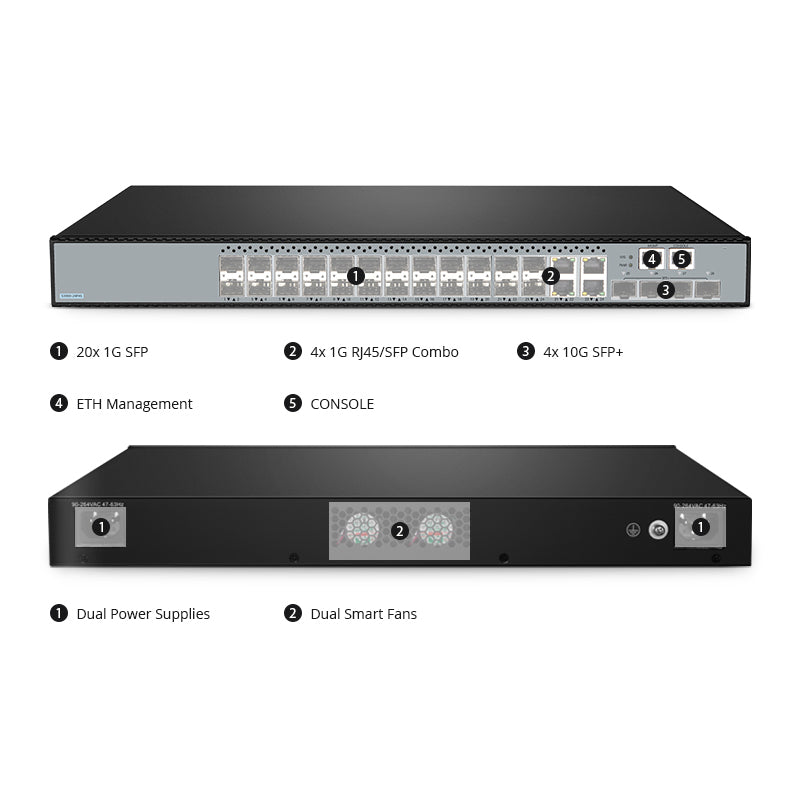

• Ports: 20x 1G SFP, 4x 1G RJ45/SFP Combo | 4x 10G SFP+

• Switching Capacity: 128 Gbps

• Switch Chip: Broadcom BCM56151

• Forwarding Rate: 95 Mpps

• Power Supplies: 2 (1+1 Redundancy) Built-in, AC

• Packet Buffer: 1.5MB

• Fans: 2 built-in, Front-to-Back

• Jumbo Frame: 9,000

• Dimensions (HxWxD): 1.73''x17.32''x11.02''(44x440x280mm)

• MTBF: >100,000 Hours

• Weight: 9.41 lbs (4.27kg)

• MAC Address: 16K

• Input Voltage: 100-240VAC, 50-60Hz

• IPv4/IPv6 Routers: 128/64

• Input Current: 1.5A

• Number of VLANs: 4K

• Max. Power Consumption: 43W

• RAM: 512MB

• Operating Temperature: 0 to 45ºC (32 to 113°F)

• Flash Memory: 64MB
• Switching Capacity: 128Gbps
• Forwarding Rate: 95 Mpps
• Power Supplies: 2 (1+1 Redundancy) Built-in, AC
• Max. Power Consumption: 43W
• Stacking: YES
• LACP: YES
• 802.1X: YES

Connectivity Solutions

Features

Improve Management with an Integrated Campus Network
Virtual deployment of dual switches, extensible architecture and intelligent O&M offers a simple, flexible, and high-performance network for serving all scenarioss on campus.

1G Switch with High-speed 10G Uplink
1G SFP ports downlink for access layer, and 10G SFP+ ports for uplinks or virtual stacking to provide flexible network deployment.

Support 6 Units Stacking to Increase Port Density and Simplify Management
Four 10G ports can be used for stacking via transceivers or DAC/AOC cables.

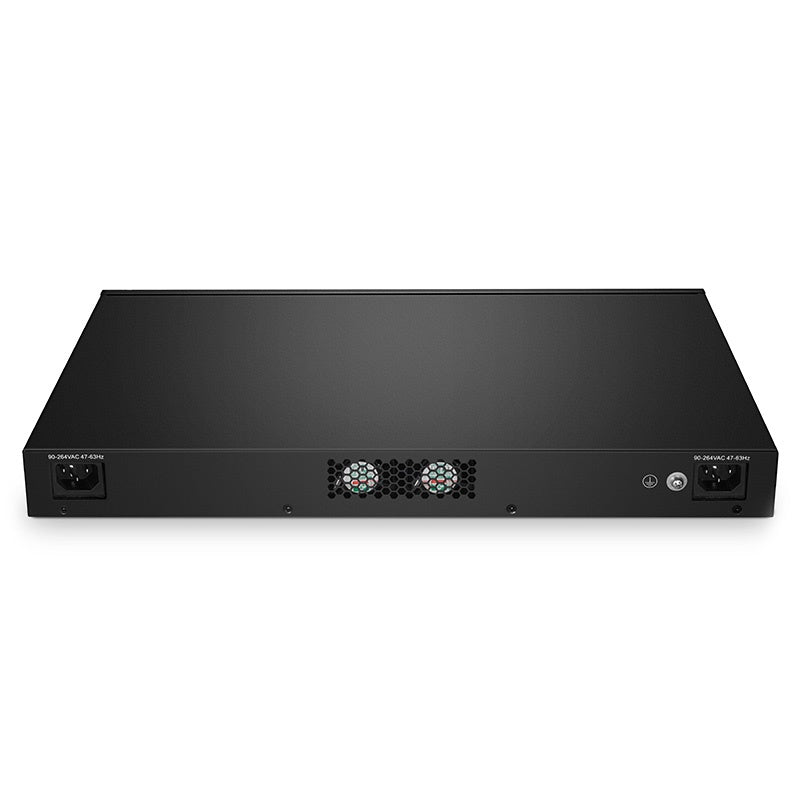

Dual Redundant Power Supplies and Smart Fans
1+1 Redundant PSUs ensure the continuous normal operation of switch, variable-speed fans with front-to-back airflow for superior cooling, noise and power reduction.

ERPS Enables Failover Protection in Sub-50ms
ERPS (Ethernet Ring Protection Switching) implements loop blocking and link recovery faster than STP on the main device, and can effectively add redundancy and up-time protection to any network.

Block the RPL owner to avoid sending data endlessly in a loop

Unblock RPL owner to ensure non-stop traffic forwarding

QoS (Quality of Service) for Better Traffic Control
Provides different priorities to different applications, users, or data flows to reduce packet loss, latency, and jitter on a network.

Comprehensive Security Policy Protects from Network Threats
With network-level security and stability capabilities like SSH, ACLs, AAA, 802.1X, etc., it defends against network threats for enterprises, campuses, and the financial industry.
