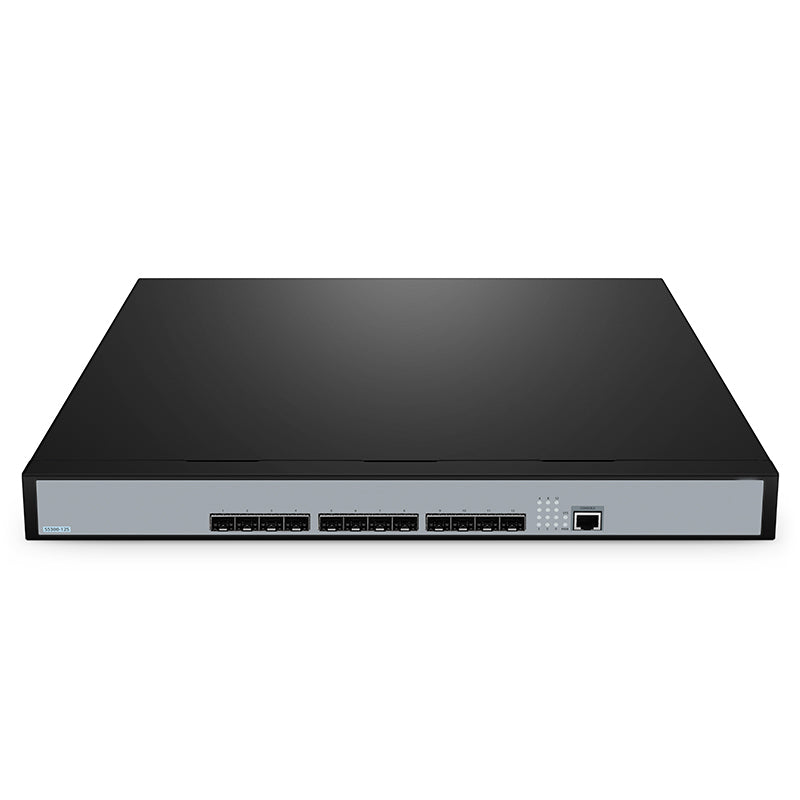

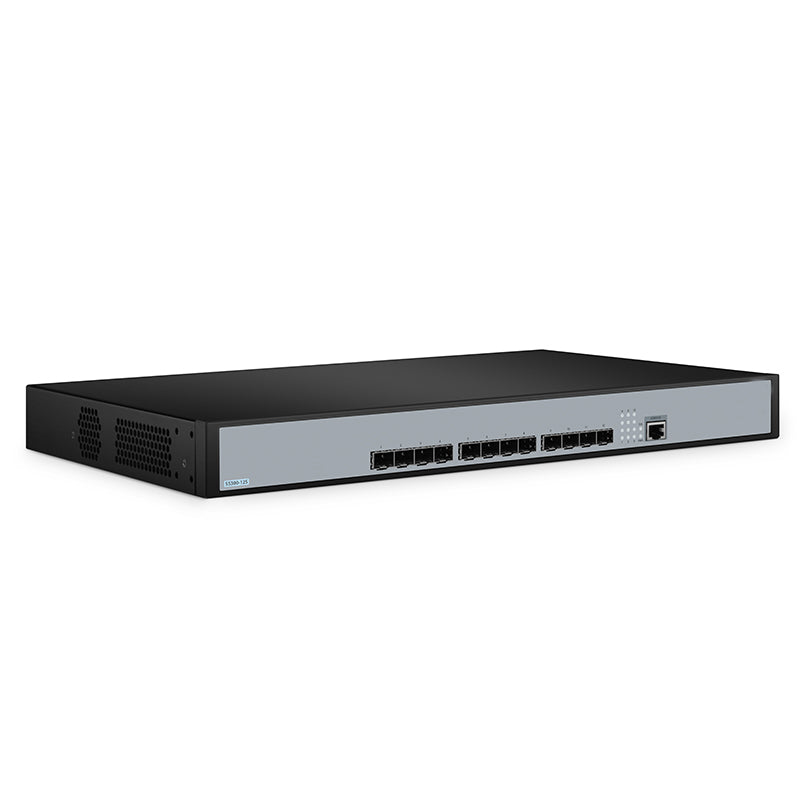

FS-S5300-12S, 12-Port Ethernet L3 Switch, 12 x 10Gb SFP+, Support Stacking

The S5300-12S Ethernet layer 3 switch features 12x 10Gb SFP+. It also supports strong ACL, selective QinQ, 1:1 and N:1 VLAN switching, Ethernet OAM, carrier QoS, and the industrial 10G Ethernet ring network. These functions make the product meet the need of various complex situations.

FS-S5300-12S is a new generation of full gigabit smart switch for IP metropolitan area networks, government and enterprise networks, and can be used for scenarios that require high-speed transmission and long-distance connectivity, such as data centers, remote offices and WAN extensions.

Specifications

• Ports: 12x 10G SFP+

• MAC Address: 32K

• Switching Capacity: 240 Gbps

• Latency: 8.13μs/7.92μs

• Forwarding Rate: 178.6 Mpps

• VLAN: 4K

• Packet Buffer: 4MB

• ARP: 8K

• Flash Memory: 16MB

• Jumbo Frame: 9216

• DRAM: 512MB

• MTBF: >100,000 Hours

• Power Supply: 1+1 Built-in

• IPv6 Routes: 4K

• Fan Number: 2 Built-in

• IPv4 Routes: 12K

• Airflow: Left-to-Right

• Operating Temperature: 0 to 50ºC (32 to 122°F)

• Dimensions (HxWxD): 1.73''x17.3''x11.1'' (44x440x280mm)

• Storage Temperature: -40 to 85ºC (-40 to 185°F)
• Support 8 Units Virtual Stacking

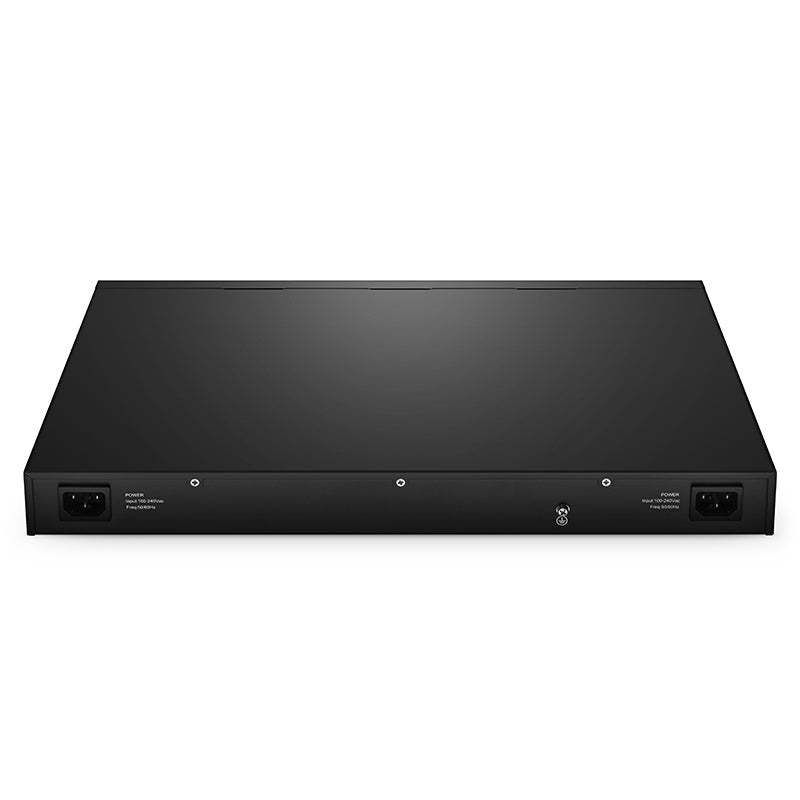

• 1+1 Redundant Power Supplies, 2 Built-in Fans

• Support Layer 3 Features (RIP, OSPF, VRRP, BGP, etc.)

• Support SSH, ACL, 802.1X, RADIUS, TACACS+, etc. for Security

• Support WEB/CLI/SNMP/SSH/IS-IS for Flexible Operation

• Network Monitoring through Sampled Flow (sFlow)

• Support IPv4/IPv6 Dual-stack for Future Network Expansion

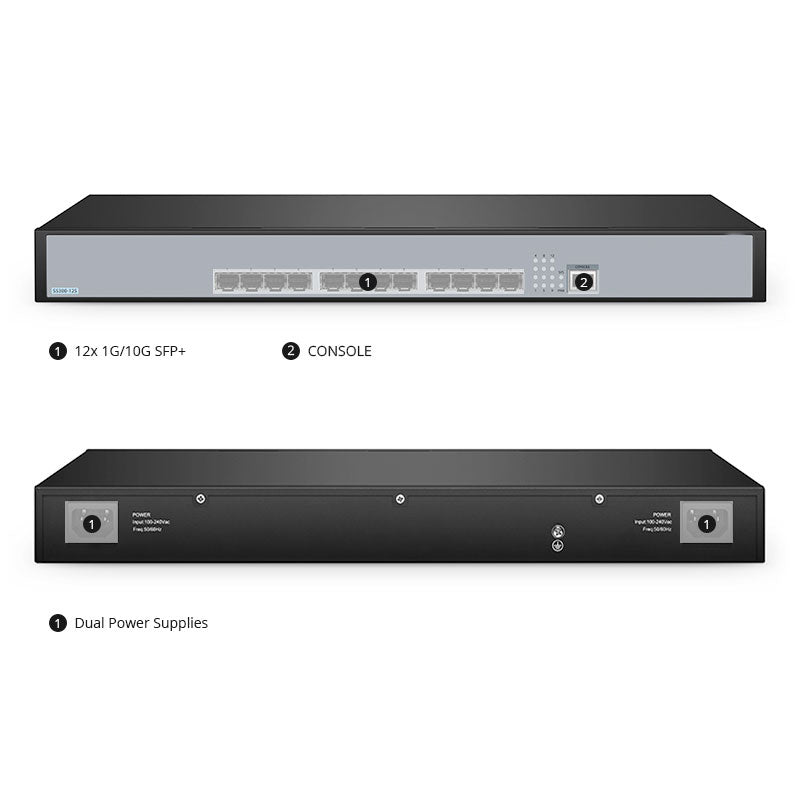

• SFP+ Ports: 12x 10G SFP+
• Management Layer: L3
• Stacking or MLAG: STACKING
• VLAN, QoS, IGMP Snooping, LACP: YES
• Static Routing, RIP, OSPF, BGP: YES

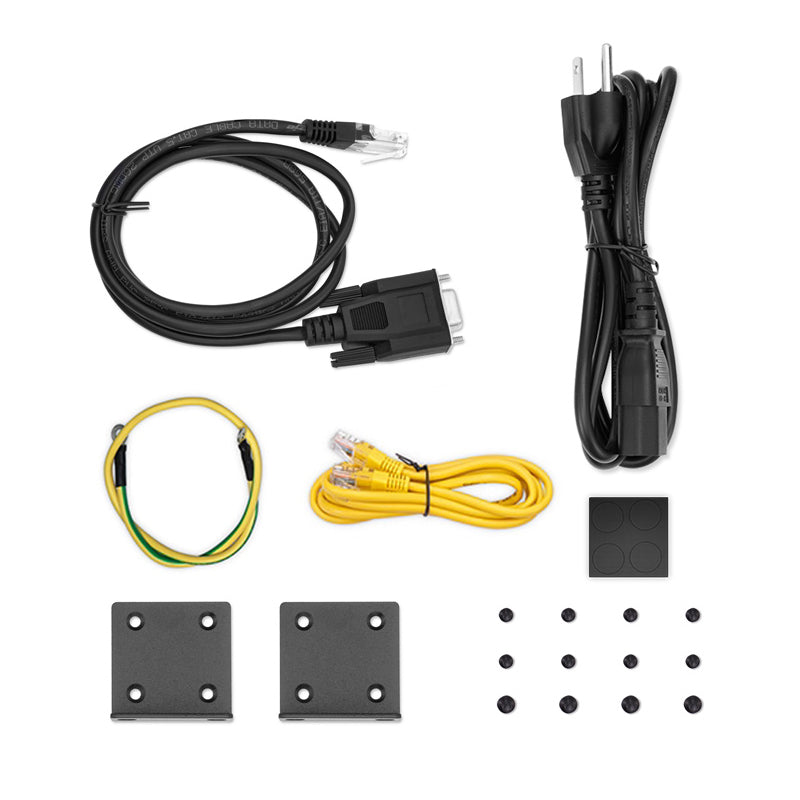

Please Note: Matching the American standard power cord as default. If you need other standard power cords, please note in the order.

Software Spotlights

High Availability and Multi-Service Support

• Support Static/LACP link aggregation, lnterface backup
• Support 8 units virtual-stacking
• Support URPF, LLDP, VRRP
• Support 1+1 power backup, Dying gasp
• Support PIM-SM, PIM-DM, IGMP v1/v2/v3
• Support IGMP Snooping, IGMP Fast Leave, MVR, IGMP filte

Error-Free Network Configuration

• Support industry-level EAPS and ERPS
• Support 802.1D (STP), 802.1W (RSTP) and 802.1S (MSTP)
• Support BPDU guard, root guard and loopback guard
• Support IPv6 Static Routing, RIPng, OSPFv3, IS-IS
• Support DHCP server/relay
• Support SNMP V1/V2/V3

Secure and Simplified Access for Users and IoT

• Equipment-level security
• Perfect security authentication mechanisms
• Support perfect ring detection mechanism
• Support port isolation, DHCP-Snooping TFTP-patterned file upload/download management
• Support TFTP, FTP
• Support NTP, SPAN, RSPAN

Connectivity Solutions

High Performance Full 10 Gigabit Core Switch
12 SFP+ ports for core and access layer to boost traffic flow and network performance.

Supports Virtual Stacking, Flexible Networking Performance
8 units between same models stacking to increase bandwidth for future network expansion, and simplify management.

Traditional 3-Tier Design of Core, Aggregation, and Access
This layered approach, the foundation of the enterprise networks design, seeks to improve scalability, performance, flexibility, resiliency, and maintenance.

QoS (Quality of Service) for Better Traffic Control
Provides different priorities to different applications, users, or data flows to reduce packet loss, latency, and jitter on a network.

ERPS (Ethernet Ring Protection Switching) Enables Failover Protection in Sub-50ms
ERPS implements loop blocking and link recovery faster than STP on the main device, and can effectively add redundancy and up-time protection to any network.
