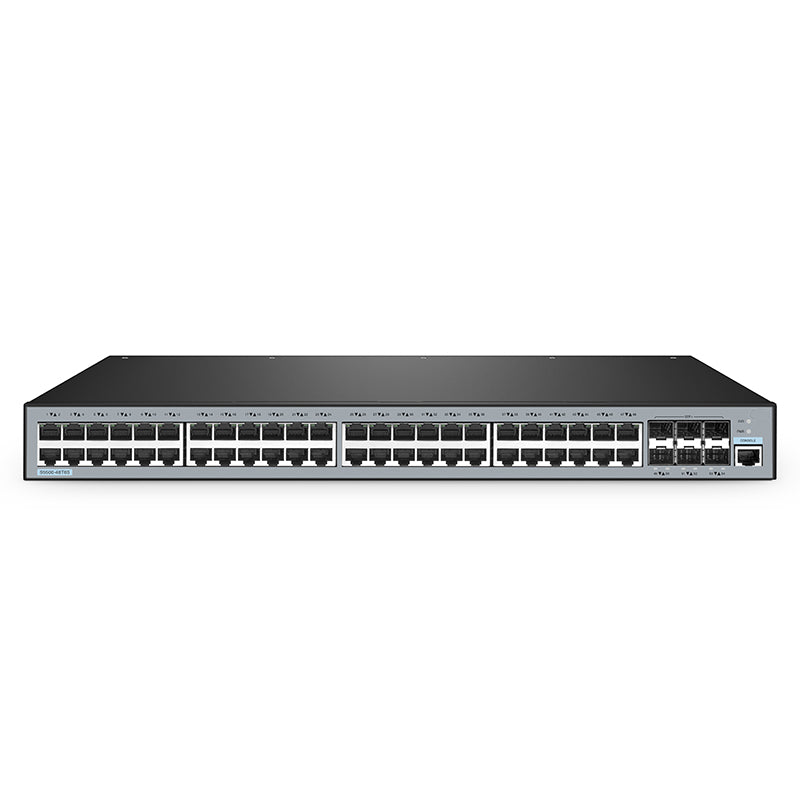

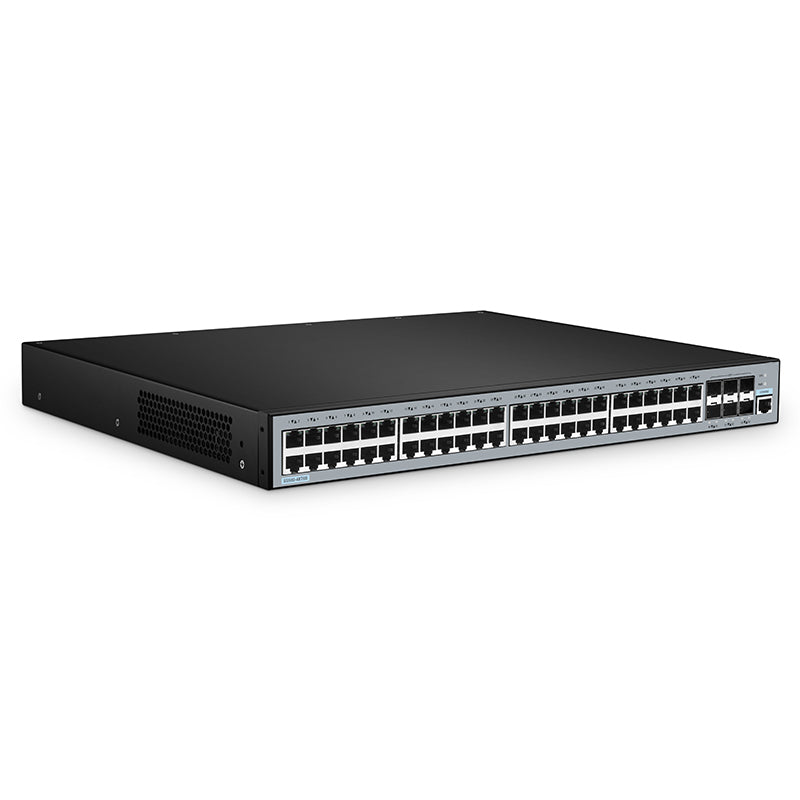

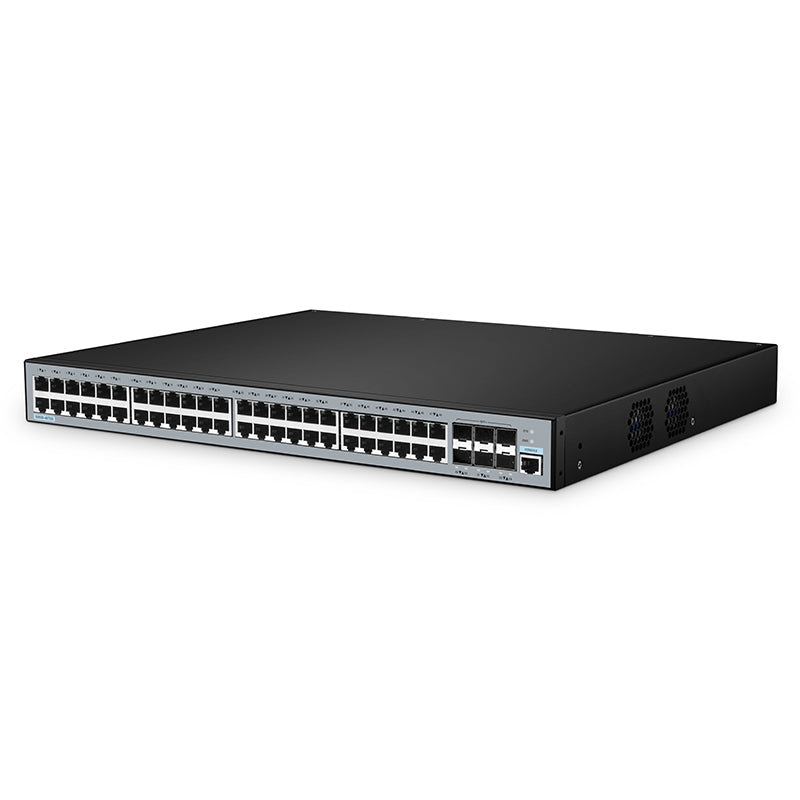

FS-S5500-48T6S, 48-Port Gigabit Ethernet L3 Switch, 48 x Gigabit RJ45, with 6 x 10Gb SFP+ Uplinks, Support Stacking

The FS-S5500-48T6S Ethernet layer 3 switch features 48x Gigabit RJ45 downlinks, and 6x 1G/10G SFP+ uplinks that all support virtual stacking.

It is packed with redundant hot-swappable AC power supplies and variable-speed axial fans for superior processing performance and network reliability. It also supports non-stop upgrade, continuous forwarding, graceful restarting and redundancy protection.

Specifications

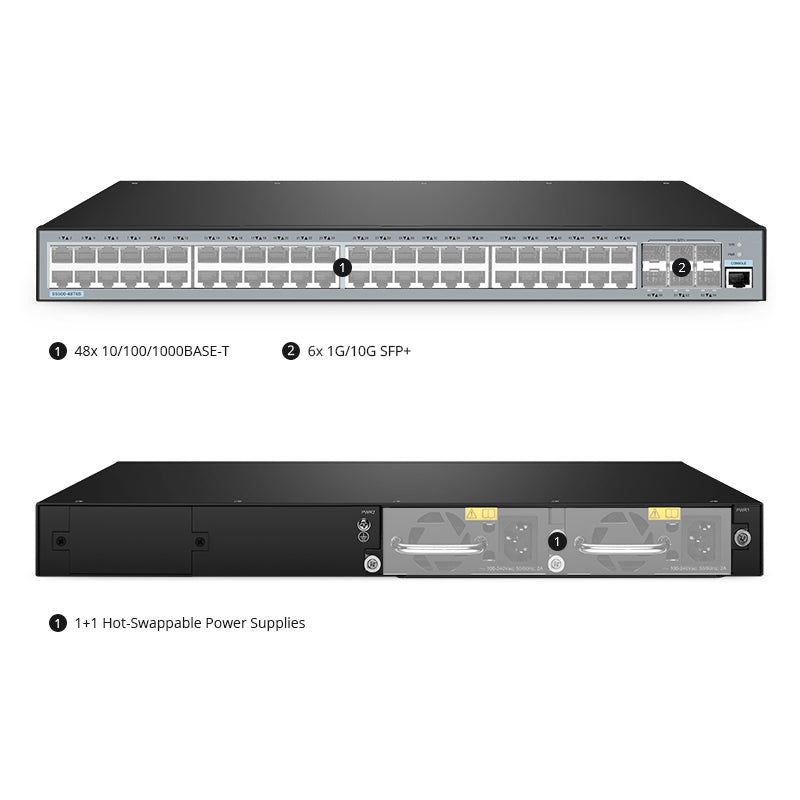

• Ports: 48x 10/100/1000BASE-T RJ45 | 6x 1G/10G SFP+

• Switching Capacity: 216 Gbps

• Power Supplies: 2 (1+1 Redundancy) Hot-swappable, AC

• Forwarding Rate: 162 Mpps

• Fans: 2 Built-in, Left-to-Right

• Packet Buffer: 2MB

• Dimensions (HxWxD): 1.73''x17.3''x13.78'' (44x440x350mm)

• Jumbo Frame: 9K

• Weight: 13.67 lbs (6.2kg)

• MAC Address: 32K

• Input Voltage: 100-240VAC, 50-60Hz

• IPv4/IPv6 Routes: 12K/4K

• Input Current: 2A

• Number of VLANs: 4K

• Max. Power Consumption: 55W

• DRAM: 512MB

• Operating Temperature: 0 to 45ºC (32 to 113°F)

• Flash Memory: 16MB
• Ports: 48x 10/100/1000BASE-T; 6x 10G SFP+
• Switching Capacity: 216 Gbps
• Forwarding Rate: 162 Mpps
• Power Supplies: 2 (1+1 Redundancy); Hot-swappable, AC
• Fans: 2 Built-in, Left-to-Right
• Max. Power Consumption: 55W
• Stacking: Yes
• 802.1X: Yes

Product Highlights

• Support 8 Units Virtual Stacking

• 1+1 Hot-swappable AC Power Supplies, 2 Smart Fans

• Support Layer 3 Features (RIP, OSPF, VRRP, BGP, BFD, etc.)

• Support SSH, ACL, 802.1X, RADIUS, TACACS+, etc. for Security

• Support WEB/CLI/SNMP/SSH/IS-IS for Flexible Operation

• Support IPv4/IPv6 Dual-stack for Future Network Expansion

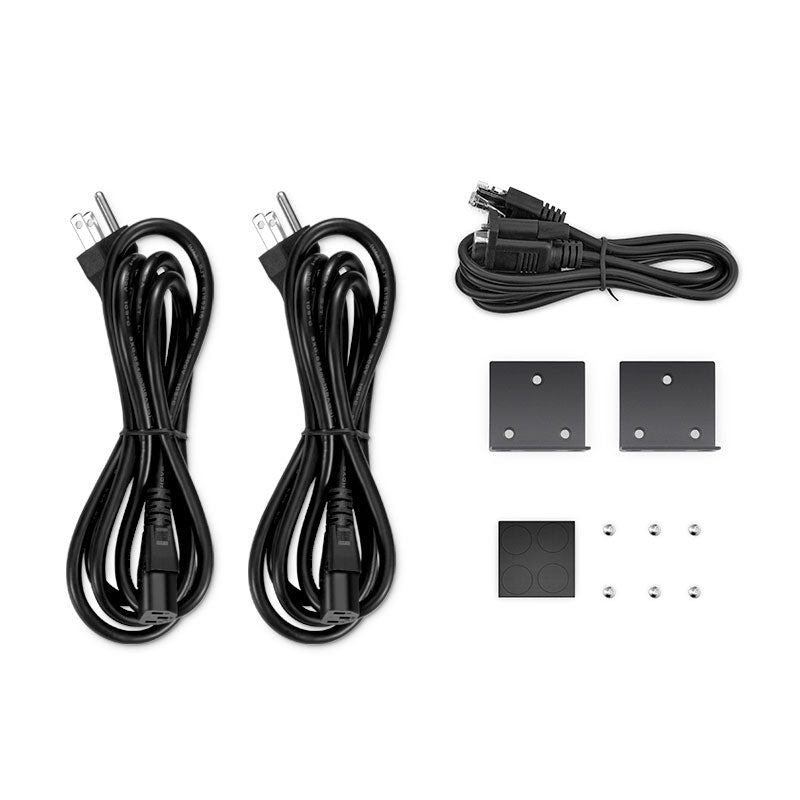

Please Note: Matching the American standard power cord as default. If you need other standard power cords, please note in the order.

Software Spotlights

Resiliency and High Availability

• Redundant, hot-swappable power supplies
• 8 units virtual-stacking
• IEEE 802.3ad Link Aggregation (LACP)
• Virtual Router Redundancy Protocol (VRRP)
• Graceful protocol restart (OSPF)
• Ethernet Ring Protection Switching (ERPS)
• Spanning Tree Protocol (STP)
• Rapid Spanning Tree Protocol (STP)
• IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
• Border Gateway Protocol (BGP)
• Routing Information Protocol (RIPng)

Security

• NAC: 802.1X, MAC authentication
• SSH, ACLS, RADIUS, TACACS+, Local Authentication
• Dynamic ARP Inspection (DAI), Static ARP
• IP Source Guard (IPSG)
• DHCP Snooping
• BPDU guard, root guard, and loopback guard

Management

• Command-Line Interface (CLI)
• Port isolation, DHCP-Snooping TFTP-patterned file upload/download management
• SNMP v1/v2/v3, FTP/TFTP/HTHP
• Remote monitoring (RMON)
• Network Time Protocol (NTP)
• DHCP server, and DHCP relay
• IEEE 802.1AB Link Layer Discovery Protocol (LLDP)

Connectivity Solutions

High-Density Ports Meet Diverse Network Needs
48 auto-sensing ports allow to connect multiple devices according to different bandwidth, offering more flexible network connection.

Supports Virtual Stacking, Flexible Networking Performance
8 units between same models stacking to increase bandwidth for future network expansion, and simplify management.

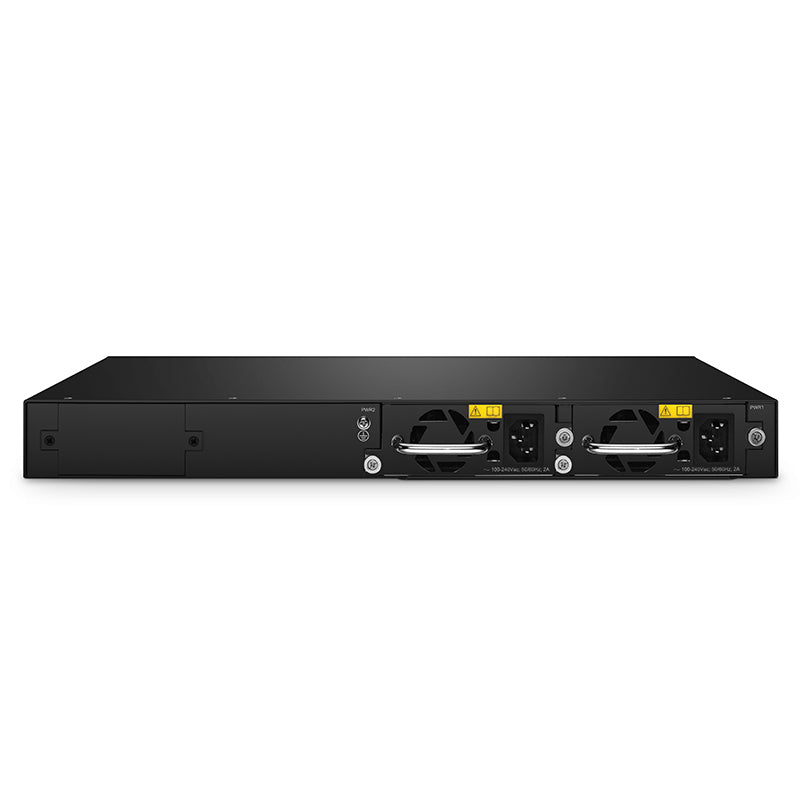

1+1 Hot-Swappable Power Supplies and 2 Smart Fans
The dual power supplies can be replaced without shutting down the system, and the variable-speed fans with left-to-right airflow automatically adjust fan speed to reduce power draw.

QoS (Quality of Service) for Better Traffic Control
Provides different priorities to different applications, users, or data flows to reduce packet loss, latency, and jitter on a network.

Voice VLAN Gives Priority to Guaranteeing VoIP Quality
Voice VLAN makes VoIP do not have to contend with all the broadcasts and other traffic from the data VLAN, ensuring it is transmitted preferentially, reducing packet loss and latency.
