FS-S5850-16T16BS2Q, 16-Port Gigabit Ethernet L3 Switch, 16 x Gigabit RJ45, with 8 x 10Gb SFP+, 8 x 25Gb SFP28 and 2 x 40Gb QSFP+, Support MLAG
FS-S5850-16T16BS2Q, 16-Port Gigabit Ethernet L3 Switch, 16 x Gigabit RJ45, with 8 x 10Gb SFP+, 8 x 25Gb SFP28 and 2 x 40Gb QSFP+, Support MLAG

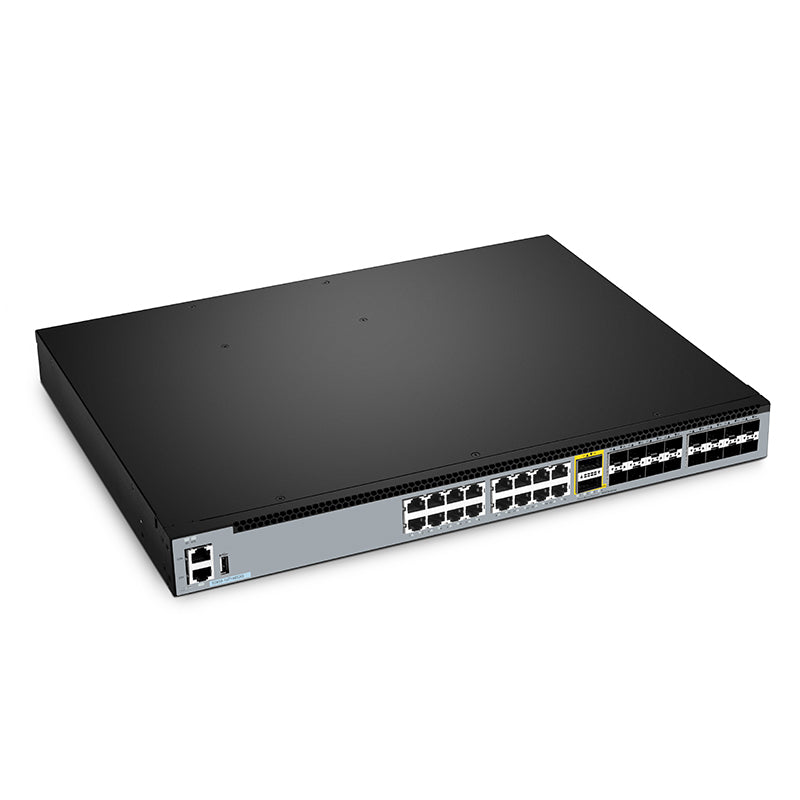

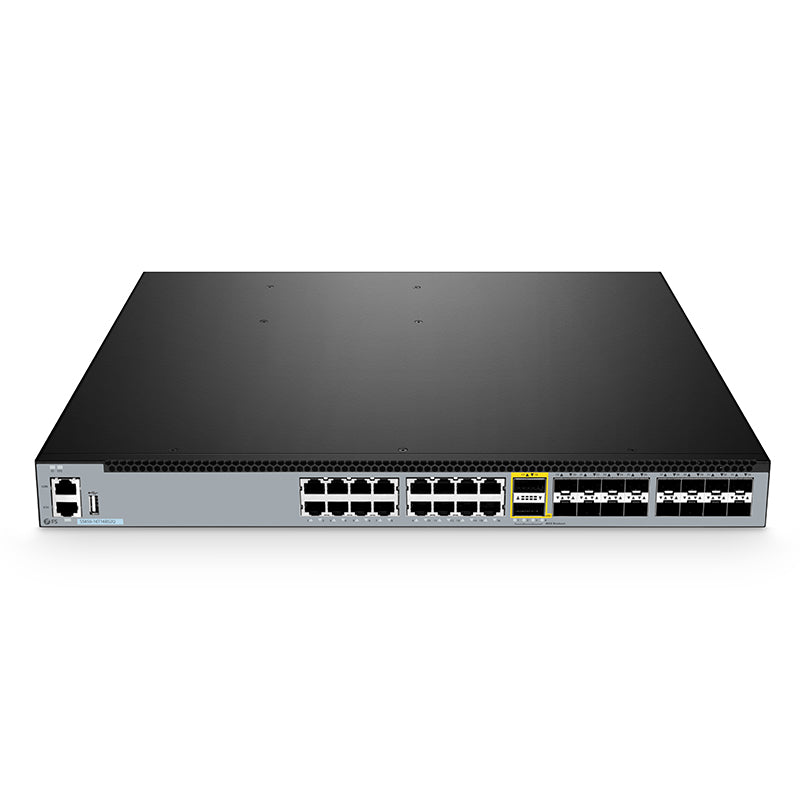

FS-S5850-16T16BS2Q is a high-performance Layer 3 Ethernet routing switch with 16x 10/100/1000BASE-T RJ45, 8x 10Gb SFP+, 8x 25Gb SFP28 ports and 2x 40Gb QSFP+ in a compact 1U form factor. It delivers 752 Gbps switching capacity and 540 Mpps forwarding rate.
It is packed with redundant hot-swappable power supplies and variable-speed axial fans for superior processing performance.
With its diverse set of deployment options, including fabric, Layer 3, as well as spine and leaf, the switch is ideal for next-generation enterprise, data center, Metro, and HCI (Hyper-Converged Infrastructure) networks.
Product Highlights
- Support MLAG to Enhance Reliability and Uninterrupted Services

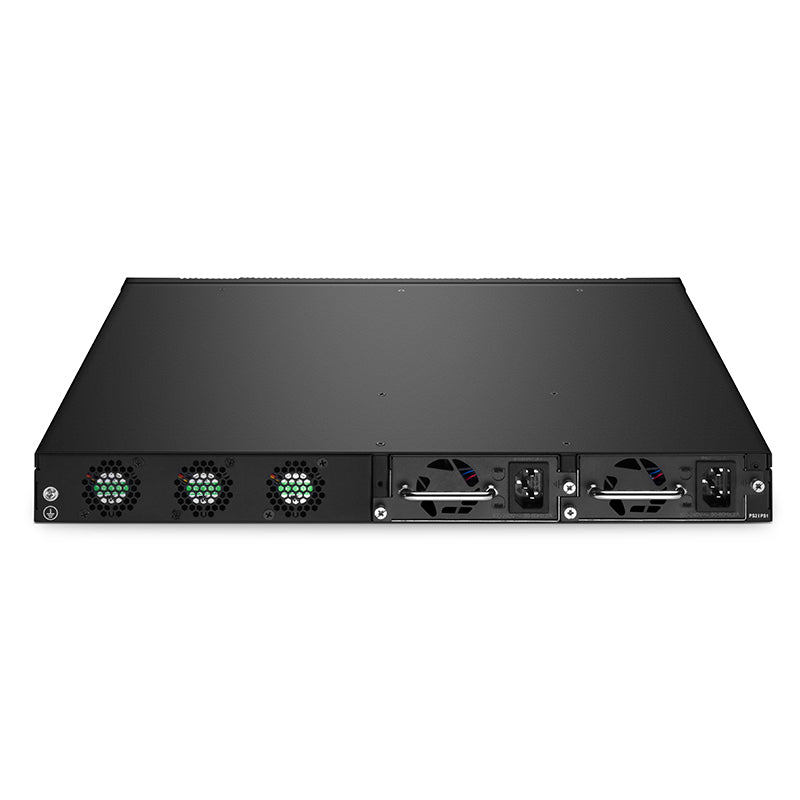

- 1+1 AC Hot-swappable Power Supplies, 3 Smart Fans
- Support MPLS & VXLAN-BGP-EVPN, OSPF, VRRP, DHCP Relay, etc.
- Support 802.1X, RADIUS, TACACS+, AAA, ACL, and QoS for Security
- Support WEB/CLI/SNMP/SSH for Flexible Operation
Specifications

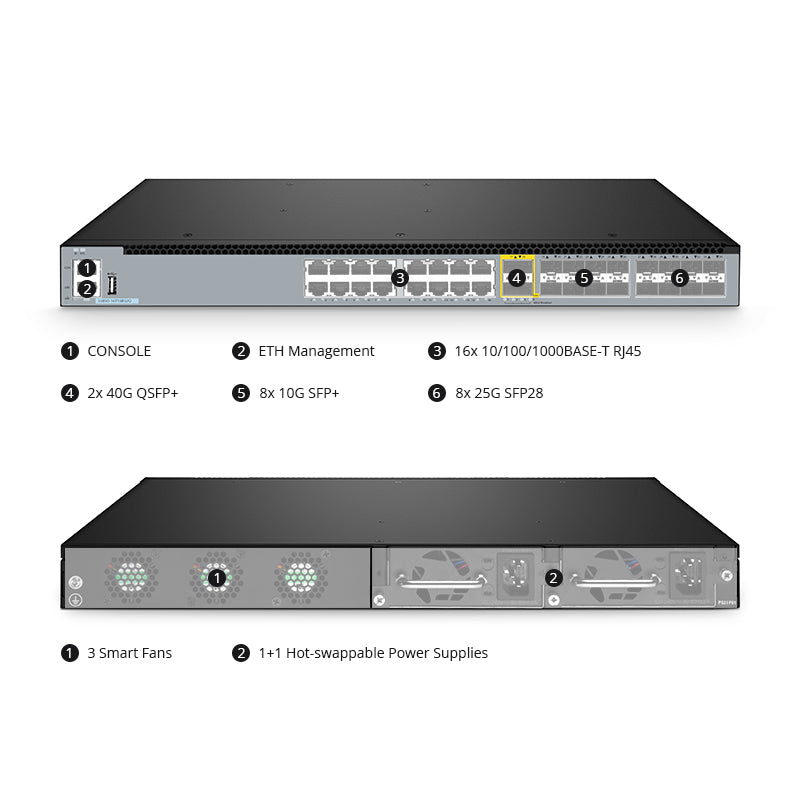

- Ports: 16x 10/100/1000BASE-T RJ45 | 8x 10G SFP+ | 8x 25G SFP28 | 2x 40G QSFP+
- Switching Capacity: 752 Gbps
- Power Supplies: 2 (1+1 Redundancy) Hot-swappable, AC
- Forwarding Rate: 540 Mpps
- Fans: 3 (2+1 Redundancy) Built-in, Front-to-Back
- Packet Buffer: 9MB
- Dimensions (HxWxD): 1.73"x17.5"x14.6" (43.6x440x370mm)
- Jumbo Frame: 9,600
- Weight: 13.44 lbs (6.1kg)
- MAC Address: 98,304
- Input Voltage: 100-240VAC, 50-60Hz
- IPv4/IPv6 Routes: 56K/4K
- Input Current: 2A
- Number of VLANs: 4,094
- Max. Power Consumption: 55W
- DRAM: 2GB
- Operating Temperature: 0 to 45ºC (32 to 113°F)
- Flash Memory: 8GB (eMMC)
- Ports: 16x 10/100/1000BASE-T; 8x 10G SFP+; 8x 25G SFP28; 2x 40G QSFP+
- Switching Capacity: 752 Gbps
- Forwarding Rate: 540 Mpps
- Power Supplies: 2 (1+1 Redundancy) Hot-swappable, AC
- Fans: 3 (2+1 Redundancy) Built-in, Front-to-Back
- Max. Power Consumption: 55W
- MLAG: YES
- EVPN-VXLAN: YES
- 802.1X: YES
