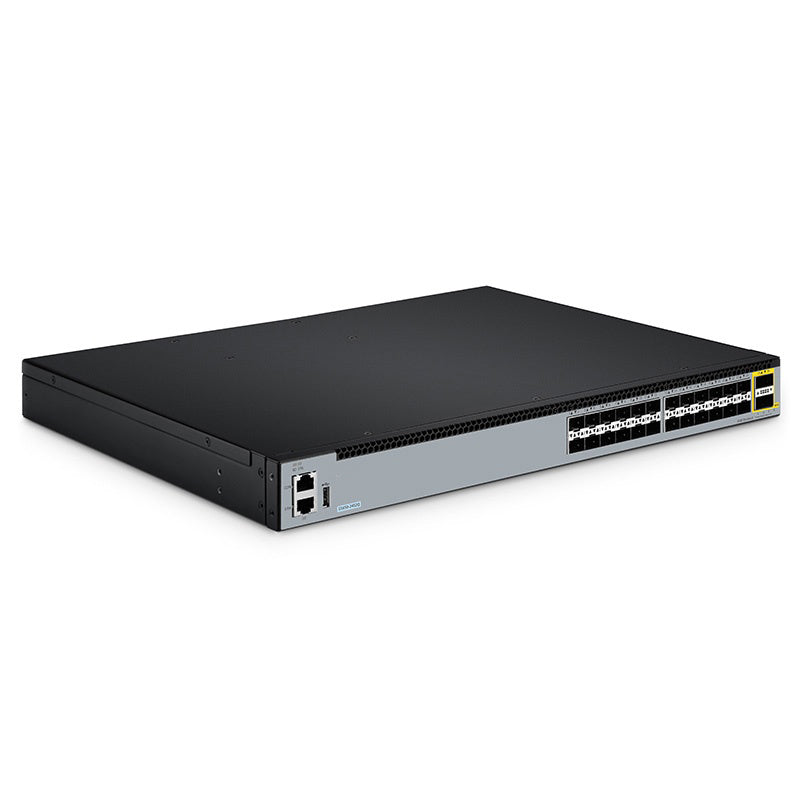

FS-S5850-24S2Q, 24-Port Ethernet L3 Switch, 24 x 10Gb SFP+, with 2 x 40Gb QSFP+, Support MLAG

The FS-S5850-24S2Q layer 3 switch features 24x 1Gb/10Gb and 2x 40Gb QSFP+ ports, providing the flexibility to support mixed 1Gb, 10Gb and 40Gb environments. This managed enterprise switch delivers 640 Gbps switching capacity with rich layer 2 and layer 3 features.

Delivering wire-speed performance on every port, full device redundancy, support L3 routing protocols such as RIP, OSPF, BGP, a comprehensive security and QoS feature set, a Front to back cooling and AC power supply input choice, and support simple device management and network management via a Command-Line Interface (CLI) as well as on on-box web UI.

FS-S5850-24S2Q is ideal for large-scale campus network aggregations, small and medium-sized network cores, and can be used for scenarios that require high-speed transmission and long-distance connectivity, such as data centers, remote offices and WAN extensions.

Product Highlights

• Support MLAG to Enhance Reliability and Uninterrupted Services

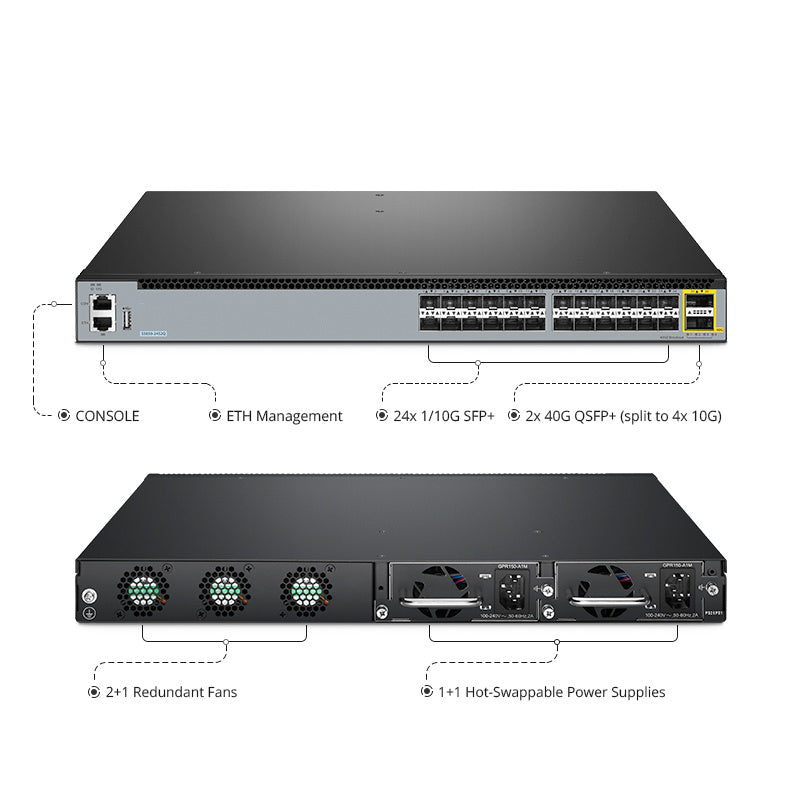

• 24x 1G/10G SFP+ with 2x 40G QSFP+ (split to 4x 10G）

• Support BGP, OSPF, VRRP, DHCP Relay, etc.

• Support SSH, ACL, 802.1X, RADIUS, TACACS+, etc. for Security

• Support WEB/CLI/SNMP/SSH for Flexible Operation

Connectivity Solutions

Features

Upgrade Your Network to High Bandwidth and Scalability
Both the aggregation layer and access layer are designed with dual links, which can eliminate bottlenecks and achieve high-speed networks and get reliable performance.

10G Core and Aggregation Switch with 40G Ports
10G ports for access switch or servers, 40G ports for core switches.

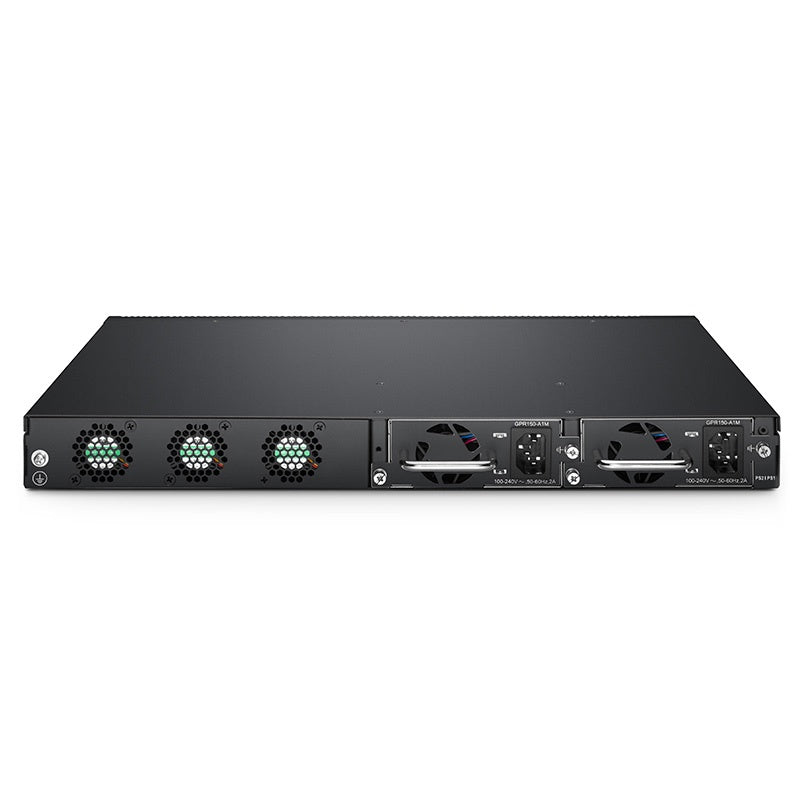

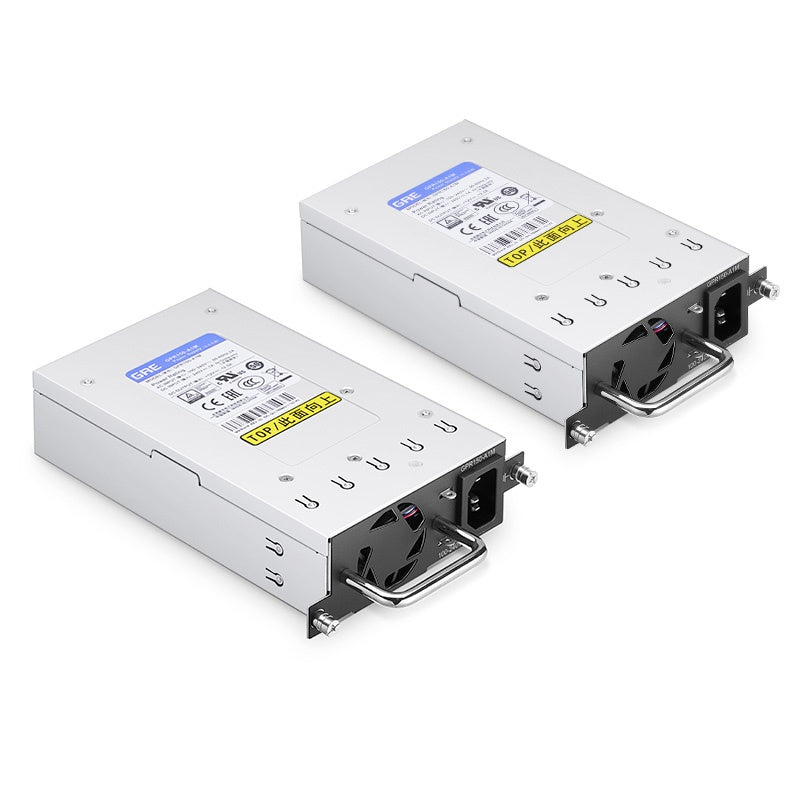

1+1 Hot-Swappable Power Supplies and 2+1 Redundant Fans

The dual power supplies can be replaced without shutting down the system, and the variable-speed fans with front-to-back airflow automatically adjust fan speed to reduce power draw.

MLAG Realizes Uninterrupted Services
MLAG delivers device-level link redundancy and load balancing by aggregating links across two switches, enhancing network performance, reliability, and service continuity.

BGP (Border Gateway Protocol) Optimizes Network Performance
BGP offers rich routing policies, enables efficient interconnection across autonomous systems, enhances redundancy with multiple links, and supports large-scale expansion.

OSPF (Open Shortest Path First) Improves Network Stability
OSPF uses advanced routing algorithms and area-based design to dynamically update routes as the network changes, improving network stability and performance.

Comprehensive Security Policy Protects from Network Threats
["With network-level security and stability capabilities like SSH, ACL, AAA, etc., it defends against network threats for enterprises, campus and financial industry."]

Flexible Management Options
Innovative design supports CLI and easy-to-use Web GUI eliminating rip and replace of equipment as network management needs grow. Start your trail.
