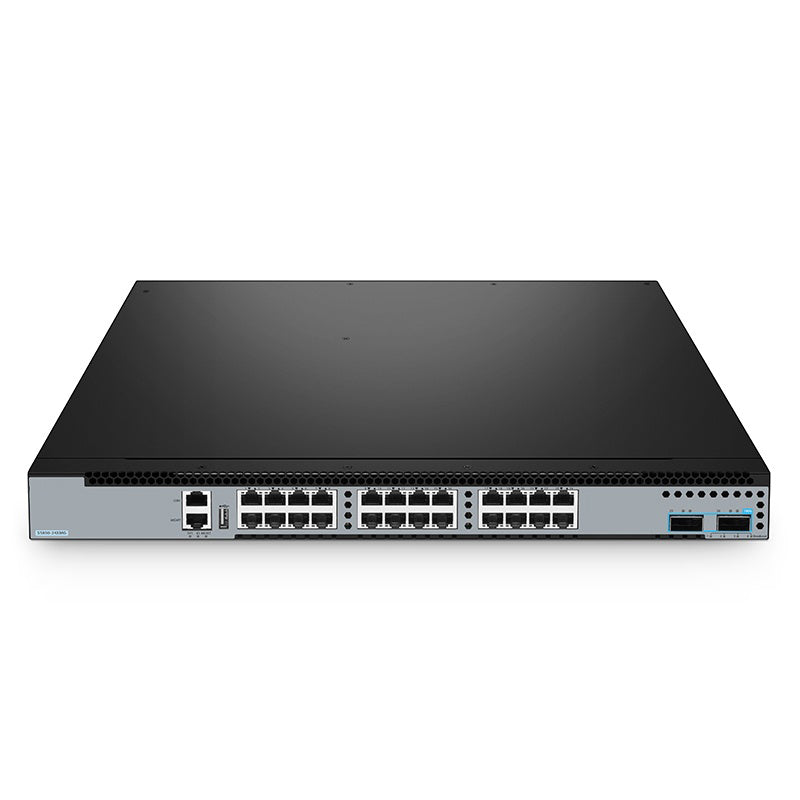

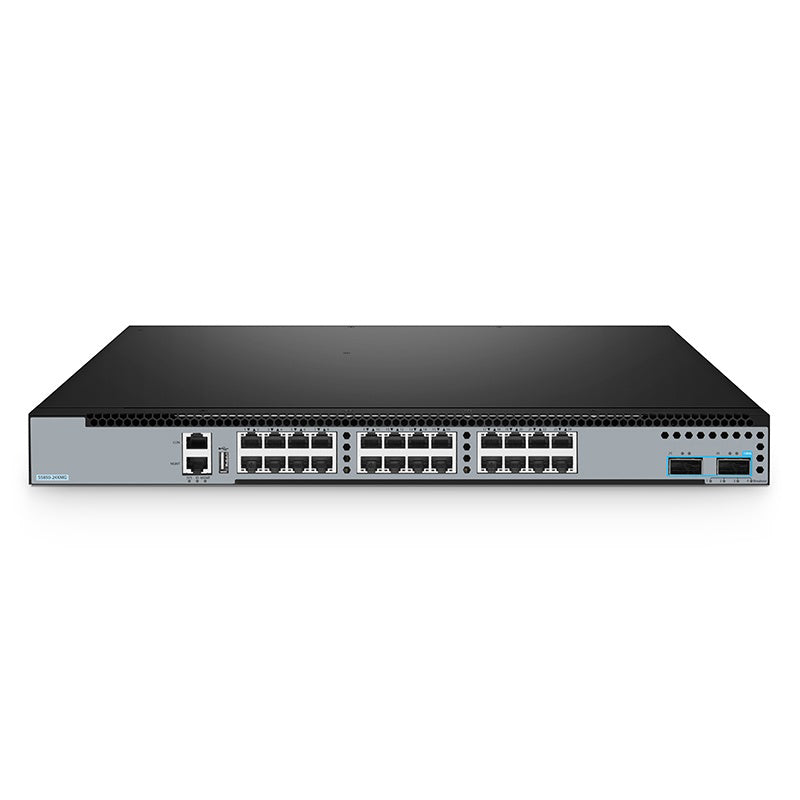

FS-S5850-24XMG, 24-Port Ethernet L3 Switch, 24 x 10GBASE-T/Multi-Gigabit, with 2 x 100Gb QSFP28, Support MPLS&MLAG

FS-S5850-24XMG features an advanced hardware design combined with 24x 10/100/1000M/2.5G/5G/10GBASE-T ports and 2x 100Gb ports. This 10GBASE-T switch offers backwards compatibility with installed Ethernet cabling and standard RJ-45 connectors.

The switch comes with the complete system software with comprehensive protocols and applications to facilitate the rapid service deployment and management for traditional Layer 2 and Layer 3 networks.

Offering high performance, high port density, low latency, enhanced security, and support for uninterruptible services MLAG, the S5850-24XMG is well-suited to the core and aggregation layers for next-generation enterprise, Wi-Fi 6/6E access, high-end wiring closets, and network edge deployments. Ideal for corporate office and campus network scenarios, it delivers reliable, efficient connectivity.

Product Highlights

• MLAG to Enhance Reliability and Uninterrupted Services

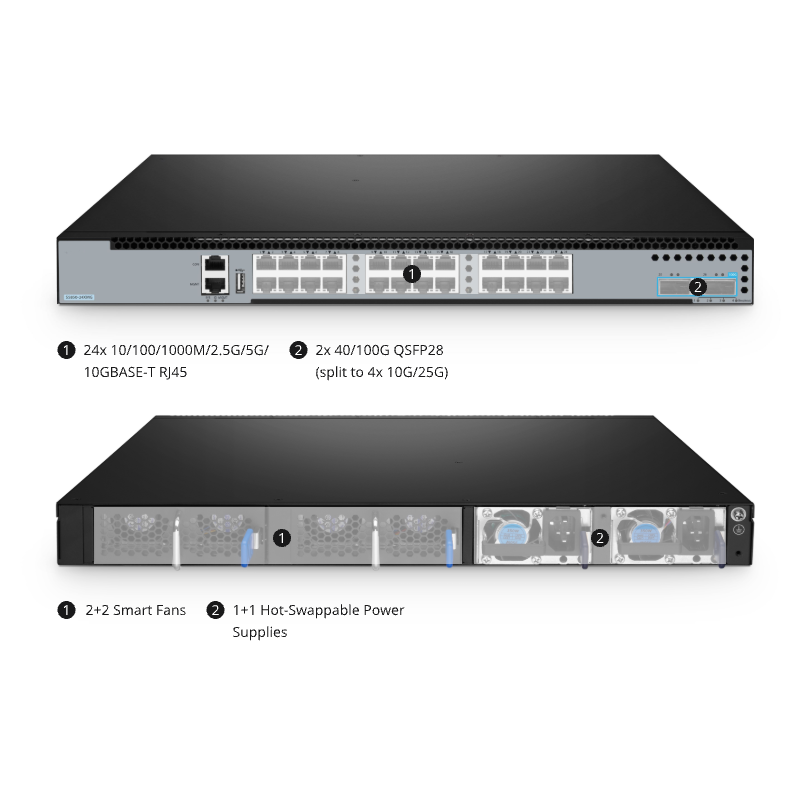

• 24x 10/100/1000M/2.5G/5G/10G RJ45, 2x 40/100G QSFP28 (Split to 4x 10G/25G)

• MPLS & VXLAN-BGP-EVPN, OSPF, VRRP, DHCP Relay, etc.

• SSH, ACL, AAA, 802.1X, RADIUS, TACACS+, etc. for Security

• CLI/WEB/SNMP/RMON/Syslog for Flexible Operation

Specifications

• Ports: 24x 10/100/1000M/2.5G/5G/10GBASE-T | 2x 100G QSFP28

• Switching Capacity: 880 Gbps

• MAC Address: 98K

• Forwarding Rate: 654 Mpps

• Latency: 0.66μs

• Packet Buffer: 9MB

• Number of VLANs: 4K

• Flash Memory: 8GB EMMC(OS) 4MB SPI Flash(Boot)

• ARP Table: 12288

• RAM: 2GB

• Jumbo Frame: 9,600

• Power Supply: 2 (1+1 Redundancy) Hot-swappable

• MTBF: >90,000 Hours

• Fan Number: 4 (2+2 Redundancy) Hot-swappable

• IPv6 routes: 4096

• Airflow: Front-to-Back

• IPv4 routes: 56K

• RAM: 2GB

• Max. Power Consumption: 110W

• Input Voltage: 100-240Vac, 50/60Hz, -36 -72Vdc

• Operating Temperature: 0 to 45ºC (32 to 113°F)

• Storage Temperature: -40 to 70ºC (-40 to 158°F)
• RJ45 Ports: 24x 10GBASE-T
• 25G/40G/100G Ports: 2x 100G QSFP28
• Management Layer: L3
• Stacking or MLAG: MLAG
• VLAN, QoS, IGMP Snooping, Link Aggregation: YES
• Static Routing, RIP, OSPF, IPv6 support: YES
• 1+1 Hot-swappable Power Supplies: YES

Please Note: Matching the American standard power cord as default. If you need other standard power cords, please note in the order.

Software Spotlights

Resiliency and High Availability

• Redundant, hot-swappable power supplies and fans
• Multi-Chassis Link Aggregation (MLAG)
• IEEE 802.3ad Link Aggregation (LACP)
• MPLS, LDP, MPLS-L2VPN, MPLS-L3VPN, VxLAN-BGP-EVPN, IPFIX
• Virtual Router Redundancy Protocol (VRRP)
• Support BFD for fast link failure detection
• Graceful protocol restart (OSPFv2/v3, BGP)
• Ethernet Ring Protection Switching (ERPS)

Security

• IEEE802.1X RADIUS authentication, SSH, ACLs, TACACS+
• IPv4 Source Guard
• ARP inspection, MAC whitelisting
• Prevent DDOS attack
• Control Plane Policing (CoPP)
• IPv4/IPv6 DHCP Snooping
• BPDU Guard, Root Guard, Loop Guard, Anti TC-BPDU attack

Management

• User login: console, SSH, telnet
• Industry-standard CLI, Web-based management
• 10/100/1000Mbps management port
• SNMP v1/v2/v3, RMON
• Traffic monitoring: sFlow
• DHCP server, and DHCP Relay
• RPC-API for Software Defined Network (SDN)

Connectivity Solutions

Upgrade Your Network To High Bandwidth And Scalability
Both the aggregation layer and access layer are designed with dual links, which can eliminate bottlenecks and achieve high-speed networks and get reliable performance.

10G Core and Aggregation Switch with 100G Ports
10G ports for access switch or servers, 100G ports for core switches.

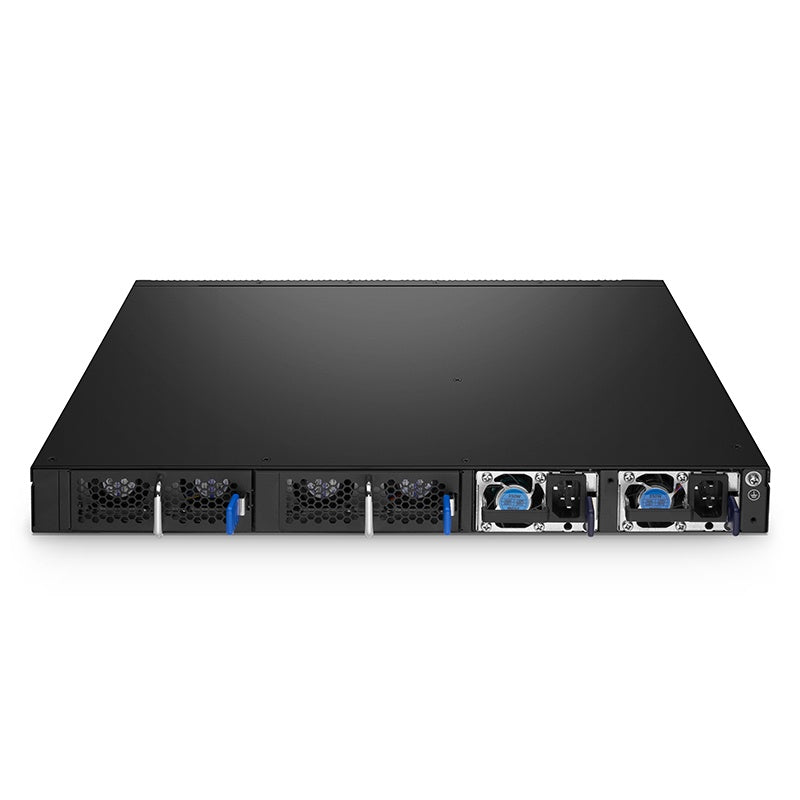

1+1 Hot-Swappable Power Supplies and 2+2 Smart Fans
The dual power supplies can be replaced without shutting down the system, and the variable-speed fans with front-to-back airflow automatically adjust fan speed to reduce power draw.

MLAG Realizes Uninterrupted Services
MLAG delivers device-level link redundancy and load balancing by aggregating links across two switches, enhancing network performance, reliability, and service continuity.

MPLS Helps Establish Point-to-point Connections
MPLS enables small and medium-sized operators to create tunnels for their users, which helps build point-to-point connections and achieves intercommunication between user networks. (Requires an advanced license LIC-FIX-MA)

VXLAN-BGP-EVPN Achieves Arbitrary Migration of Virtual Machines
VXLAN-BGP-EVPN automatically discovers and establishes tunnels, enabling unrestricted and seamless migration of data center virtual machines with no user perception. (Requires an advanced license LIC-FIX-MA)

Comprehensive Security Policy Protects from Network Threats
With network-level security and stability capabilities like SSH, ACL, AAA, etc., it defends against network threats for enterprises, campus and financial industry.

Flexible Management Options
Innovative design supports CLI and easy-to-use Web GUI eliminating rip and replace of equipment as network management needs grow.
