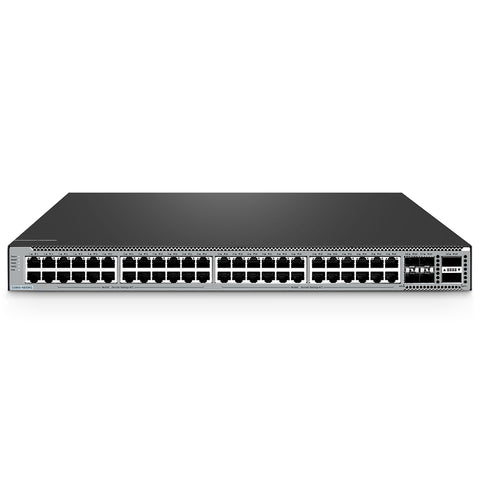

FS-S5860-48XMG, 48-Port Ethernet L3 Switch, 48 x 10GBASE-T/Multi-Gigabit Ports, 4 x 25Gb SFP28, with 2 x 40Gb QSFP+ Uplinks, Support Stacking, Broadcom Chip

FS-S5860-48XMG is FS-developed next-generation multi-GE switch, which features 48x 100M/1000M/2.5G/5G/10GBase-T, 4x 25Gb SFP28 and 2x 40Gb QSFP+ Uplinks. This managed enterprise switch adopts cutting-edge Broadcom chips to deliver 760 Gbps switching capacity and 565 Mpps forwarding rate.

It is packed with redundant hot-swappable power supplies, 3 hot-swappable smart fans and hardware-level dual-flash chip for superior processing performance and network reliability. Our agile FS-S5860-48XMG managed switch is ideal for large-scale campus network aggregations, small and medium-sized network cores to meet the needs of high-density access and high-performance aggregation.

Specifications

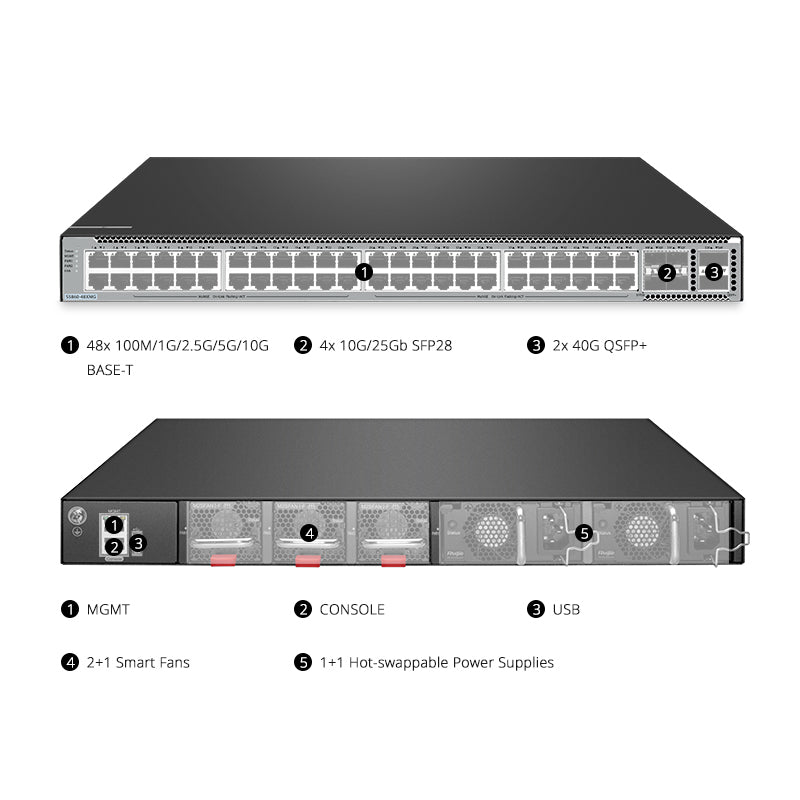

• Ports: 48x 100M/1000M/2.5G/5G/10GBase-T, 4x 25G SFP28 | 2x 40Gb QSFP+

• Switch Chip: BCM56170

• Switching Capacity: 1.32 Tbps

• MAC Address: 32K

• Forwarding Rate: 565 Mpps

• Latency: 1.28μs

• Packet Buffer: 4MB

• Number of VLANs: 4K

• Flash Memory: 1GB

• ARP Table: 16,000

• SDRAM: 2GB

• Jumbo Frame: 9,216

• Power Supply: 2 (1+1 Redundancy) Hot-swappable

• MTBF: >236,695 Hours

• Fan Number: 3 (2+1 Redundancy) Hot-swappable

• IPv4 Routes: 16K

• Airflow: Front-to-Back and Left-to-Back

• IPv6 Routes: 4094

• Dimensions (HxWxD): 1.72''x17.4''x16.5'' (43.6x442x420mm)

• Battery Type: Li-lon (Lithium-lon)
• RJ45 Ports: 48x 100M/1000M/2.5G/5G/10G
• 25G Ports: 4x 25Gb SFP28
• 40G/100G Ports: 2x 40Gb QSFP+
• Management Layer: L3
• Stacking: YES
• 1+1 Hot-swappable Power Supplies: YES
• VLAN, QoS, IGMP Snooping, LACP: YES
• Static Routing, RIP, OSPF, IPv6 support: YES

Product Highlights

• Broadcom BCM56170 Chip, Support 2 Units Stacking

• 1+1 Hot-swappable Power Supplies and 2+1 Smart Fans

• Support QoS, OSPF, DHCP, BGP, VRRP, QinQ, etc.

• Support Airware Cloud/WEB/CLI/SNMP/SSH for Flexible Operation

• Network Monitoring through Sampled Flow (sFlow)

• Support SSH, ACL, AAA, 802.1X, RADIUS, TACACS+, etc. for Security

• IPv4/IPv6 Dual-Stack for Future Network Expansion

Please Note: Matching the American standard power cord as default. If you need other standard power cords, please note in the order.

Software Spotlights

Resiliency and High Availability

• Redundant, hot-swappable power supplies and fans
• Up to 2 units stacking
• IEEE 802.3ad Link Aggregation (LACP)
• Virtual Router Redundancy Protocol (VRRP)
• Support BFD for fast link failure detection
• Graceful protocol restart (OSPFv2/v3)
• Rapid Ethernet uplink protection protocol (REUP)
• Ethernet Ring Protection Switching (ERPS)
• Rapid link detection protocol (RLDP)

Security

• IEEE802.1X RADIUS authentication, SSH, ACLs, TACACS+
• IPv4/IPv6 Source Guard
• Dynamic ARP Inspection (DAI), Static ARP, ARP spoofing prevention, ARP-Check
• IPv4/IPv6 DHCP Snooping
• Port security, BPDU guard, Prevent DOS attack
• Hardware CPU protection mechanism
• Network foundation protection policy (NFPP)

Management

• Airware Cloud
• Industry-standard CLI, Web-based management
• SNMP v1/v2/v3, RMON, FTP/TFTP v6
• User login: console, SSH, telnet
• Syslog management
• Network Time Protocol (NTP)
• Link Layer Discovery Protocol (LLDP)
• Traffic monitoring: sFlow
• DHCP server, DHCP client, and DHCP Relay
• Domain Name System (DNS)

Connectivity Solutions

Upgrade Your Network To High Bandwidth And Scalability
Both the aggregation layer and access layer are designed with dual links, which can eliminate bottlenecks, achieve high-speed networks, and get reliable performance.

Multi-Gigabit Ports Ensure Agile Network Expansion
48x 100M/1G/2.5G/5G/10G auto-sensing ports for meeting large wireless bandwidth requirements, 2x 40G uplink ports for future expansion.

Select Stacking Ports According to Your Network
All 10G/25G/40G ports can be stacked via transceivers or DAC/AOC cables to increase port density, simplify management, and achieve hot standby redundancy.

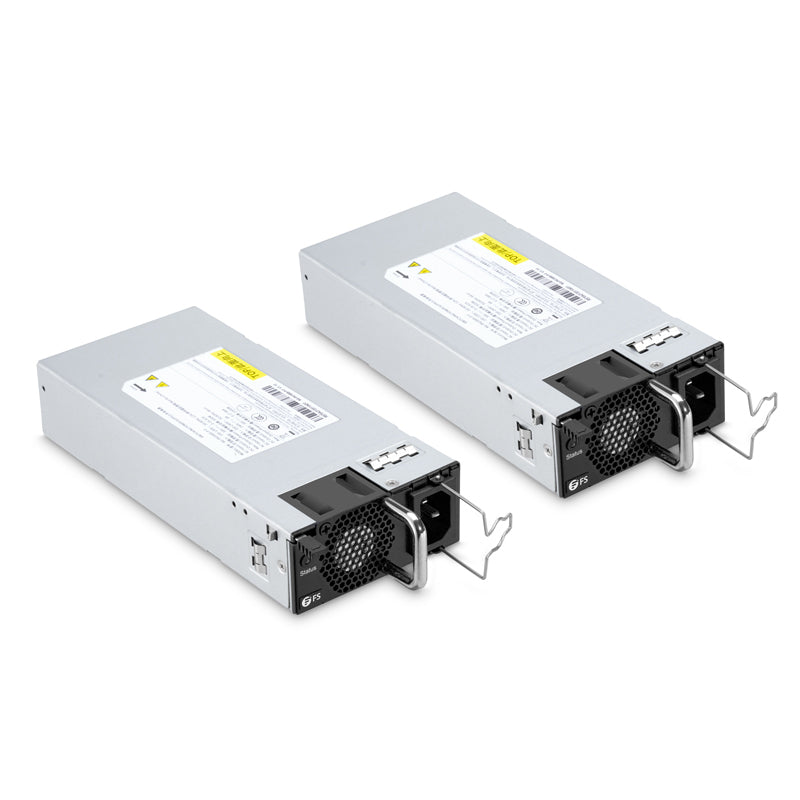

Dual Redundant Power Supplies and Smart Fans
PSUs can be removed/replaced without shutting down the system, variable-speed fans with front-to-back and left-to-back airflow for superior cooling, noise and power reduction.

QoS (Quality of Service) for Better Traffic Control
Providing different priorities to different applications, users, or data flows to reduce packet loss, latency, and jitter on a network.

Flexible Management Options
Innovative design supports CLI and easy-to-use Web GUI eliminating rip and replace of equipment as network management needs grow.

Cloud-based Network
Configuration and debugging online optimized remotely with Airware and Airbox network.
