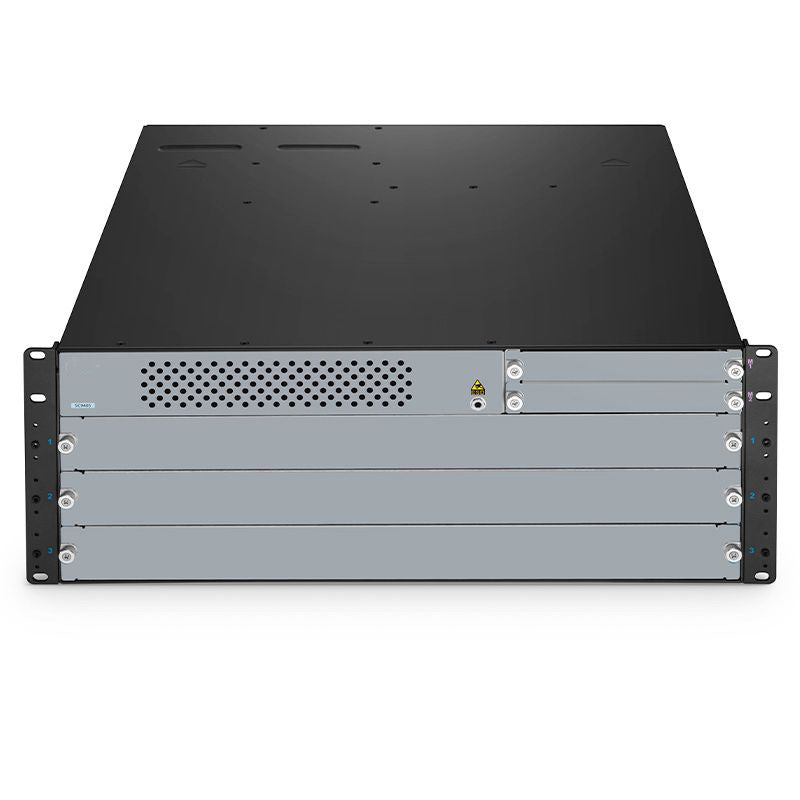

FS-SC9405, 5-Slot 4U Ethernet L3 Enterprise Chassis Switch Unloaded, Support Stacking, Broadcom Chip

The FS-SC9405 supports up to 144×1G/10G, 96×25G, or 24×40G/100G high-density full line-rate ports through flexible combinations of FS-SC9400-48F-E, FS-SC9400-48S-E, and FS-SC9400-8C-E line cards. Powered by Broadcom chips, it delivers 4.8Tbps switching capacity and 3571 Mpps forwarding rate.

With redundant hot-swappable power supplies, a hot-swappable smart fan, and a dual-flash chip, it ensures high performance, reliability, and carrier-class efficiency while reducing cost and complexity.

FS-SC9405 switch supports virtual stacking and virtual switching technology to achieve simplified management and flexible resource allocation, ideal for deployment in virtualized environment and cloud platform.

The switch also integrates rich IPv4/Ipv6 features such as OSPF, BGP, VRRP, supports QoS for better experience, and VXLAN for network scalability. Compact design with diverse line card options, high performance, and scalability—ideal for deployment in data centers, metro networks, campus networks, or converged data center-campus environments.

Specifications

• Number of Line Card Slots: 3

• Switching Capacity: 4.8 Tbps

• Number of Engine Slots: 2

• Forwarding Rate: 3,571 Mpps

• Max. 40/100G Ports: 24

• Flash Memory: 1GB

• Max. 25G Ports: 96

• Latency: 1.46μs

• Max. 1/10G Ports: 144

• Jumbo Frame: 9K

• Hot-swappable Power Supplies: 2 (1+1 Redundancy) Hot-swappable, AC

• MTBF: ＞200,000 Hours

• Hot-swappable Fans: 1 Hot-swappable Fans, Front-to-Back

• MAC Address: 4K

• Max. Power Consumption: <80W

• Number of VLANs: 4K

• Operating Temperature: 0 to 50°C (32 to 122°F)

• Dimensions (HxWxD): 6.9''x17.4''x17.8'' (175x442x451mm)
• Weight: 7.05 lbs (3.2kg)
• Ports: 48x 1G SFP
• Compatible Chassis: SC9405
• Compatible Engine: SC94-EM-A
• Hot Swappable: YES
• NETCONF: YES
• IS-IS: YES
• OSPFv2/v3: YES
• EVPN: YES
• sFlow: YES
• MPLS: YES

Product Highlights

• 5-Slot 4U Chassis with Flexible 1G/10G/ 25G/40G/100G Interface Speeds

• CLOS Architecture Enables Non-blocking Switching Up to 4.8Tbps

• Support Stacking, VXLAN Improves Efficiency and Scalability

• GRPC-based Telemetry to Collect CPU and Memory Information

• Airware Cloud for Simplified and Unified Management

• 1+1 Hot-swappable Power Supplies, 1 Smart Fan for Hardware-level Protection

• Support 802.1X, RADIUS, TACACS+, AAA, ACL for Security

• QoS Enables Better Classification and Control of Various Flows

Software Spotlights

IPv4/IPv6 Dual-Stack Multi-Layer Switching

• Support line-rate IPv4/IPv6 dual-stack multi-layer switching
• Support static routing, RIPv1/v2, OSPFv2, IS-IS, BGP4, RIPng, OSPFv3, IS-ISv6 and BGP4+

Virtual Stacking for Simplified Management

• Up to 2 units stacking
• Simplified network topology
• Fault recovery within milliseconds
• Hot swap without affecting normal operation of other devices

Sound Security Protection Policies

• Support hardware-based IPv6 ACLs
• Support hardware CPU protection mechanism
• Support the IP-based Telnet access control
• Support the Secure Shell (SSH) and SNMPv3
• Support Network Foundation Protection Policy (NFPP)

High Reliability

• Support the Spanning Tree Protocols (IEEE802.1d STP, IEEE802.1w RSTP, standard 802.1s MSTP)
• Support Virtual Router Redundancy Protocol (VRRP)
• Support Rapid Link Detection Protocol (RLDP)
• Support Rapid Ethernet Uplink Protection Protocol (REUP)
• Support GR perfect restart, BFD fast forwarding detection and other mechanisms
• Support modular power redundancy

Strong Multi-Service Support Capability

• Support the IPv4 and IPv6 multicast functions
• Support IGMP snooping, IGMP, MLD, PIM, MSDP
• Support IGMP source port and source IP check function

Easy Network Maintenance

• Support SNMP (SNMPv1,v2c,v3), RMON, OAM and Syslog
• Support Telnet, SSHv1/v2
• Support In-band Network Telemetry (INT)

Connectivity Solutions

Airware Cloud Enables Unified Management of Branch Networks
Airware unifies the management of network devices, enabling efficient 24/7 configuration and management from a central location for corporate/university branches, retail chains, and more.

Flexible and Scalable Interface Cards Enhances Performance at Scale

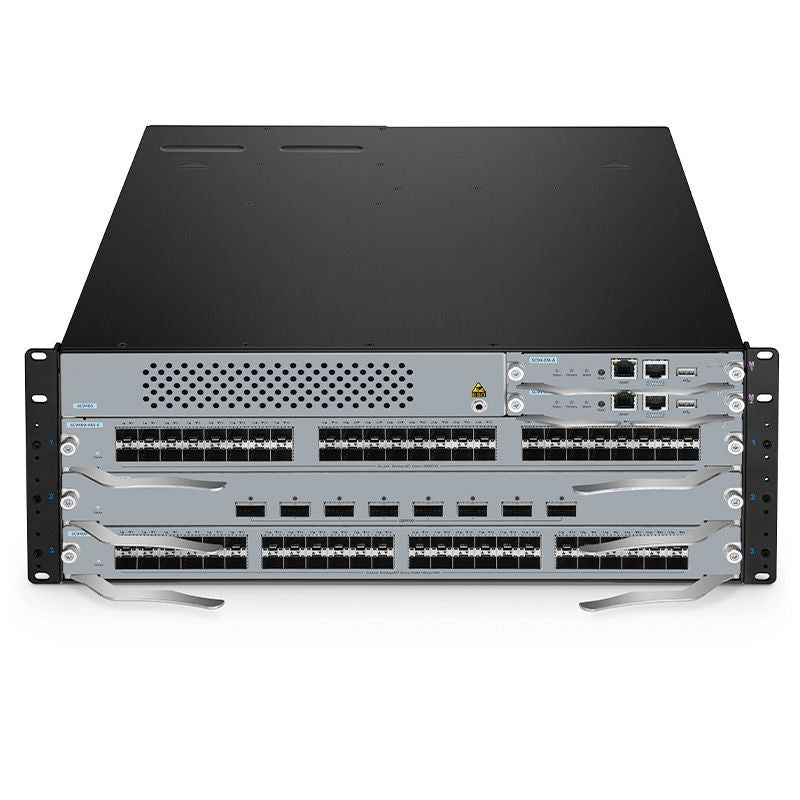

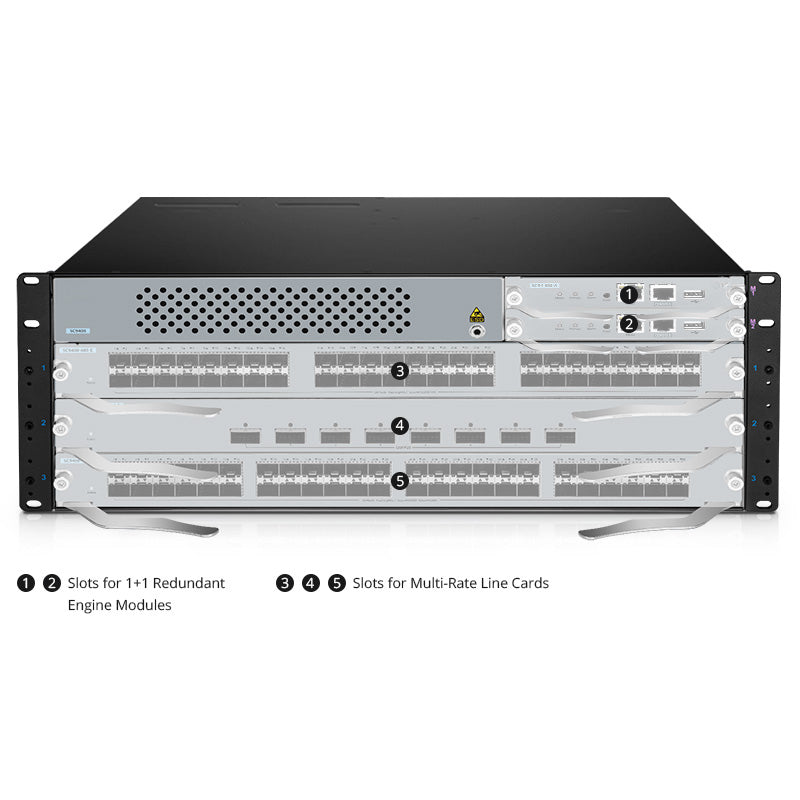

A 4U chassis with 5 slots, loaded with supporting three types of line cards, can offer a maximum of 144x 1G/10G, 96x 25G, or 24x 40G/100G full line rate ports.

Redundancy Design for Key Components Enhances System Stability
The control engine and power all support 1+1 redundancy and are hot-swappable to maximize reliability and availability.

1+1 Supervisor Engine Redundancy
Features a 1+1 hot standby design to ensure uninterrupted switch operation and continuous service availability.

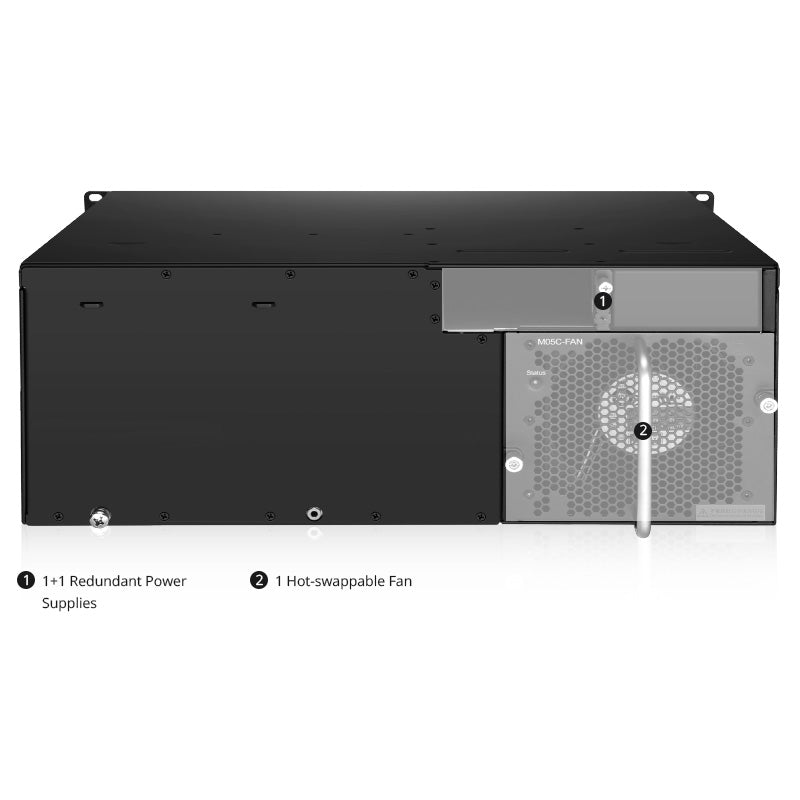

1+1 Power Redundancy
Supports dual hot-swappable power supplies. In case of a failure, instant switching ensures zero network downtime during replacement, providing multi-layer protection for critical links.

Dual BOOT Redundancy Backup
Utilizes two FLASH chips to store boot software (system bootloader), achieving hardware-level boot redundancy. This prevents switch boot failures caused by FLASH chip malfunctions.

Virtual Stacking Manage up to 2 Switches with a Single IP Address
Virtual stacking of up to 2 units, and the interconnected switches can be managed as a single device, reducing the overall number of units to monitor and manage.

Excellent Energy Efficiency Consumes Less Power
Adopting a highly energy-saving circuit design and component selection. The device achieves a marked reduction in energy consumption.

Easy and Flexible Operation and Management Options
Airware Cloud/WEB/CLI/SNMP/SSH management and maintenance methods make device management more convenient.
