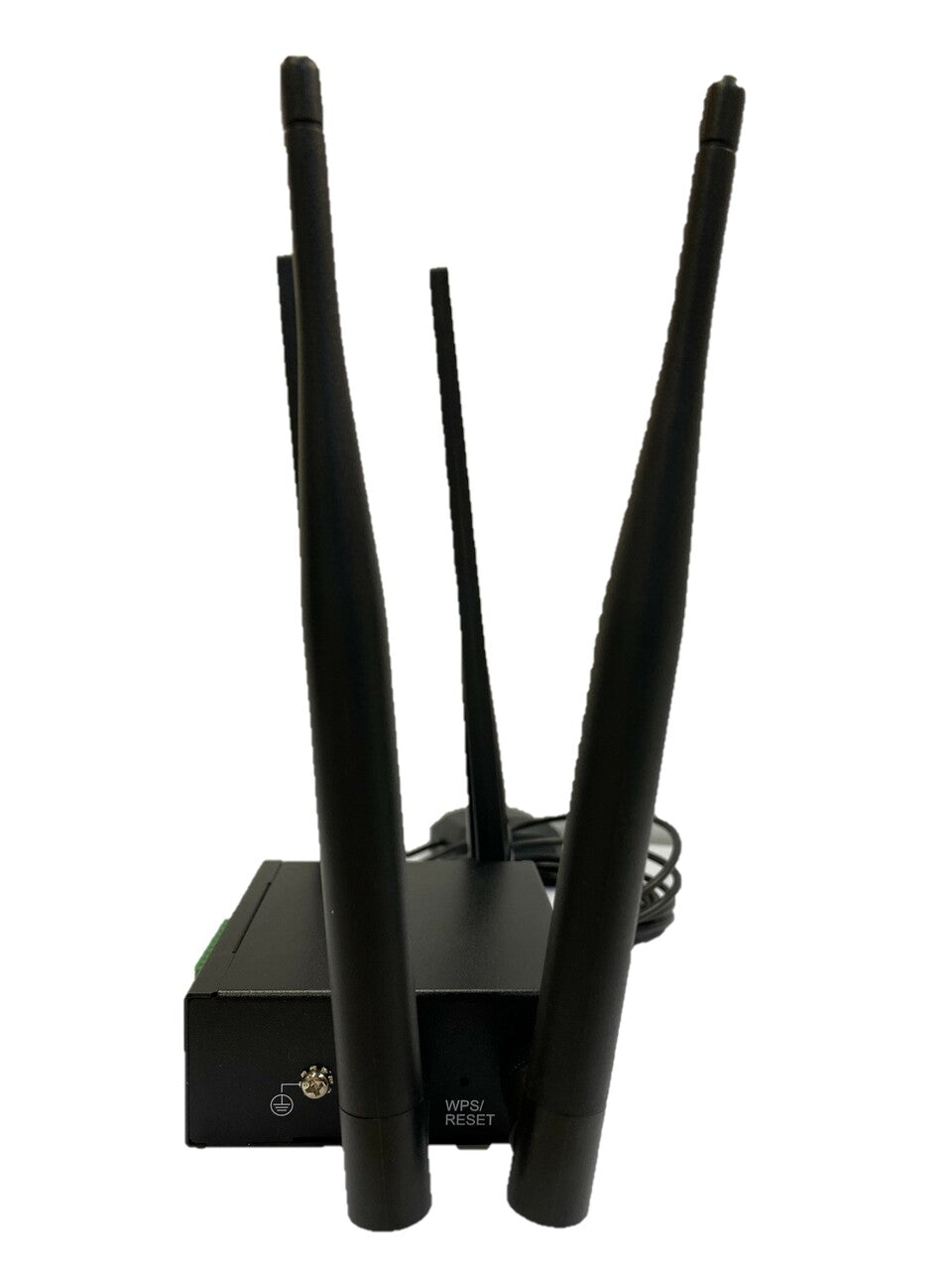

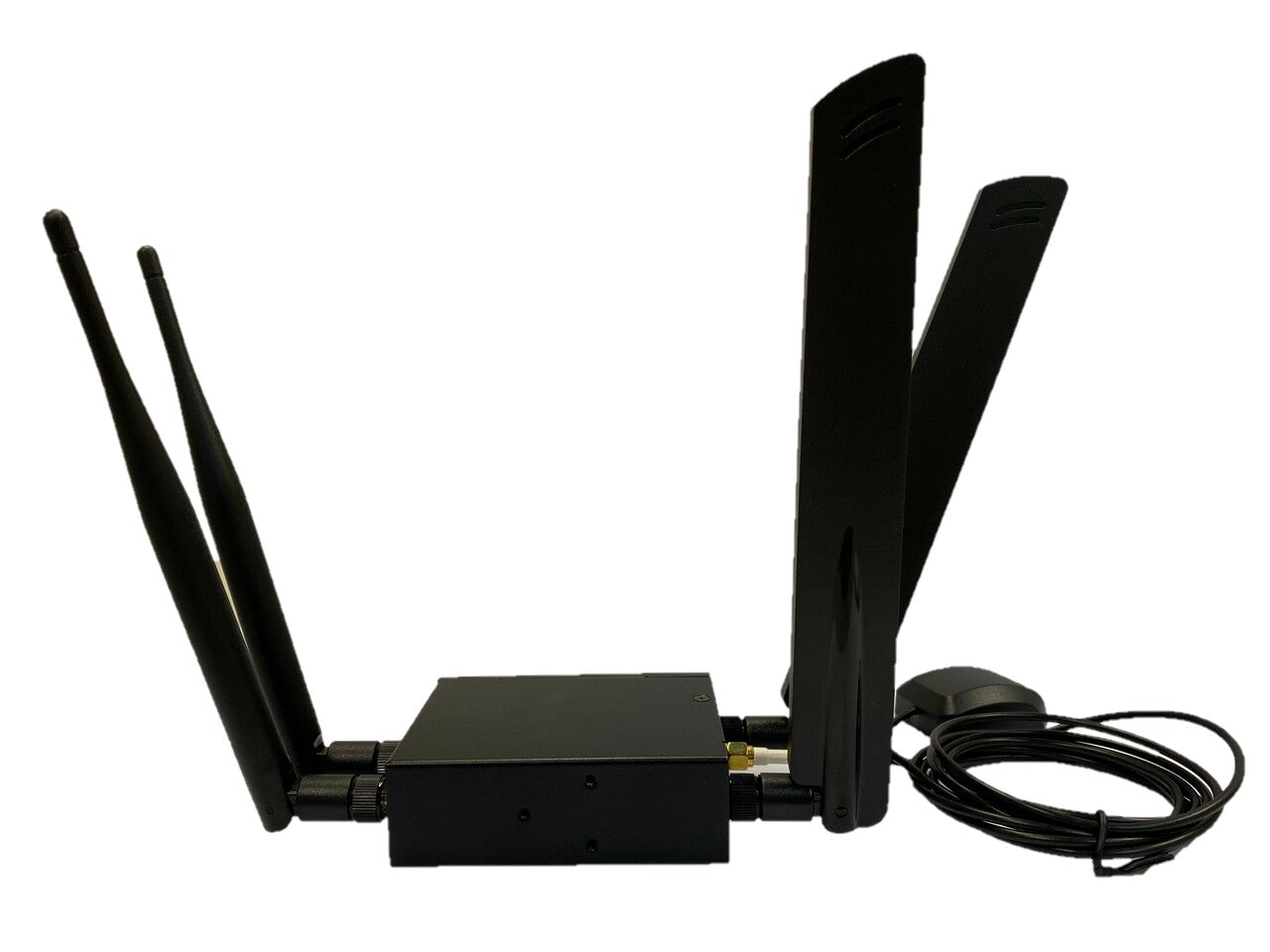

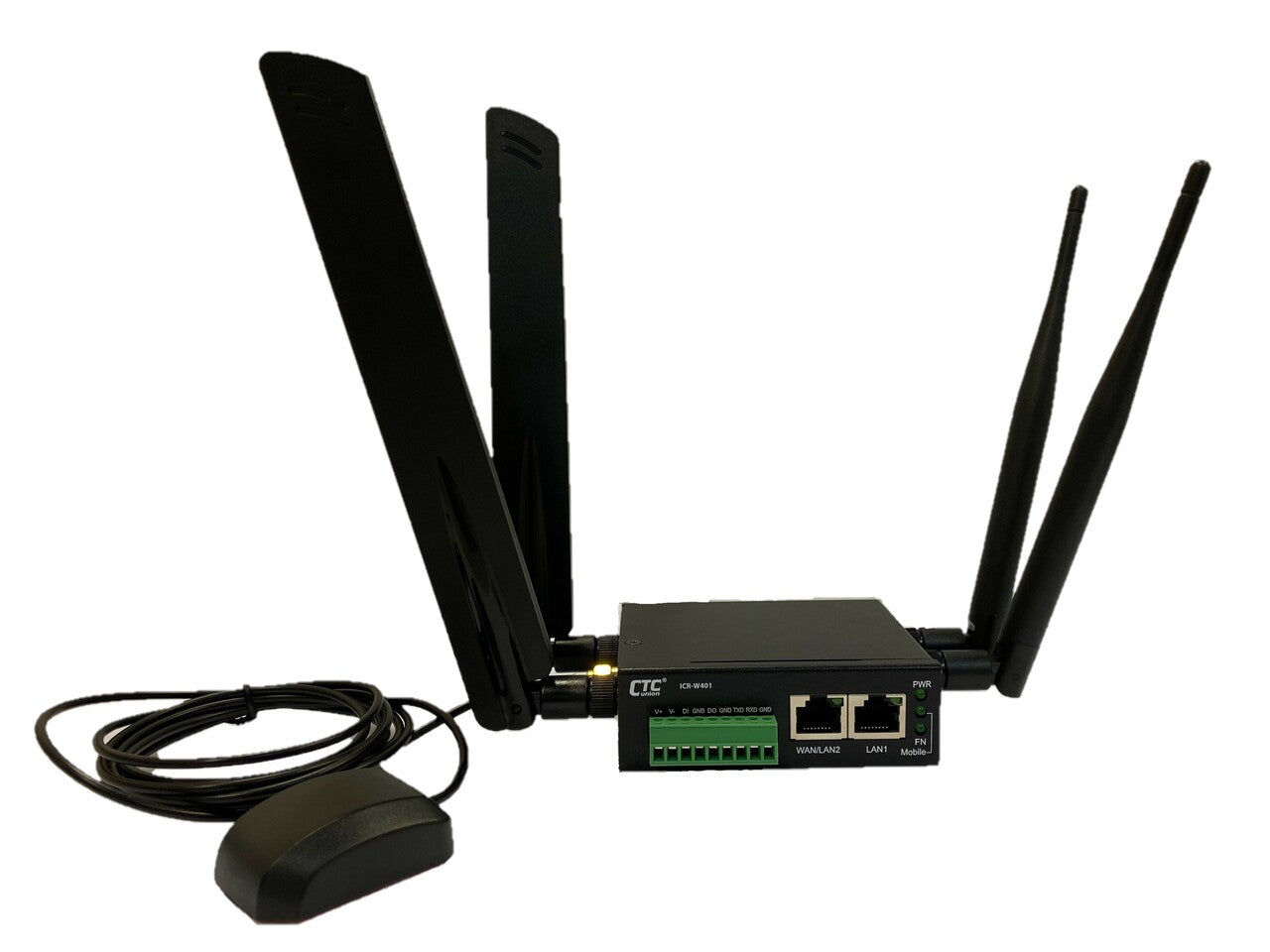

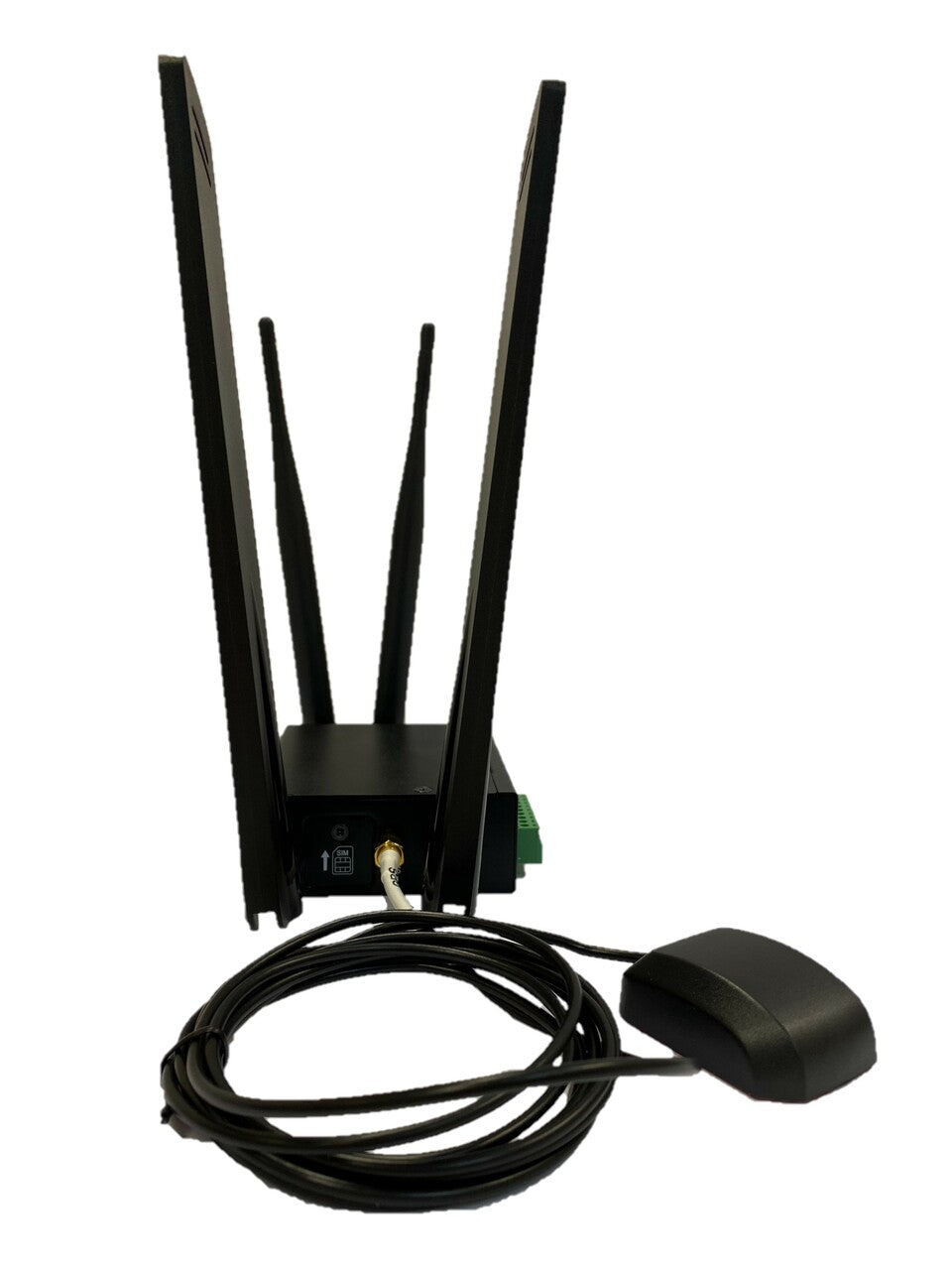

ICR-W401-A - Ethernet Industrial LTE/4G router with GPS, hardened -40 to +75 Celsius
The ICR-W401 is a compact, lightweight, and cost-effective Industrial grade 4G LTE gateway that has 1 LAN plus 1 WAN Fast Ethernet connection and supports uplink to 2G/3G/4G mobile data networks.
Built for harsh environments, the gateway is equipped with a single RS232 serial port and a DI/DO interface.
The ICR-W401 is simple to configure through its embedded Web user interface and can be deployed where the collection of real-time data transmissions is required for Industrial IoT and M2M (machine-to-machine) applications.
The ICR-W401’s WiFi is compliant with IEEE 802.11b/g/n wireless connectivity. The gateway features VPN Tunneling with Firewall and management capability via TR069 and SNMP.
The ICR-W401 provides highly secure authentication, encryption, and management to protect your data between public and private networks and simplify your complicated solutions for smart city and industrial networking.
Features:
- Supports multi-band connectivity with FDD 4G LTE/ TDD 4G LTE/ 3G WCDMA/2G GSM/ LTE Cat4
- one micro SIM card slot, 4G LTE antenna, 1x WAN (10/100Base-TX) + 1x LAN (10/100Base-TX UTP), 1x DI + 1x DO, 1x Serial port (RS232)
- GPS to get your location on earth
- Highly reliable and secure for mission-critical cellular communications
- Integrated dual detachable antenna against radio interference
- 4G LTE and WAN port for seamless connection and redundancy
- Supports Serial port (RS232) for IoT and automation applications
- Supports Routing/Firewall, NAT, Virtual Server, DMZ, Port filtering, MAC Filter, URL Filter, IP Filter, VLAN, Static Routing and RIP 1 & 2, VRRP, OSPF V2 & V3
- Supports OpenVPN, IPSec (3DES, AES128, AES196, AES256, MD5, SHA-1, SHA256), GRE, PPTP, L2TP
- Supports IPv4, IPv6, IPv4/IPv6 dual-stack, DHCP server and client, PPPoE, Static IP, SNTP, GPS sync time, DNS Proxy, VRRP, OSPF, Message Queue Telemetry Transport (MQTT Broker), BGP
- Supports Alarm message: DO, SNMP Trap, E-mail
- Supports SNMP, TR069, Web, Telnet, CLI for management
- CE, FCC certified
- Heavy industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
- Rugged metal, IP30 protection & Fanless design
- Wide operating temperature -40 ~ 75°C
Additional Information on ICR-W401 series: Product Datasheet
