LFC-1000-SS SFP to SFP slot multirate fiber media converter, 155M to 1.25G speeds
LFC-1000-SS SFP to SFP slot multirate fiber media converter, 155M to 1.25G speeds
Note: AC 90-240V power adapter is included in carton package.
Product description

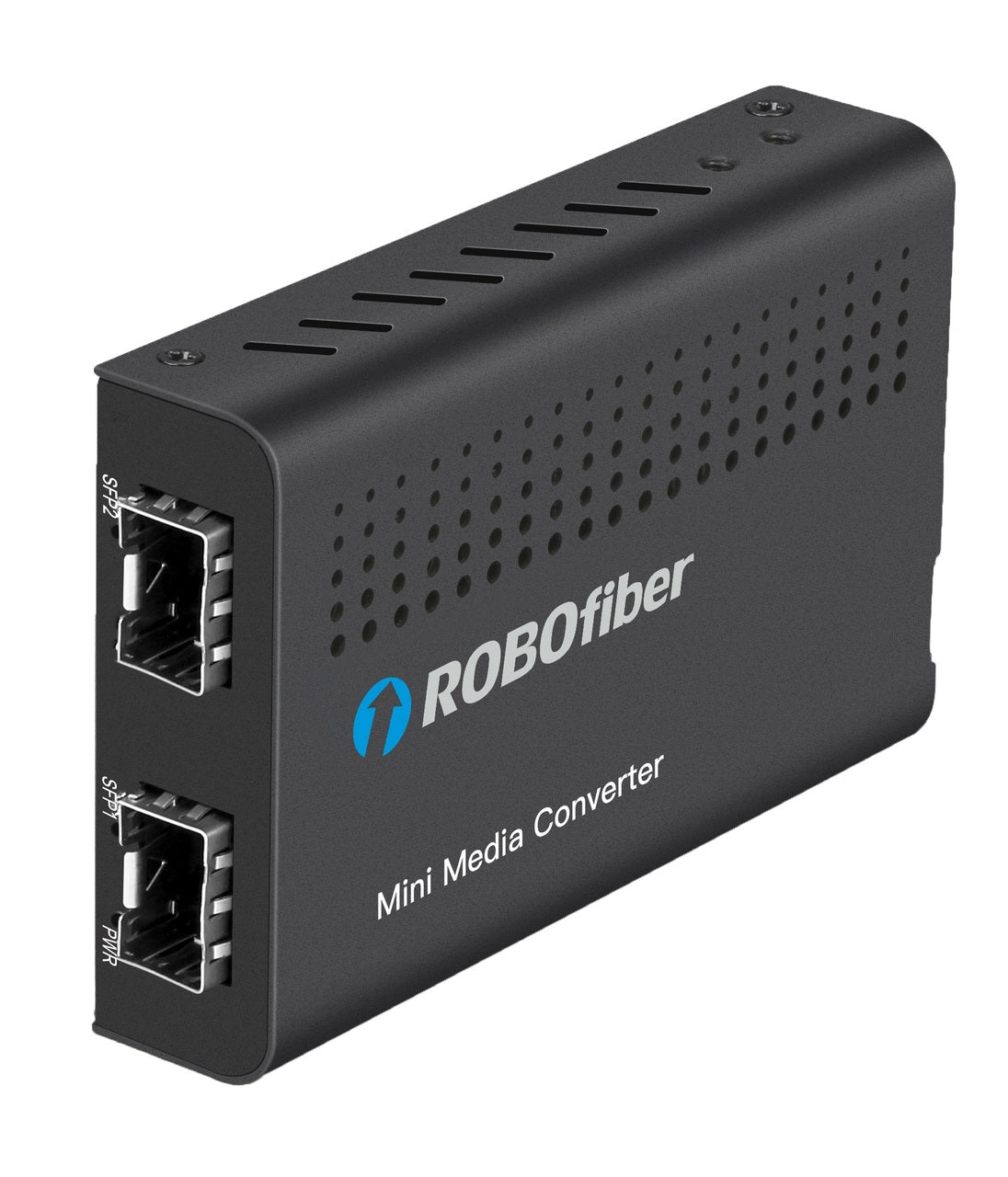

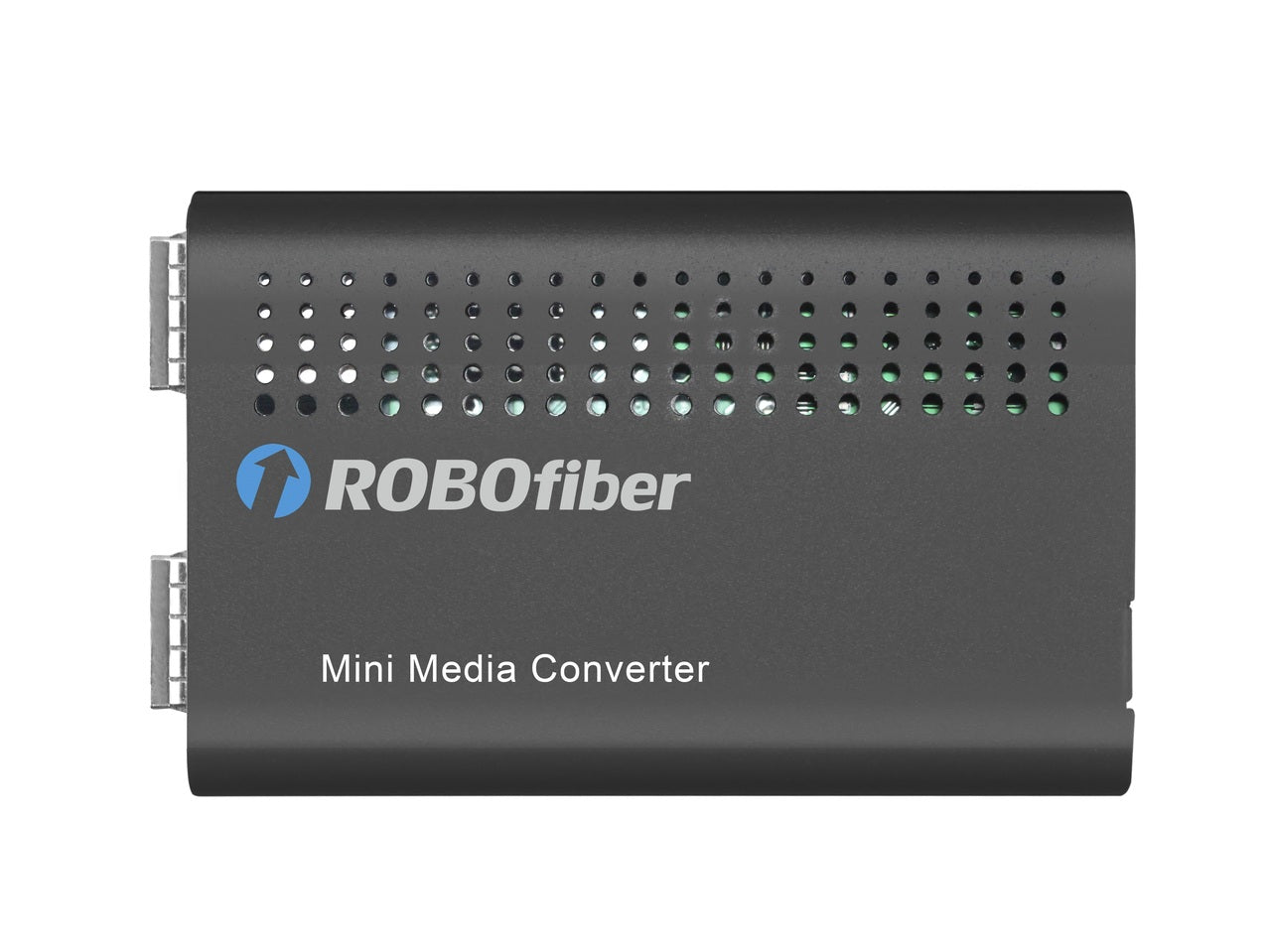

LFC series are newest series of media converters. The LFC-1000-SS is a fiber to fiber (SFP to SFP slot)multi-rate 155M to 1.25G speed non-managed stand-alone media converter, equipped with DIP switches for configuration options. The SFP slot allows both Gigabit and Fast Ethernet operation and can take any type of SFP: multi-mode, single-mode, CWDM or DWDM as well as BiDi which allows bi-directional transmissions using only a single fiber strand cable. LED indicators signal the power status, SFP ports traffic and link status for each port. Used with their compatible LFC-CH12 fiber optic chassis they can be aggregated up to 12 units in a 19" wide and only 1RU of height space only. This is the highest density attainable for unmanaged fiber media converters.
The LFC-1000-SS fiber to fiber media converter has utmost flexibility for fiber change by using two SFP slots that can be populated with any rate and type of optics. It also includes a wall mounting solution for individual converters named LFC-WMK.
Features
- SFP to SFP slot Converter
- any rate 155M to 1.25G supported, no rate conversion
- completely transparent to protocol (Ethernet, Fiber Channel, SONET)
- forwards any size packets in transparent converter mode
- speed (data rate) must be identical on both ports
- Supports Q in Q double tagged frame transparent
- Supports IEEE 802.1Q Tag VLAN pass thru
- Aggregates into LFC-CH12 series chassis available with various power supplies
Technical specifications
| Optical interface: | 2x SFP slot any rate 155M to 1.25G speed, full duplex |
| Fiber: | Any type of fiber OM1, OM2, OM3, OM4 and OS1(MM 50/125μm, 62.5/125μm or SM 9/125μm) as dictated by the SFPs used |
| Optical connector: | LC connector for SFP modules (SFP transceivers NOT included) |

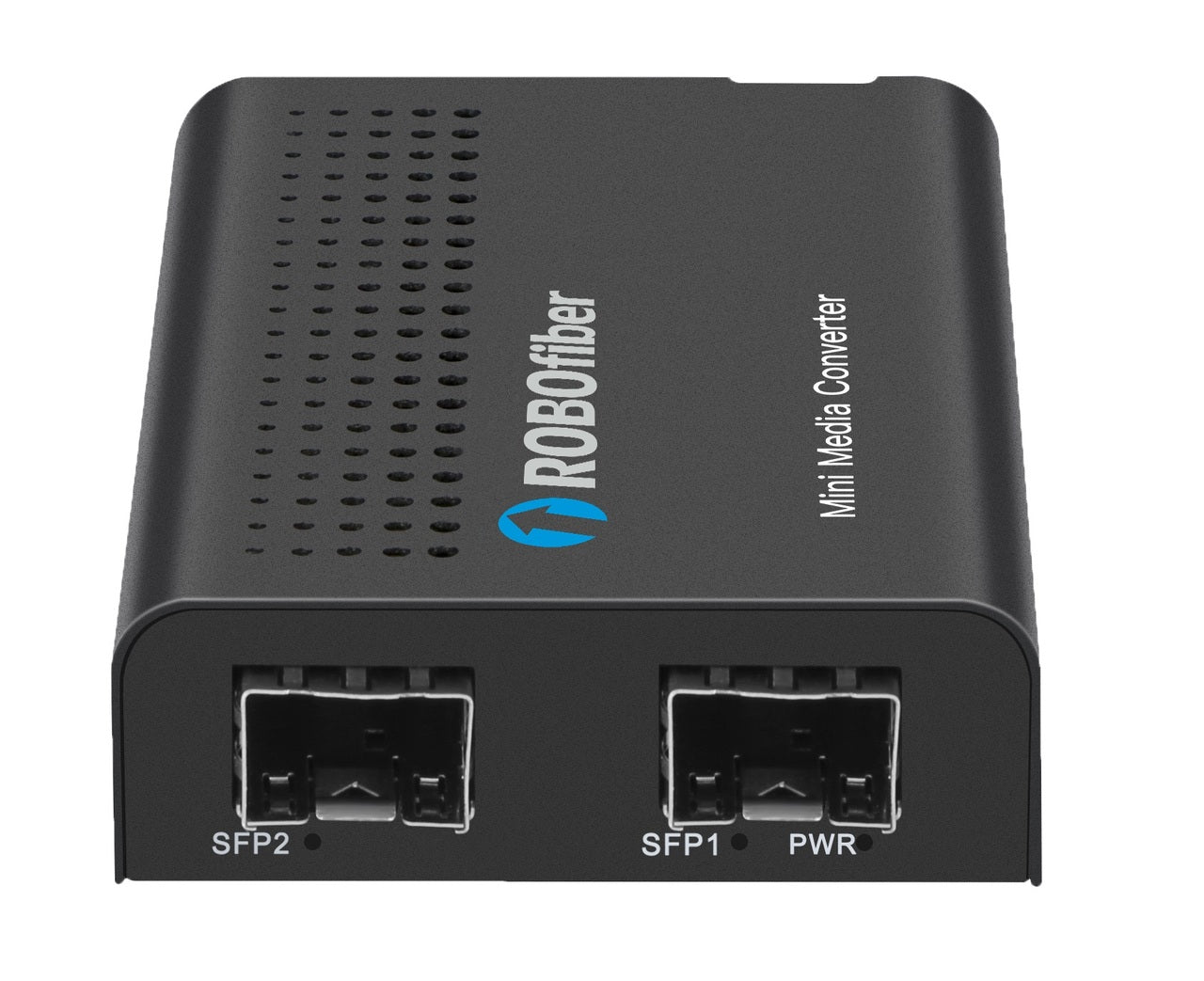

| Front LEDs: | PWR, SFP1, SFP2 |

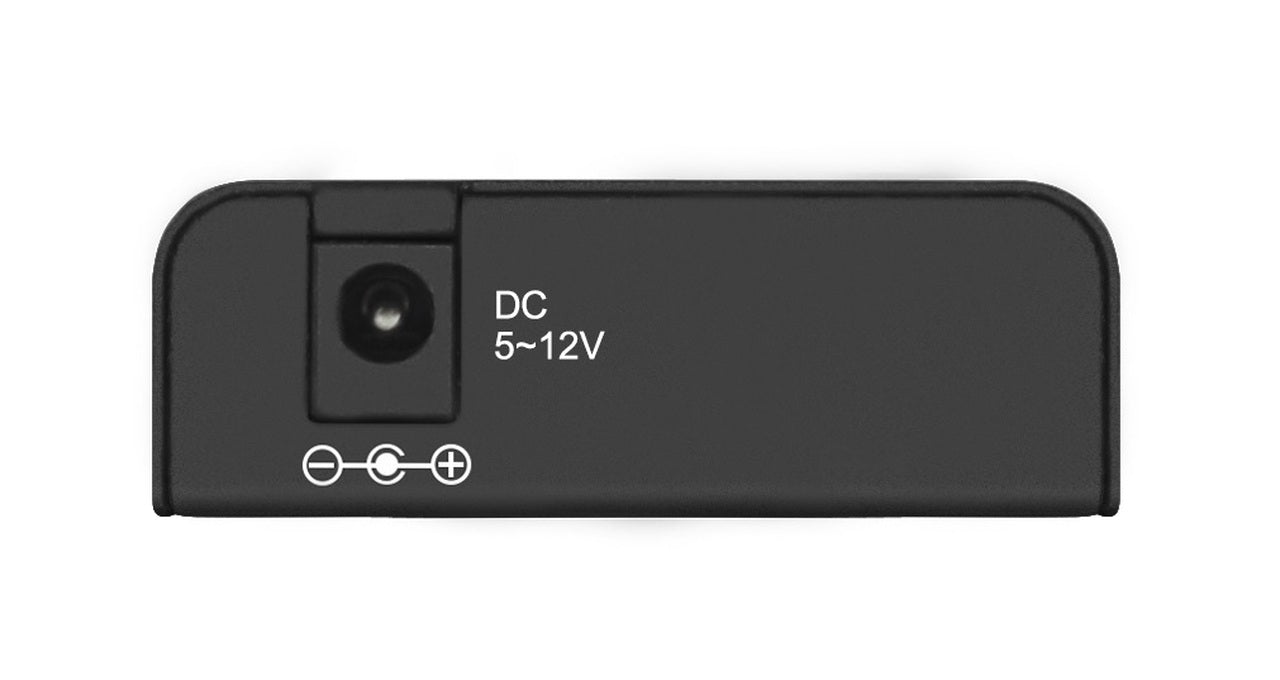

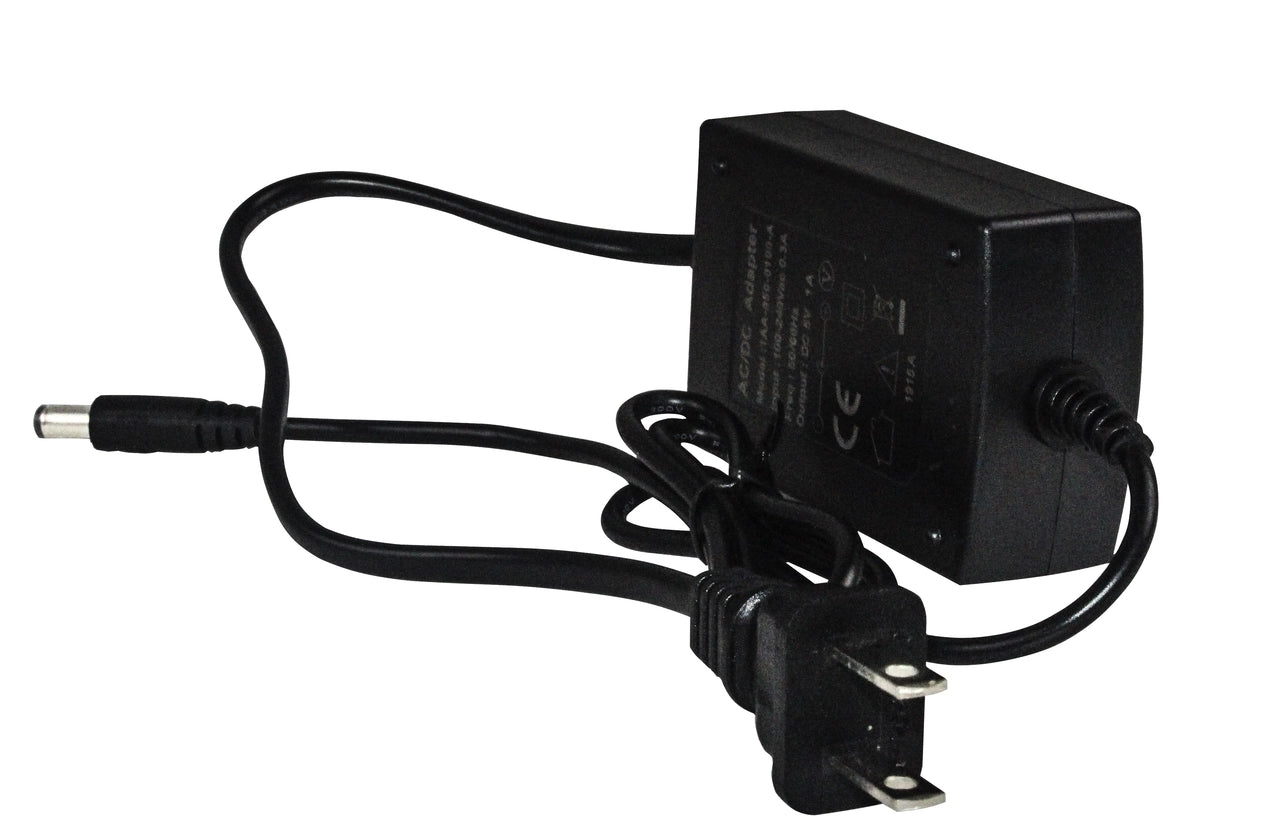

| Power: | External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug AC 90-240V power adapter is included in carton package |
| Temperature: | 0~50°C (Operating); -30~70°C (Storage) |
| Humidity: | 10-85% non condensing (Operating); 0-90% (Storage) |
| Consumption: | less than 4W |
| Dimensions(WxDxH): | 60mm x 90mm x 20mm |
| Weight: | 180g (without AC adapter) |
| Compliance: | FCC part 15, Subpart B, Class A, ANSI C63.4:2003 CE EN55022:2006, Class A EN55024:1998+A1:2001+A2:2003 LVD: EN 60 950-1:2001 |
| MTBF: | 65,000 hours |
