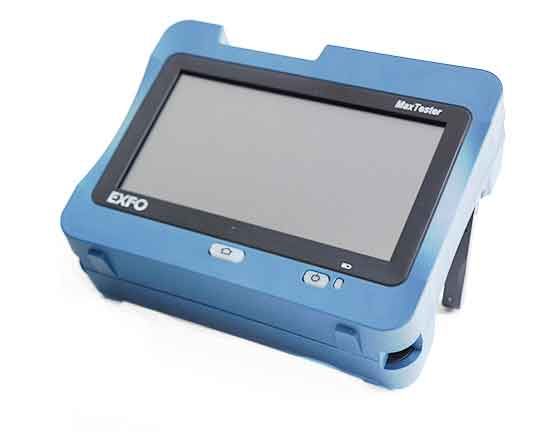

MAX945ICERTQ1QUADRFVFLEIEUI91EAEUI91 EXFO Optical Loss Test Set 850/1300/1310/1550nm MAX945 QUAD Automated Pair
Engineered for high-precision fiber certification, the EXFO MAX945 Quad is a dual-wavelength, all-in-one loss test and troubleshooting solution. Designed as a paired system, it covers multimode (850 nm, 1300 nm) and single-mode (1310 nm, 1550 nm) loss measurements with an integrated InGaAs power meter
It meets Tier‑1 international certification standards and Encircled Flux compliance for 50/125 µm multimode fiber. Powered by an internal lithium battery, the touchscreen 7″ (800×480 TFT) display delivers intuitive full-color test control.
Additional features include RF connectivity and a red-light VFL for visual traceability. Boasting 2 GB internal memory and a semi-rigid carry case, this paired quad certifier delivers complete, field-ready fiber certification in one rugged package.
📋 Technical Specifications
| Feature | Specification |
|---|---|
| Wavelengths | 850 nm & 1300 nm (multimode), 1310 nm & 1550 nm (single-mode) |
| Power Meter | InGaAs detector for precise optical loss measurements |
| Certification Compliance | Tier‑1 (international standards), Encircled Flux compliant for 50/125 µm MM |
| Automation Level | Fully automated test sequencing |
| Battery | Rechargeable lithium-ion internal battery |
| Display | 7″ color touchscreen TFT, 800×480 resolution |
| Trace Verification | Integrated red-light VFL for visual fiber tracing (Rx unit only) |
| Connectivity | RF-enabled for wireless data transfer |
| Memory | 2 GB internal storage for large test projects |
| Unit Configuration | Paired Quad loss test set – includes both Tx and Rx units |
| Connector Interface | SC/UPC (single-mode & multimode) |
| Carry Case | Semi-rigid case designed for one unit (plus accessory storage) |
| Language | English |
| Part Number | MAX945ICERTQ1QUADRFVFLEIEUI91EAEUI91 |
| Minimum Order Quantity | 1 set (pair of units) |
✔️ Key Benefits
-
Comprehensive Certification – End-to-end Quad-wavelength testing for both multimode and single-mode links.
-
Standards Assurance – Tier‑1 and Encircled Flux compliance guarantee official certification acceptance.
-
Automated Efficiency – Pre-programmed test routines enhance consistency and reduce test time.
-
Field Mobility – Lithium battery ensures uninterrupted testing in remote locations.
-
Intuitive Interface – Large touchscreen display simplifies navigation and result review.
-
Complete Logging – RF and 2 GB memory support extensive job documentation and reporting.
-
Trace & Analyze – VFL provides on-hand visual mapping without needing separate tools.
-
Ready-to-Go Package – Includes paired system, battery, display, memory, VFL, carry case—all in one kit.
🎯 Ideal Scenarios
-
Compliance-driven certification projects requiring both MM and SM testing
-
Contractors needing full-test automation across teams and sites
-
Jobs in remote or outdoor environments without grid power
-
Operations where fast, visual fault tracing is essential alongside loss measurements
✅ Highlight Features
-
Quad-Wavelength Coverage (850/1300/1310/1550 nm)
-
InGaAs Power Meter — High-accuracy loss readings
-
Tier‑1 & Encircled Flux Compliance
-
7″ Color Touchscreen with 800×480 TFT Display
-
Integrated VFL — Quick visual fiber path inspection
-
Built-in Lithium Battery & 2 GB Internal Storage
-
RF Connectivity for Wireless Data Export
-
Rugged Semi-Rigid Carry Case Included
