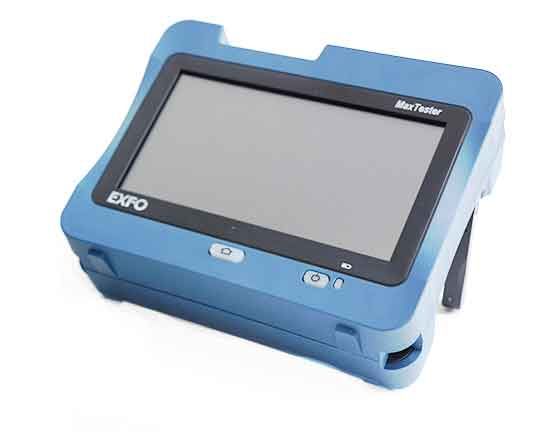

MAX945SM1EIEAEUI91VFLFP430BUPCFIPT400SCAKRFGP10098 EXFO Optical Loss Test Set 1310/1550nm MAX945SM1 VFL FIP430B Probe
The EXFO MAX945SM1 is a high-performance optical loss test set engineered for precision and ease in single-mode fiber testing. Covering the 1310 nm and 1550 nm wavelengths, and equipped with a Visual Fault Locator (VFL) and the FIP-430B USB fiber inspection probe, this all-in-one kit empowers technicians to ensure signal integrity and inspect connector cleanliness in the field.
The EI APC connector (with a swappable SC adapter) ensures low-reflection testing, while RF connectivity enables wireless result management. Packaged in a rugged semi-rigid MAX-900 carry case with a North American power cord, the MAX945SM1 is a complete, reliable toolkit for fiber professionals.
📋 Technical Specifications
| Feature | Specification |
|---|---|
| Wavelengths | 1310 nm, 1550 nm |
| Visual Fault Locator (VFL) | Red laser (≈650 nm) for quick fiber break/fault identification |
| Inspection Probe | FIP‑430B USB probe with fully automatic focus and pass/fail analysis |
| Connector Interfaces | APC EI connector with swappable SC adapter |
| Wireless Connectivity | RF support (Wi‑Fi + Bluetooth) for data export and synchronization |
| Carry Case | Semi-rigid MAX‑900 carry case for field durability |
| Power Cord | North American set |
| Interface Language | English |
| Part Number | MAX945SM1EIEAEUI91VFLFP430BUPCFIPT400SCAKRFGP10098 |
| Minimum Order | 1 unit |
✔️ Key Benefits
-
Dual-Wavelength Loss Testing – Ideal for verifying fiber attenuation at 1310 nm and 1550 nm, covering standard single-mode infrastructure.
-
Built-In Fault Localization – The VFL uses visible red light to highlight breaks and connectors.
-
Automated Connector Inspection – The FIP‑430B probe offers USB connectivity, autofocus, and pass/fail analysis to ensure clean connectors—no guesswork required.
-
Flexible Connector Support – Default APC EI connector with the option to swap in an SC adapter on the fly.
-
Wireless Productivity – Wi‑Fi and Bluetooth connectivity streamline data transfer to laptops, tablets, or centralized systems.
-
Rugged Field Package – The durable MAX‑900 carry case and AC power configuration make it ready for any test environment.
-
Complete Solution – Includes everything technicians need—test set, VFL, inspection tools, carry case, and power cord.
🎯 Target Use Cases
-
Telecommunication field techs conducting loss measurements and fault troubleshooting
-
Service providers requiring documented proof of fiber health and connector cleanliness
-
Teams with standardized workflows and centralized reporting systems
✅ Feature Highlights
-
Dual-wavelength optical loss testing (1310/1550 nm)
-
Integrated Visual Fault Locator for fast fiber trace and fault detection
-
USB-enabled FIP‑430B inspection probe with autofocus and pass/fail grading
-
Interchangeable APC and SC connectors for versatile deployment
-
Wireless result sync via Wi‑Fi/Bluetooth
-
Durable carry kit and essential accessories included
