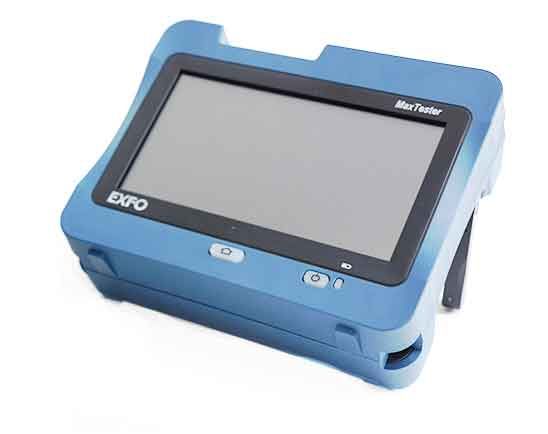

MAX945SM3EAEAEUI91VFLGP10098 EXFO MAX945SM3 Optical Loss Test Set, 1310/1550/1625nm, VFL
The EXFO MAX945SM3 VFL is your all-in-one optical loss tester and fault locator engineered for single-mode fiber networks. Featuring tri-wavelength loss testing at 1310 nm, 1550 nm, and 1625 nm—including in-service (live fiber) capability—this tester also integrates a bright red laser Visual Fault Locator (VFL) for rapid fiber fault tracing and break detection.
With an APC connector and quick-swap SC adapter, it handles diverse connector types, while its rugged design—complete with a MAX‑900 semi‑rigid carry case and North American power cord—makes it ideal for field deployments. Plus, a solid 3-year basic warranty on the tester ensures dependable long-term use.
📋 Technical Specifications
| Specification | Details |
|---|---|
| Wavelengths | 1310 nm, 1550 nm, and 1625 nm – supports standard and live-fiber testing |
| Visual Fault Locator | Built-in VFL (≈650 nm, visible red laser) for fiber tracing and fault detection |
| Connector Interfaces | APC EA connector, swappable SC adapter |
| Wireless Capability | RF-enabled design (supports optional Wi‑Fi/Bluetooth integration) |
| Power Supply | Includes North American cord set |
| Carry Case | MAX‑900 semi-rigid field-grade case |
| Interface Language | English |
| Warranty | 3-year basic warranty on the tester only |
| Part Number | MAX945SM3EAEAEUI91VFLGP10098 |
| Minimum Order Quantity | 1 unit |
✔️ Key Benefits
-
All-In-One Testing & Fault Locating – Combines complete optical loss testing at 1310/1550/1625 nm with a VFL for lightning-fast fault identification.
-
Live-Fiber Testing – The 1625 nm wavelength enables safe, in-service fiber inspections without disrupting operation.
-
Connector Flexibility – Equipped with APC and a swappable SC adapter for deployment flexibility.
-
Field-Proven Durability – Rugged carry case and reliable power setup make it ideal for job-site environments.
-
Extended Warranty – Enjoy peace of mind with a 3-year basic warranty covering the tester.
-
Future-Ready Connectivity – RF-enabled architecture lets you add wireless features (Wi‑Fi/Bluetooth) later.
🎯 Ideal Use Cases
-
Field technicians testing single-mode fiber links, including live-fiber segments
-
Network teams performing both loss measurements and visual inspections
-
Service providers who need reliable, warranty-backed tools for field operations
✅ Feature Highlights
-
Triple-Wavelength Testing (1310/1550/1625 nm)
-
Integrated VFL for quick fault tracing
-
Live-Fiber Safe – Test “in-service” fibers at 1625 nm
-
Swappable Adapter System – APC to SC transitions made easy
-
Rugged Field Kit – Semi-rigid carry case and AC cord included
-
3-Year Core Warranty – Added value and peace of mind
-
RF-Ready Design – Future integration with wireless tech
