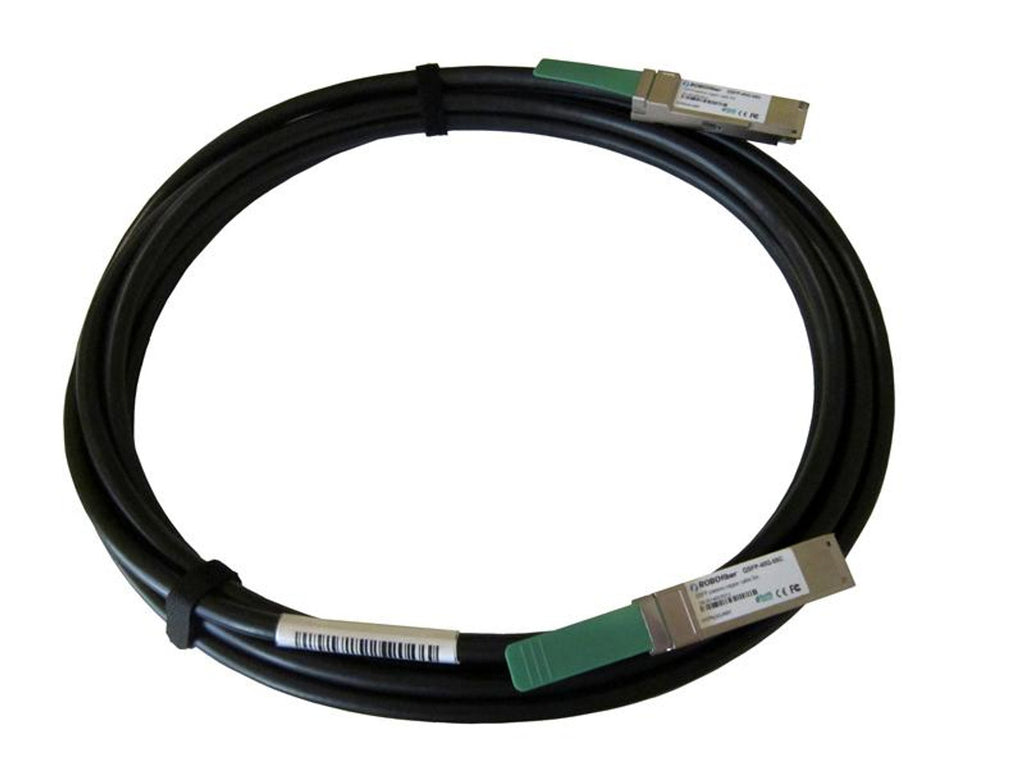

QSFP-40G-05C - QSFP+ 40G passive copper DAC direct attach cable 5m length

Mooseline Part No.: QSFP-40G-05C

  • $ 110.00 or



Product description
The QSFP-40G-05C is a passive copper direct attach cable with QSFP+ connectors and has 5m length.

Cable provides short distance (same shelf) inexpensive connectivity at up to 40G rates. It operates 4 independent 10G channels using the QSFP connector footprint. Each of the four channels can operate at multi-rate speeds Gigabit to 10G (1.0Gbps to 10.3125Gbps).


Cable has been tested and found compatible with most major brand networking vendors (including Cisco, Juniper and Edge-Core TOR switches).

The 40G Direct Attach cables can be used in a wide variety of applications such as:

  • High capacity I/O in Storage Area Networks, Network Attached Storage, and Storage Servers
  • Switched fabric I/O such as ultra high bandwidth switches and routers 10G/40G Ethernet
  • Data center cabling infrastructure
  • High density connections between networking equipment

QSFP-40G-01C 40G direct attach copper cable specifications
Connectors QSFP+ 38pin footprint
Cable length 5m
Connect speed multi-speed up to 40Gbps (Gigabit compatible)
Cable type 4 pair twinax
Operation passive
