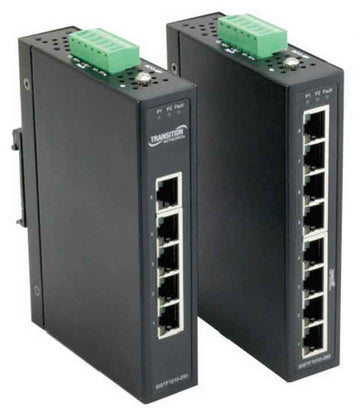

(5) 10/100 Base-TX RJ45 Switch -40 To 75 C Operating Temp

Transition Networks Part No.: SISTF1010-250-LRT

  • $ 423.75 or



Specifications:

Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Data Transfer Rate Copper:10/100Mbps, 14,880 pps / 148,800 pps
Filtering Addresses 2K MAC Address Table
Backplane -250 model:1.0Gbps
-280 model:1.6Gbps
Status LEDs PWR 1 (Power):ON = primary power connected
PWR 2 (Power):ON = backup power connected
FAULT, per port:LNK/ACT, FDX/COL
Dimensions Width:1.2" [30 mm]
Depth:3.7" [95 mm]
Height:5.5" [140 mm]
Ingress Protection IP 30
Input Power 12 - 48 VDC; redundant power with
reverse polarity protection and
removable terminal block
Overload Current Protection Present
Power Consumption -250 models:2.93 Watts
-280 models:4.71 Watts
Environment -40 to +75°C Ext. operating temp.
5% 95% humidity non-condensing
0 10,000 ft. altitude
-40 to +85°C storage temp.
Shipping Weight 1.4 lbs. [0.64 kg]
Safety Compliance UL, cUL, CE/EN60950-1
UL Class 1 Div 2 for hazardous environments
EMI Compliance CISPR22/EN55022; EN60950 Class A; FCC Class A;
CE Mark;CE EN61000-4-2; CE EN61000-4-3; CE EN-
61000-4-4; CE EN61000- 4-5; CE EN61000-4-6; CE
EN61000-4-8; CE EN61000-4-11; CE EN61000-4-12;
CE EN61000-6-2; CE EN61000-6-4
Environmental Compliance IEC60068-2-32 (Free fall); IEC60068-2-27 (Shock);
IEC60068-2-6 (Vibration); IEC60068-2-3,
IEC60068-2-30, IEC60068-2-31

Product Sheet:
