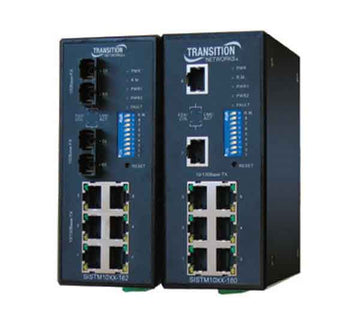

(6) 10/100 Managed Industrial Switches (extended temperature), MM, SC, 2KM

Transition Networks Part No.: SISTM1013-162-LRT

  • $ 1,868.26 or



Specifications:

Standards IEEE Std. 802.3, 802.1p,802.1Q,
802.3u, 802.1d, 802.1w, 802.3x
Fiber Optic Connector Specs
Multimode Min TX PWR: -19.0 dBm
Max TX PWR: -14.0 dBm
RX Sensitivity: -30.0 dBm
Max In PWR: -14.0 dBm
Link Budget: 11.00 dB
Status LEDs PWR (Power):ON = power connected
R.M.:ON = Device is the Master in the
redundant ring network
PWR 1 (Power):ON = primary power
connected
PWR 2 (Power):ON = backup power
connected
Fault:ON = Fault on port link or loss of PWR
1 or PWR 2
LNK/ACT (Fiber):ON = Link on fiber
100Mb/s; Flashing = data transmitting
FDX/COL (Fiber):ON = Full duplex link on
fiber; Flashing = collisions occuring
Data Transfer Rate 10BASE-T:14,880 pps
100BASE-TX:148,800 pps
MAC Addresses 2K
Max Packet Size 1536 bytes
Data Memory Buffer 1Mb
Backplane 2.0 Gbps
SNMP MIB RFC 1213 MIBII, RFC 1493 Bridge MIB,RMON RFC 1757, RFC 2674 VLAN MIB, RFC 1643 Ethernet like MIB, RFC 1215 Trap MIB
Dimensions Width: 2.1" [54 mm]
Depth: 4.1" [105 mm]
Height: 5.3" [135 mm]
Ingress Protection IP 31
Input Power 12 to 48 VDC, 0.2A, redundant inputs with reverse polarity protection; Additional barrel connector cable
Power Consumption -180 Models:4.6 watts
-162 Models:6.0 watts
Environment 0 to +60°C Std. operating temp.
-40 to +75°C Ext. operating temp.
-40 to +85°C storage temp.
5 95% humidity non-condensing
0 10,000 feet altitude
Shipping Weight 2 lbs. [0.90 kg]
Safety Compliance UL 60950; cUL60950
EMI Compliance CISPR22/EN55022; EN60950 Class A; FCC Class A; CE Mark; EN61000-4-2; EN61000-4-3; EN61000-4-4; EN61000-4-5; EN61000-4-6
Environmental Compliance IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)

Product Sheet:
