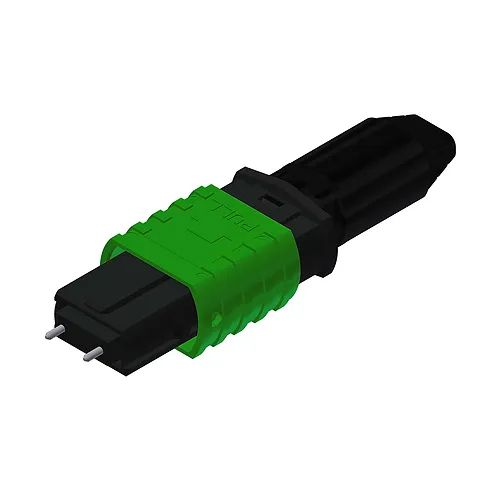

Sumitomo Lynx3 MPO 12-Fiber Multimode OM3 Splice-On Connectors provide the industry’s first field-installable MPO fusion splice-on solution for fast, reliable, and fully customizable on-site terminations. Designed for 3.0mm round cord, the female MPO connector eliminates excess slack, repair lag, and logistical delays of pre-terminated cables while reducing labor and material costs. With color-coded housing, customizable field polarity management, and compliance with EIA/TIA-604-5, FOCIS 5, and IEC-61754-7 standards, the Lynx3 MPO is MTP® compatible and engineered for high-density applications across data centers, enterprise networks, OEM, FTTx, and outside plant environments.

Key Benefits

• Industry’s first MPO field-installable splice-on connector

• Exact-length, on-site terminations reduce cost and installation delays

• Female connector design with color-coded housing

• Supports 3.0mm round cord and high-density applications

• Customizable field polarity management for flexible deployments

• MTP® compatible for seamless integration

• Standards compliant: EIA/TIA-604-5, FOCIS 5, IEC-61754-7

Specifications

• SKU: LYNX2MPO12FMM03RC3.0

• Fiber Type: Multimode OM3, 12 Fiber MPO

• Connector Style: MPO, Female

• Cable Compatibility: 3.0mm round cord

• Compliance: EIA/TIA-604-5, FOCIS 5, IEC-61754-7

• Application: Data centers, enterprise networks, FTTx, OEM, outside plant
