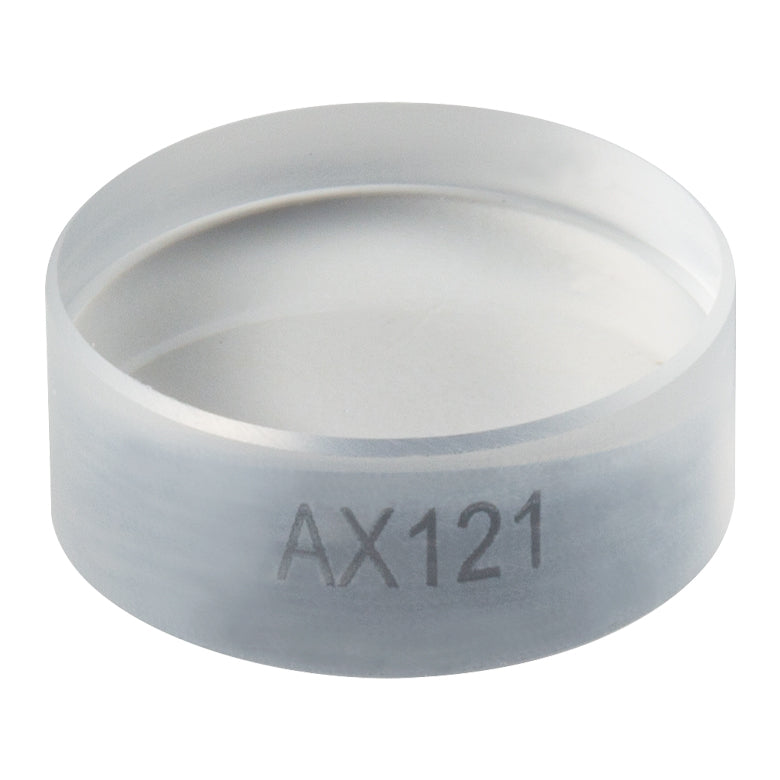

T-AX121 - 1.0°, Uncoated UVFS, Ø1/2" (Ø12.7 mm) Axicon
T-AX121 - 1.0°, Uncoated UVFS, Ø1/2" (Ø12.7 mm) Axicon
Features
- 1/2" and 1" Diameters Available
- Physical Angles Available: 0.5°, 1.0°, 2.0°, 5.0°, 10.0°, 20.0°, and 40.0°
- Offered Uncoated or With an AR Coating
Applications
- Laser Drilling/Optical Trepanning
- Optical Trapping
- Optical Coherence Tomography (OCT)
- Corneal Surgery
- Telescopes
- Diameter 1.0°
- Deflection Angle (ß) 0.5°
- Center Thickness (tc) 5.1 mm
- Wavelength Range 185 nm - 2.1 µm
- Transmission Curve
- Reference Drawing
| Common Specifications | |
|---|---|
| Substrate Material | UV Fused Silica |
| Diameter | 1/2" (12.7 mm) or 1" (25.4 mm) |
| Diameter Tolerance | +0.0 / -0.1 mm |
| Apex Rounding Diameter (S1) | <1.5 mm |
| Surface Quality (S1, S2) | 40-20 Scratch-Dig |
| Surface Flatness (S2) | <λ/10 at 633 nm |
| Surface Deviation (RMS) (S1) | <0.05 µm |
| Surface Roughness (RMS) (S1) | <6 Å |
| Clear Aperture (S1, S2) | >90% of Diameter |
| Edge Thickness | 5.0 mm |
| Edge Thickness Tolerance | +0.1/-0.0 mm |
| Center Thickness Tolerance | +0.1/-0.0 mm |
| Angular Tolerance | ±0.01° |
