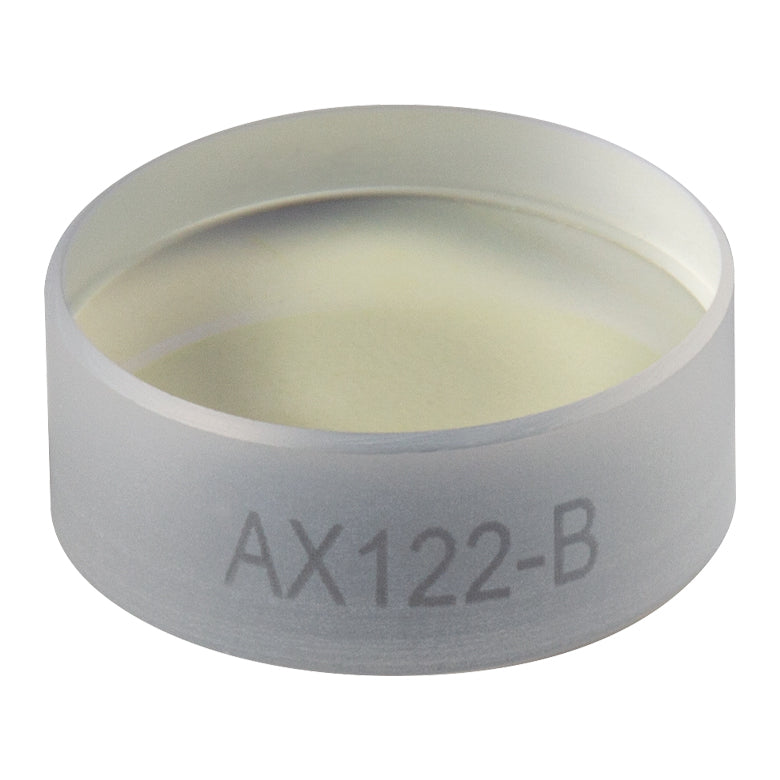

T-AX122-B - 2.0°, 650 - 1050 nm, AR Coated UVFS, Ø1/2" (Ø12.7 mm) Axicon

Product Drawing

These axicons are AR coated for the 650-1050 nm range making them suitable for many near IR (NIR) applications, such as optical traps and corneal surgeries.

Diameter Ø1/2" (Ø12.7 mm)

Physical Angle (α) 2.0°

Deflection Angle (β) 0.9°

Center Thickness (t_c) 5.2 mm

AR Coating 650 - 1050 nm R_avg<0.5%

AR Coating Plot

Reference Drawing
